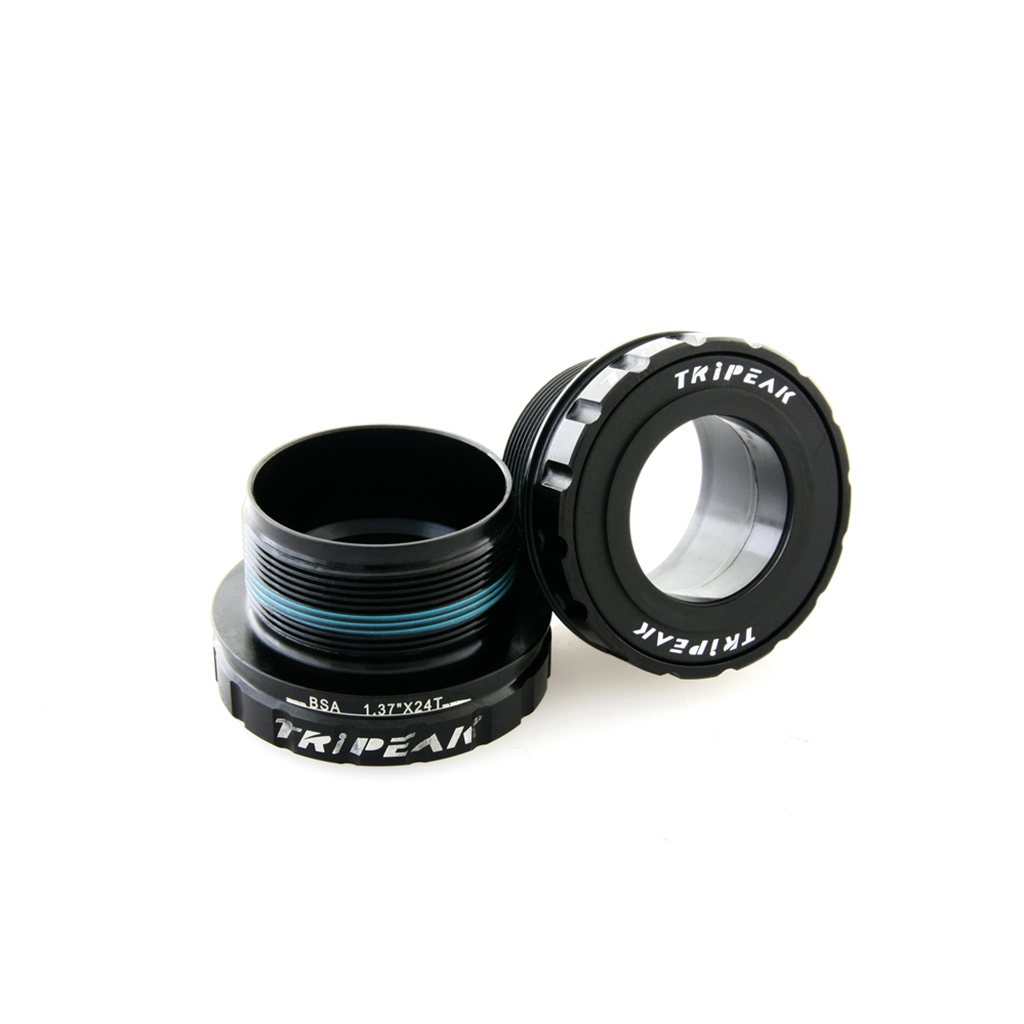

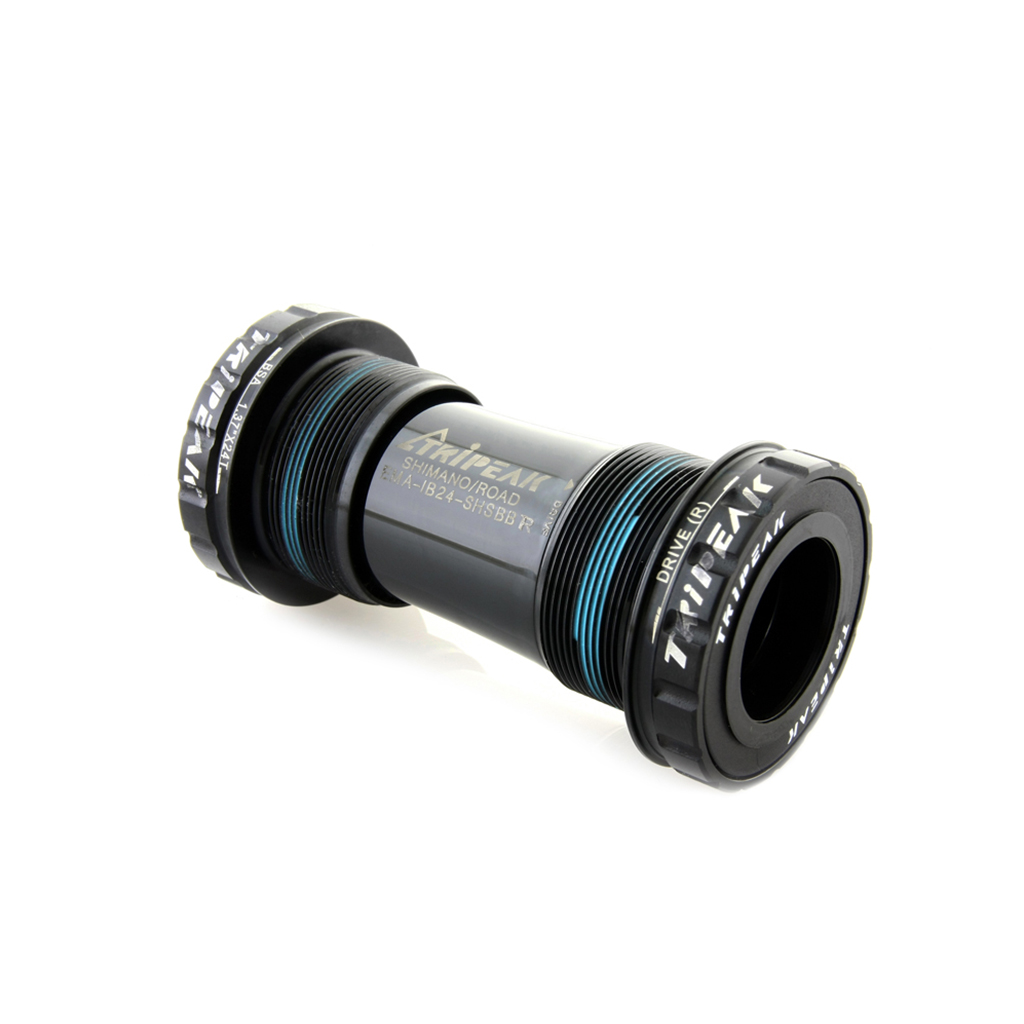

TRIPEAK - Bottom Bracket  - Threaded - For Shimano Hollowtech II - 68mm shell width

This Tripeak Bottom Bracket is BSA threaded and recommended for Ultegra, 105, GRX, FC-CX70 and other Hollowtech II compatible cranks with 24 mm axle. Bottom bracket shells with BSA thread are 68 mm wide. Suitable for frames with (B.C.1.37" x 24T) English thread.

Features-

• Spindle Interface Type: Hollowtech II (24mm Dia)
• Application: Road, Cyclocross, City, Gravel
• Type: BSA (Threaded, English)
• 16 Notch Standard BB Tool
• Shell Width: 68 mm
• Bearings: P05 Steel Bearing
• Itemcode: EMA-IB24-SHSBBR
• BB Colour: Black
• Weight: 101 gm
• Made in Taiwan

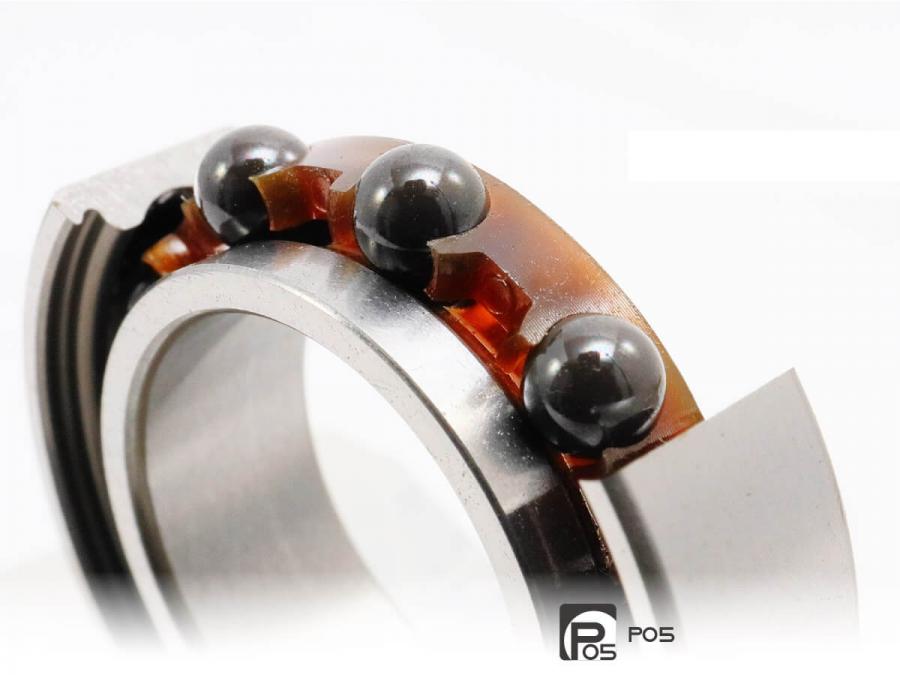

The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.

Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.

Specifications:

• Type: Road Bike
• Frame Specs: BSA 1.37''
• Dia: 34.8mm x Width 68mm
• Crank Specs: Shimano HTII (dia.24mm)
• Bearing: P05 Steel Bearing
• Tool: Notch 16T, OD 44mm
• Material: Alloy 6061 (Cup), Plastic (Sleeve)
• Colour: Black
• Weight: 101g/set
