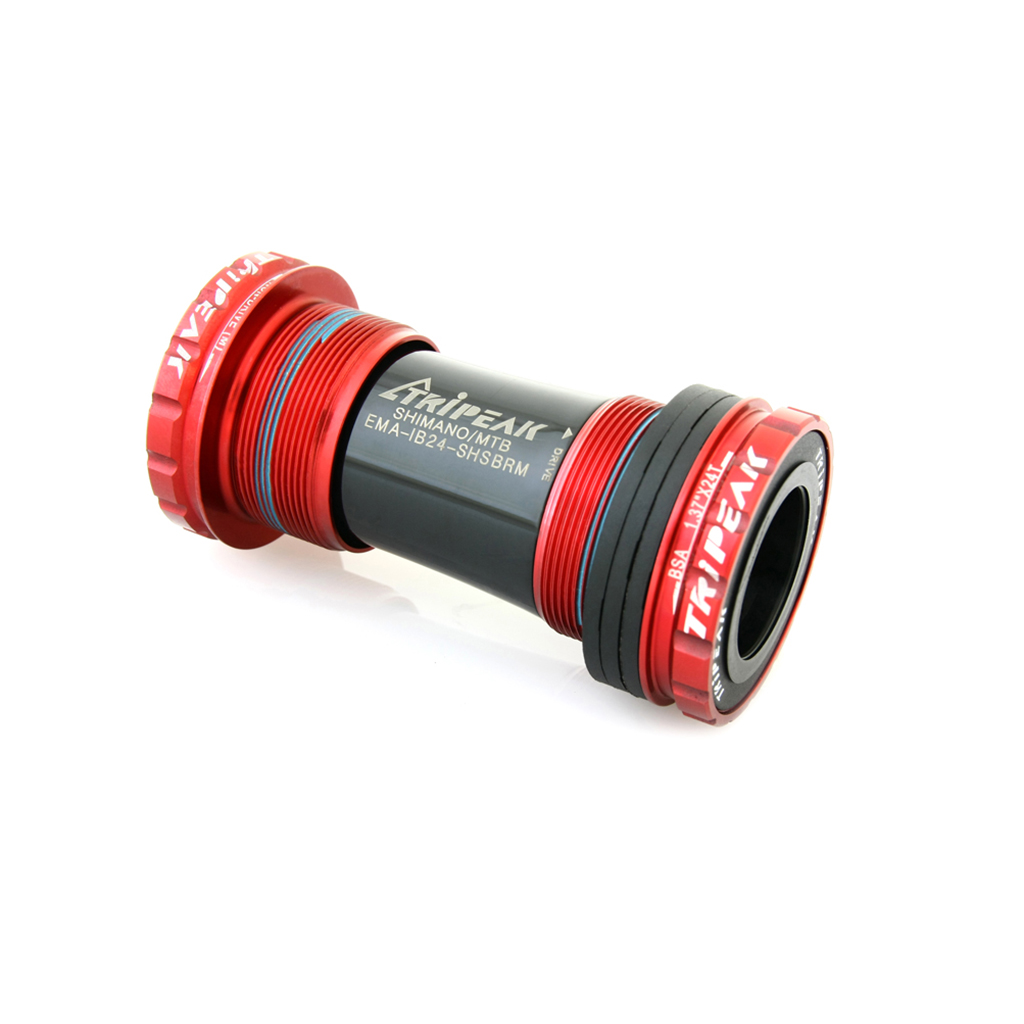

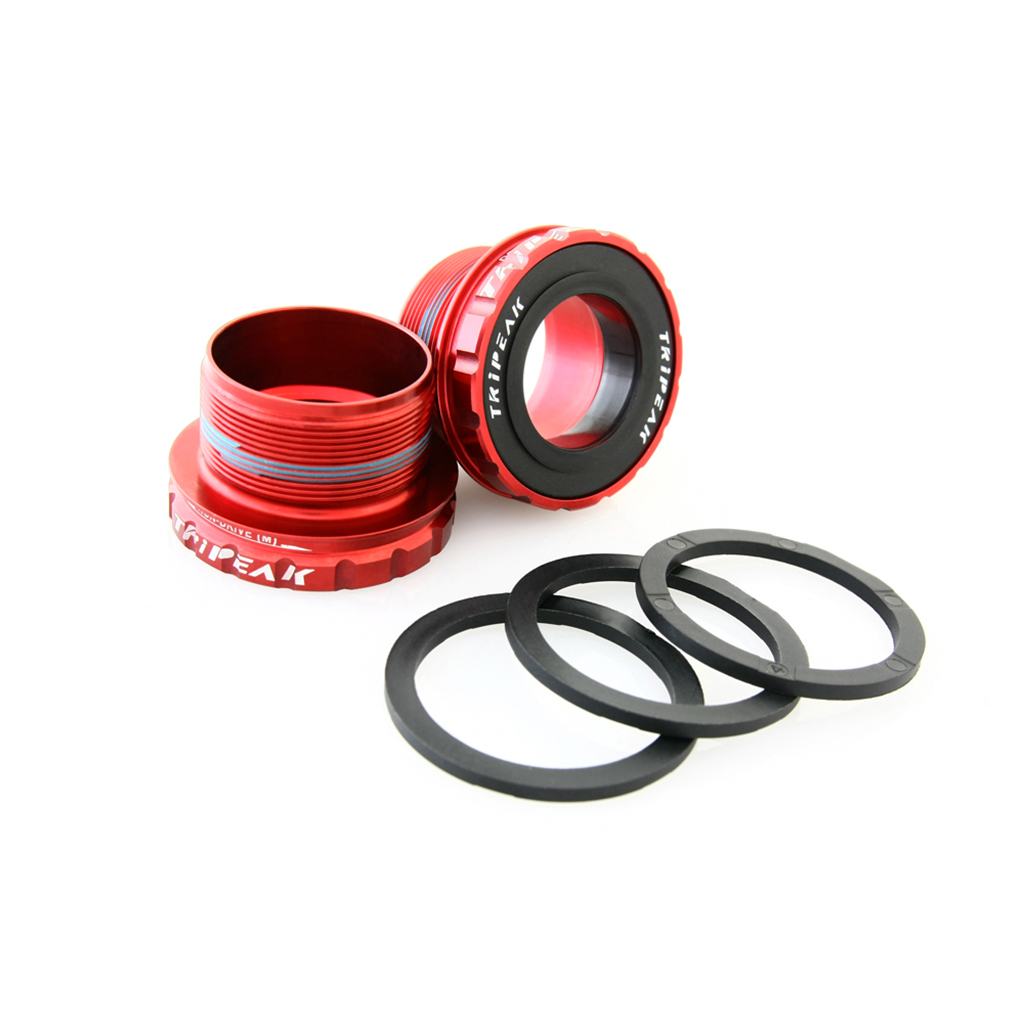

TRIPEAK - Bottom Bracket  - Threaded - For Shimano Hollowtech II - 73mm shell width

This Tripeak Bottom Bracket  is a popular Shimano compatible bottom bracket. Its 24 mm Hollowtech II standard bearings deliver an optimal stiffness-to-weight ratio and rotational efficiency. Bottom bracket shells with BSA thread are 73 mm wide. Suitable for frames with (B.C.1.37" x 24T) English thread.

Features-

• Spindle Interface Type: Hollowtech II (24mm Dia)
• Application: All Mountain, City & Touring, Enduro, Downhill
• Type: BSA (Threaded, English)
• Finish: Aluminium 6061-T6 CNC machined
• 16 Notch Standard BB Tool
• Shell Width: 73 mm
• Bearings: P05 Steel Bearing
• Itemcode: EMA-IB24-SHSBRM
• BB Colour: Red
• Weight: 98 gm
• Made in Taiwan

The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.

Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.

Specifications:

• Type: Mountain Bike
• Frame Specs: BSA 1.37''
• Dia: 34.8mm x Width 73mm
• Crank Specs: Shimano HTII (dia.24mm)
• Bearing: P05 Steel Bearing
• Tool: Notch 16T, OD 44mmm
• Material: Cup (Alloy 6061), Sleeve (Plastic)
• Colour: Red
• Weight: 98g/set
