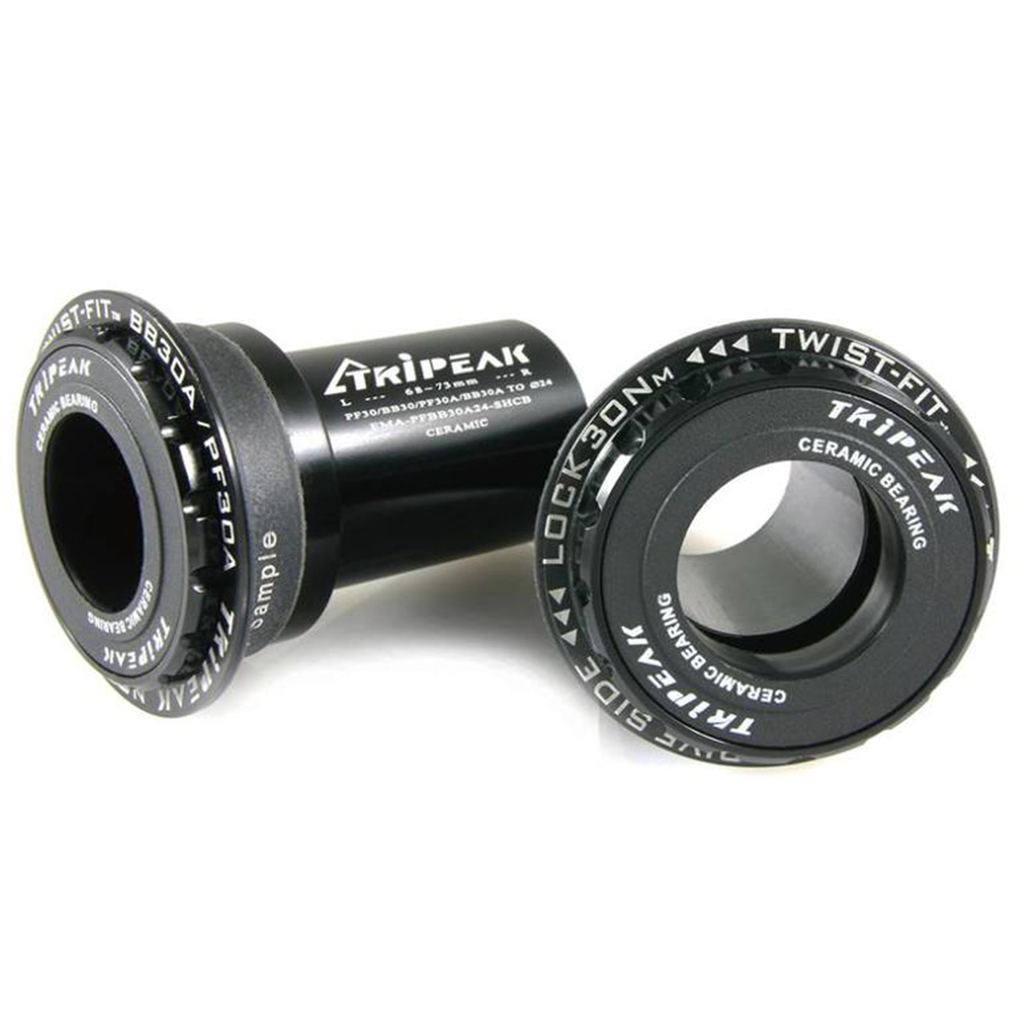

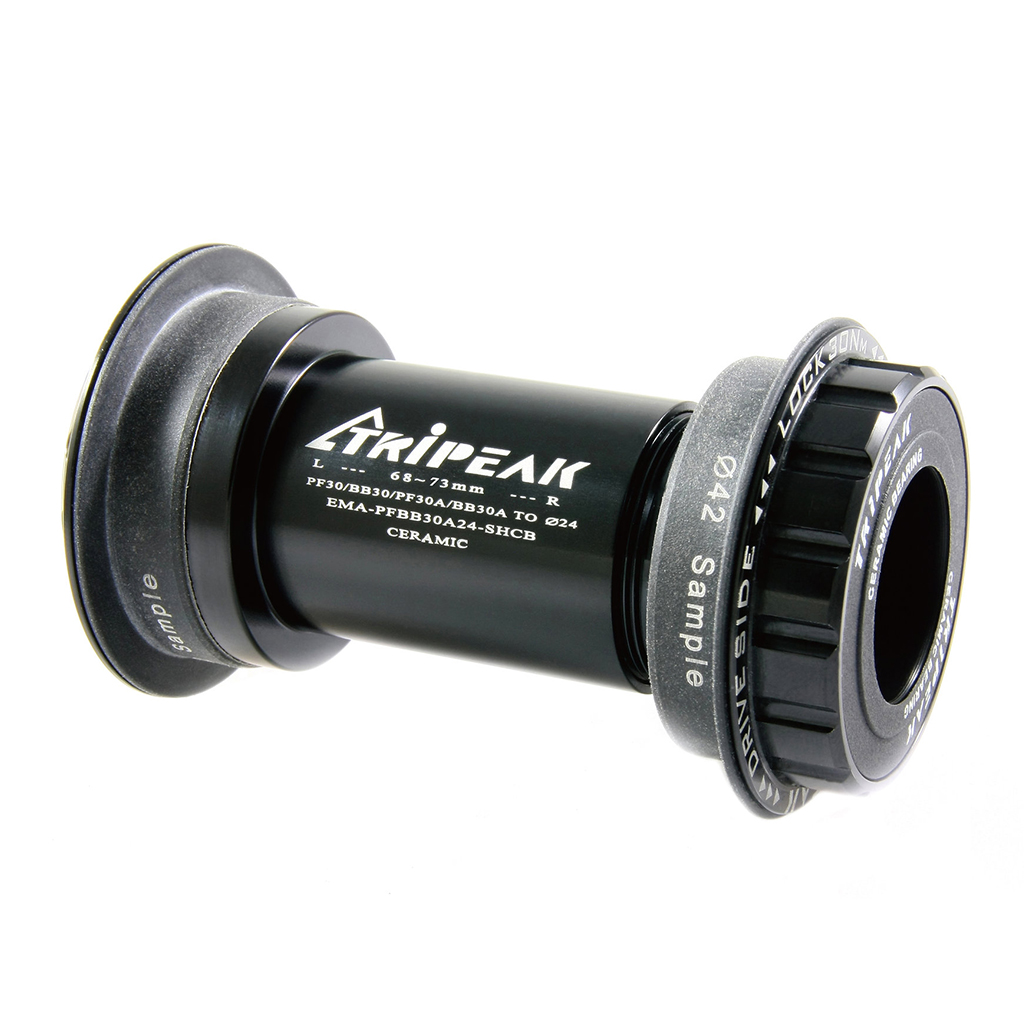

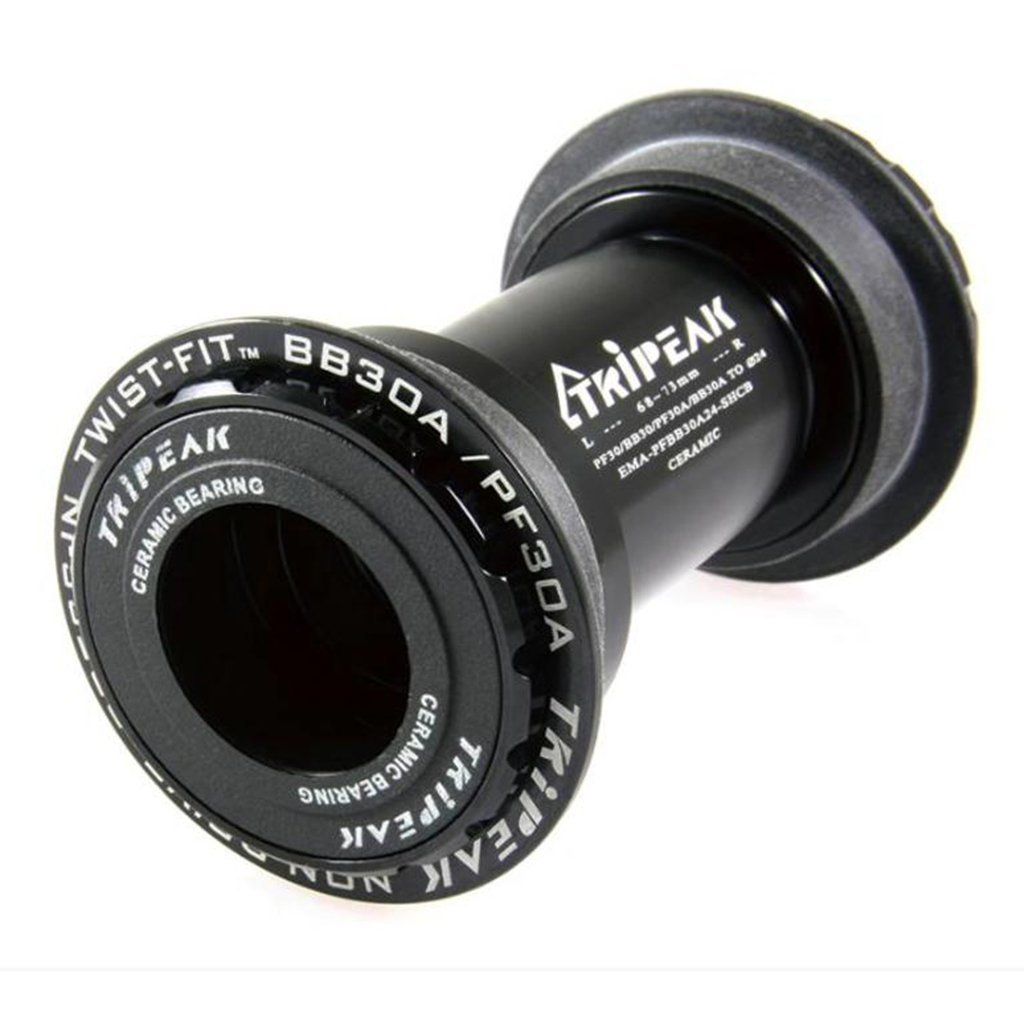

TRIPEAK - 4-in-1 Pressfit Bottom Bracket - For BB30 / BB30A / PF30 / PF30A - Ceramic - For Shimano Hollowtech II (24mm Spindle) - 68~73mm shell width

Tripeak 4-in-1 Bottom Bracket for BB30/BB30A/PF30/PF30A for Shimano(24mm) Crankset. Twist Fit enables you to run Shimano 24mm cranks in a BB30, BB30A, PF30 or PF30A frame. It's available with two bearing options either Steel or Ceramic.

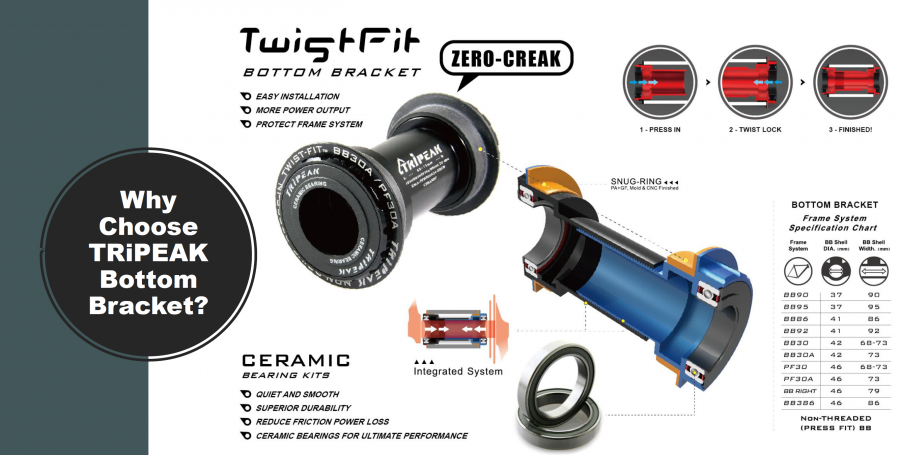

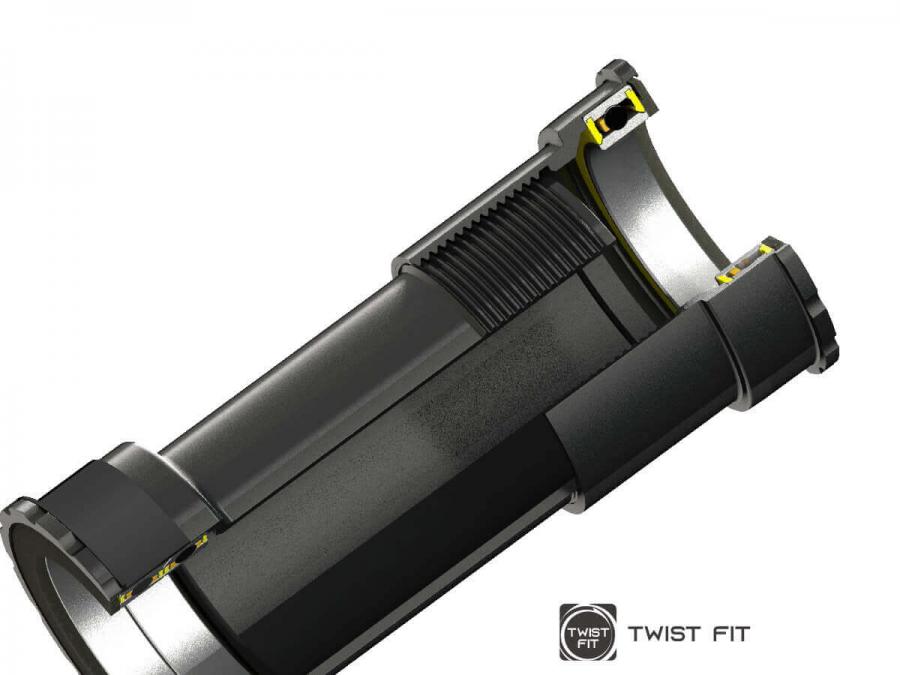

The Twist-Fit design accomodates press-fit BB specificied frames, making the BB installation and removal easier. Dual-sided locking enhances the precision of the spindle and avoids creaking noises, by achieving a perfect alignment between the bottom bracket and the crankset spindle.

Features-

• Spindle Interface Type: Hollowtech II (24mm Dia)
• Application: Road (68mm) / MTB (73mm)
• Type: Twist Fit
• Zero-Creak guaranteed
• Finish: Aluminium 6061-T6 CNC machined
• BB ID: 42mm~46mm
• Shell Width: 68mm~73mm
• Bearings: Ceramic
• Itemcode: EMA-PFBB30A24-SHCB
• Colour: Black
• Made in Taiwan

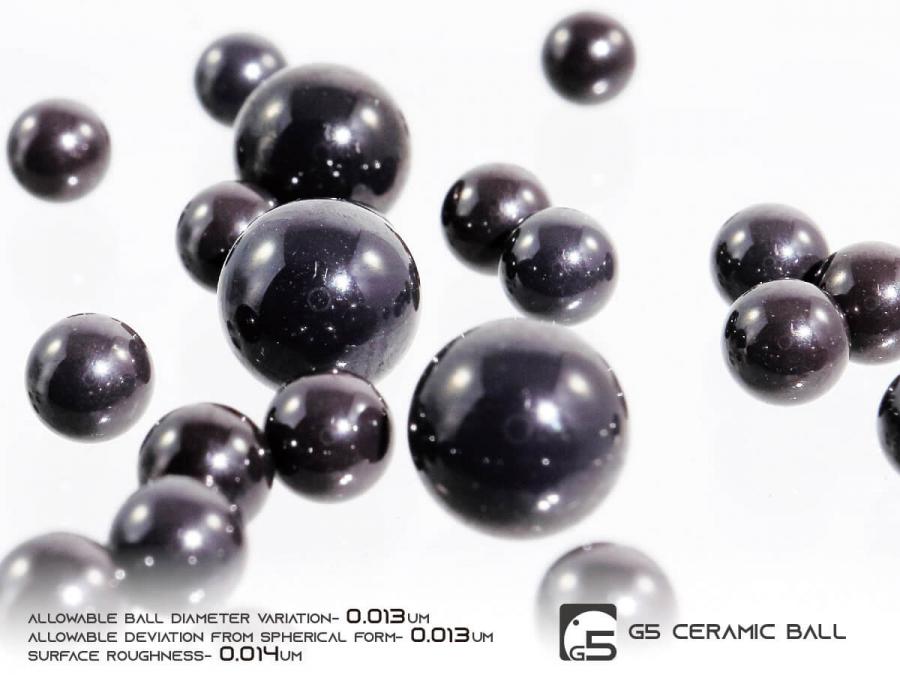

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.

Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.

The Twist-Fit design accomodates press-fit BB specificied frames, making the BB installation and removal easier. Dual-sided locking enhances the precision of the spindle and avoids creaking noises, by achieving a perfect alignment between the bottom bracket and the crankset spindle.

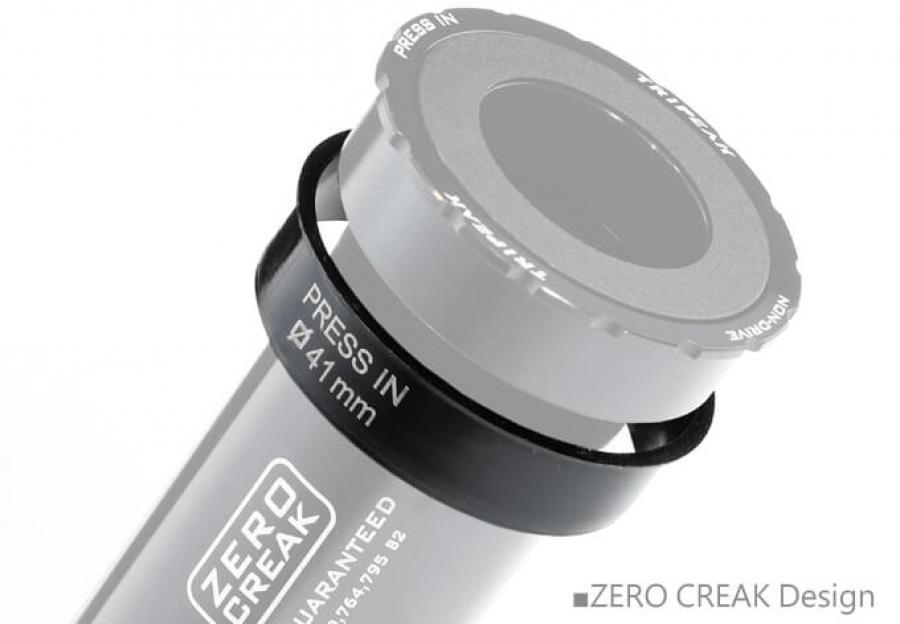

The patented plastic-steel bushing design is a big relief for Press-Fit frame BB users. It prevents wear on the frame's bottom bracket shell when the BB is pressed in. Snug Fit effectively eliminates noise and corrects bottom bracket tolerances.

Features-

• Spindle Interface Type: Hollowtech II (24mm Dia)
• Application: Road (68mm) / MTB (73mm)
• Type: Twist Fit
• Zero-Creak guaranteed
• Finish: Aluminium 6061-T6 CNC machined
• BB ID: 42mm~46mm
• Shell Width: 68mm~73mm
• Bearings: Ceramic
• Itemcode: EMA-PFBB30A24-SHCB
• Colour: Black
• Made in Taiwan

Advantages of Ceramic Bearing

• A well-made ceramic bearing will roll faster, saving you energy and allowing faster cruising speeds compared to an equivalent steel bearing.
• Ceramic bearings are more corrosion-resistant, harder, and last longer in everyday use.
• Ceramic balls have an exceptional ability to retain their “true” spherical shape under load. This creates the conditions for ceramic-equipped components to have an exceptionally long and smooth running life.
• A good quality ceramic bearing can easily last five times longer than steel and they don’t rust.
