TreeFrog Pro 1 Bike Rack (For Road Bike/MTB)

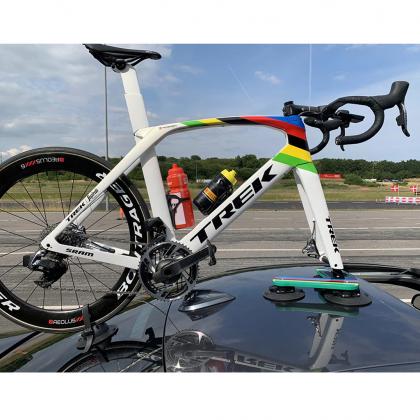

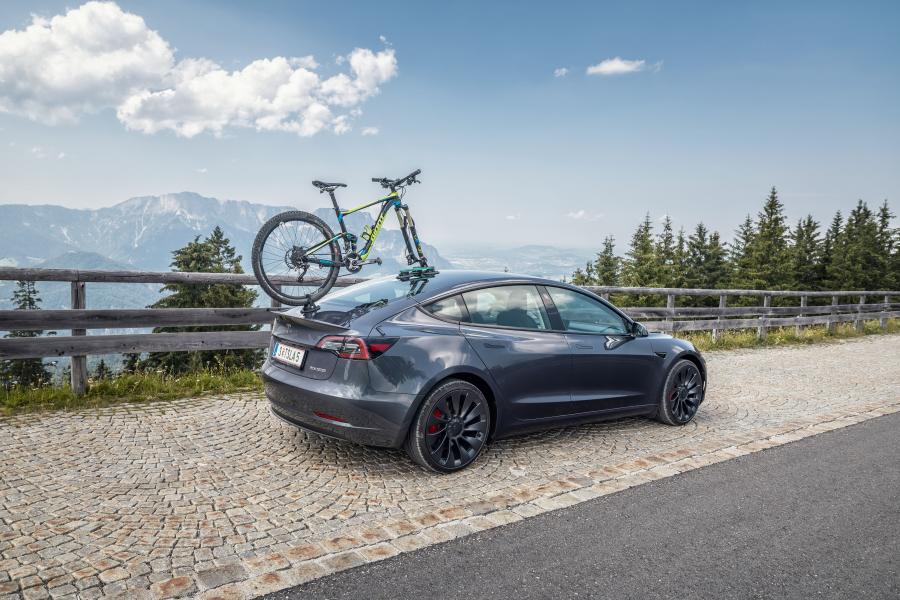

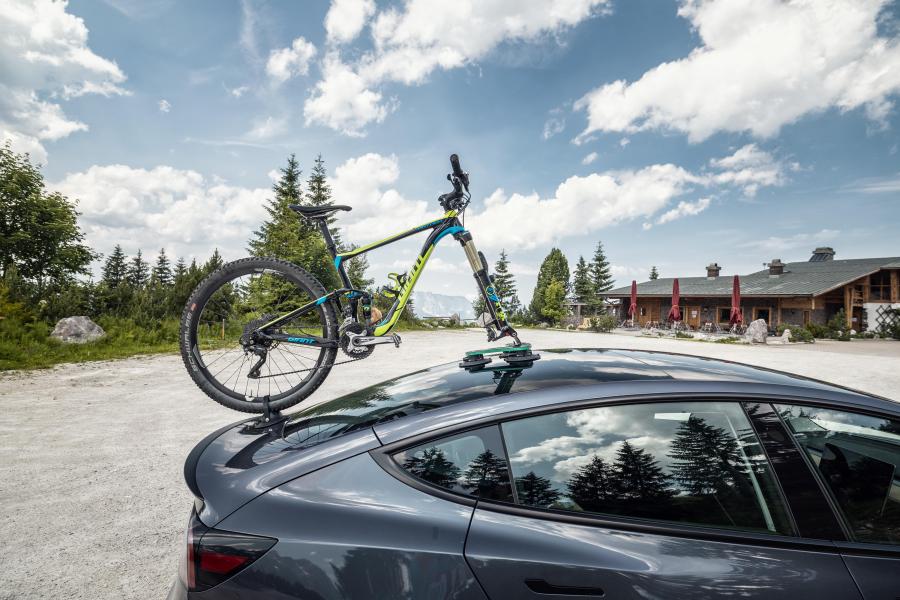

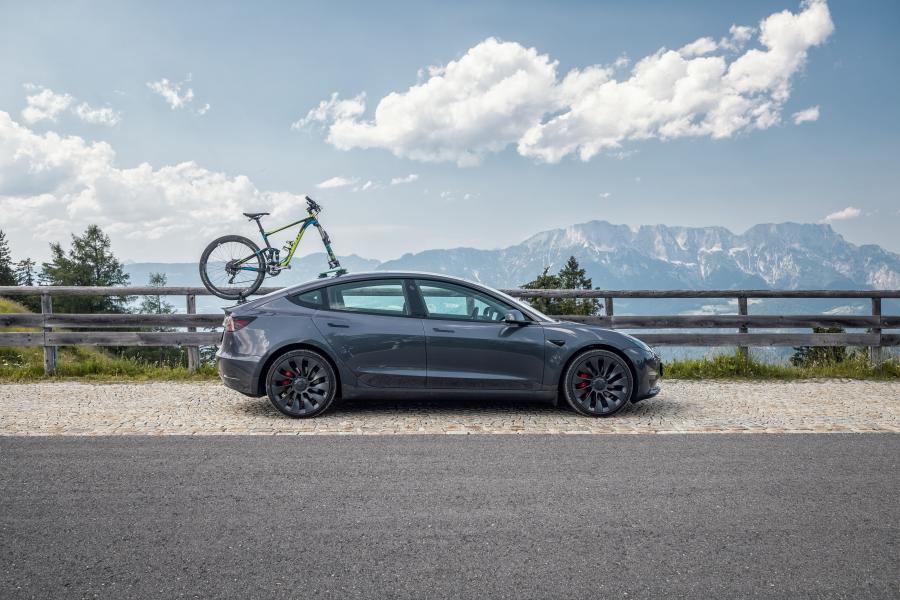

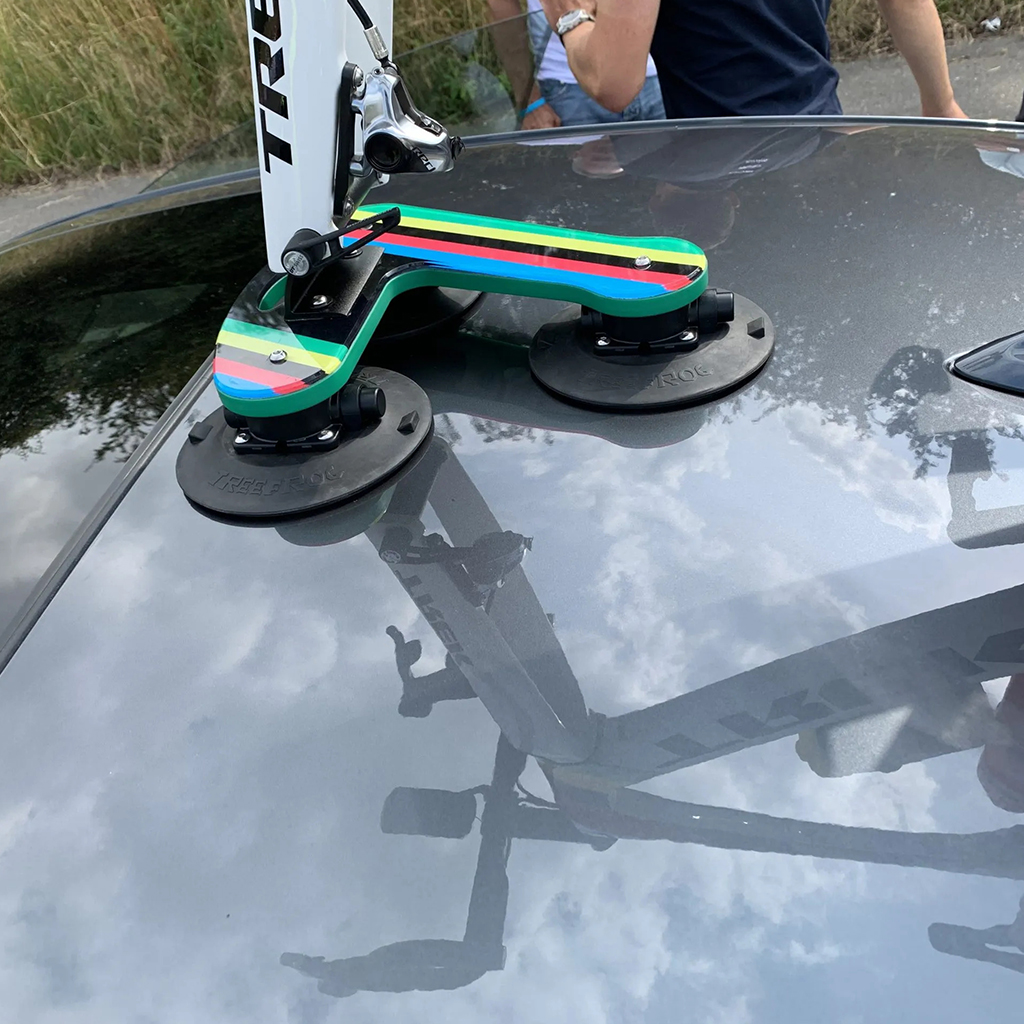

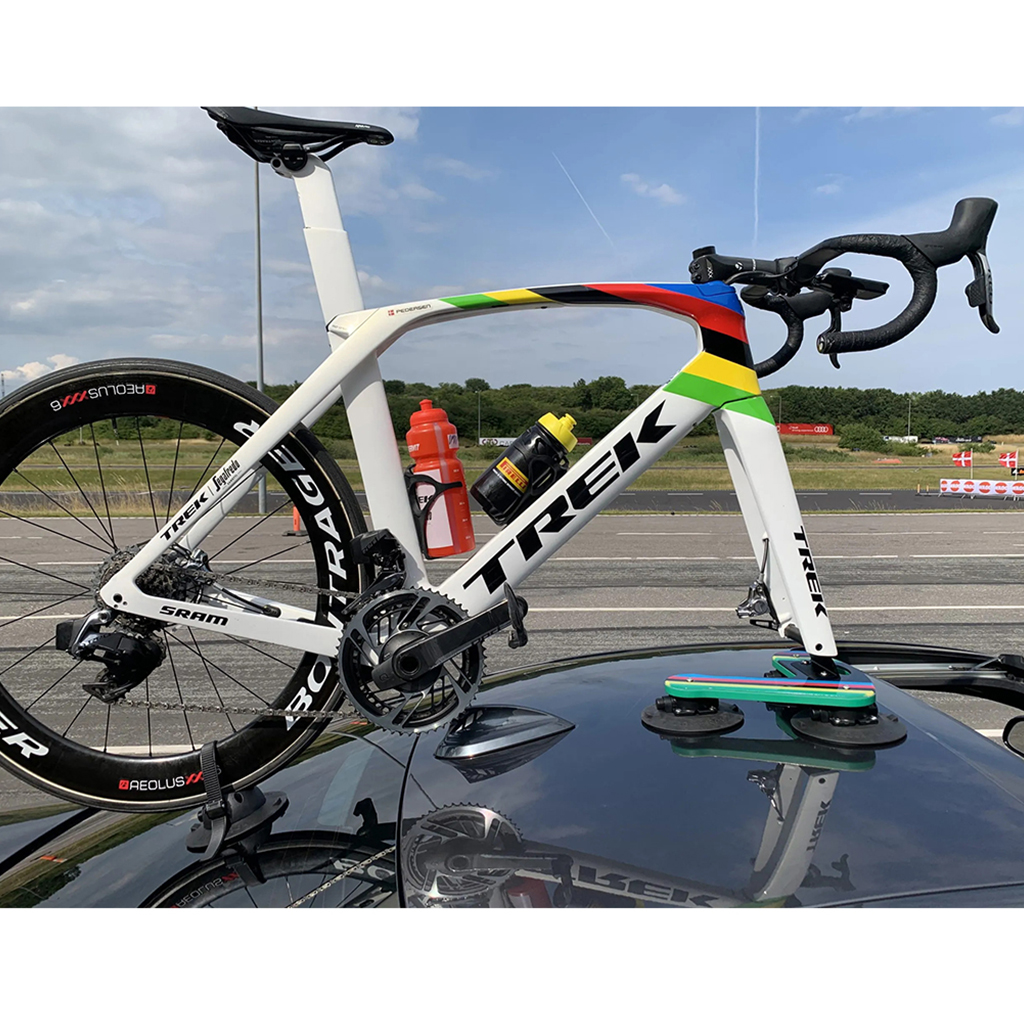

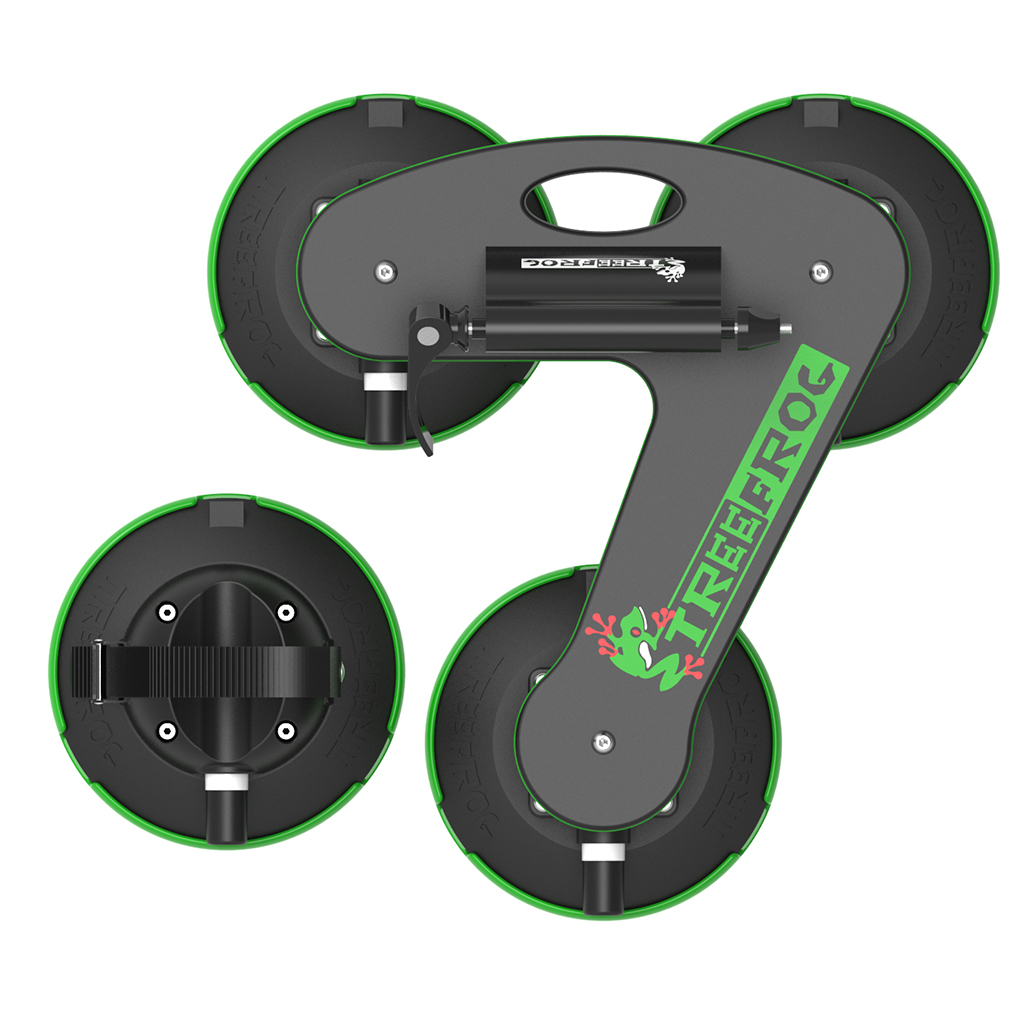

Our best-seller, the TreeFrog Pro 1 bike rack is a double layer roof rack that features a unique figure-7 shape, placing the vacuum cups in a perfect triangle for maximum holding capacity. It holds 1 bike (up to 20kg). No e-bike!!! The Pro 1 double layer Polycarbonate deck has 3 TreeFrog vacuum cups, each rated to hold 110kg, a 9-12x100mm universal fork mount (or, 9-15x100mm fork mount as an alternate option) and a strong ladder strap rear wheel holder. Vacuum pumps enable effortless installation. Removal is quick and easy, by just releasing the vacuum and lifting off the rack. This rack fits virtually any car! Designed for use with mountain bikes, all types of road and road race bikes, triathlon bikes, gravel bikes, cyclocross bikes, and street bikes.

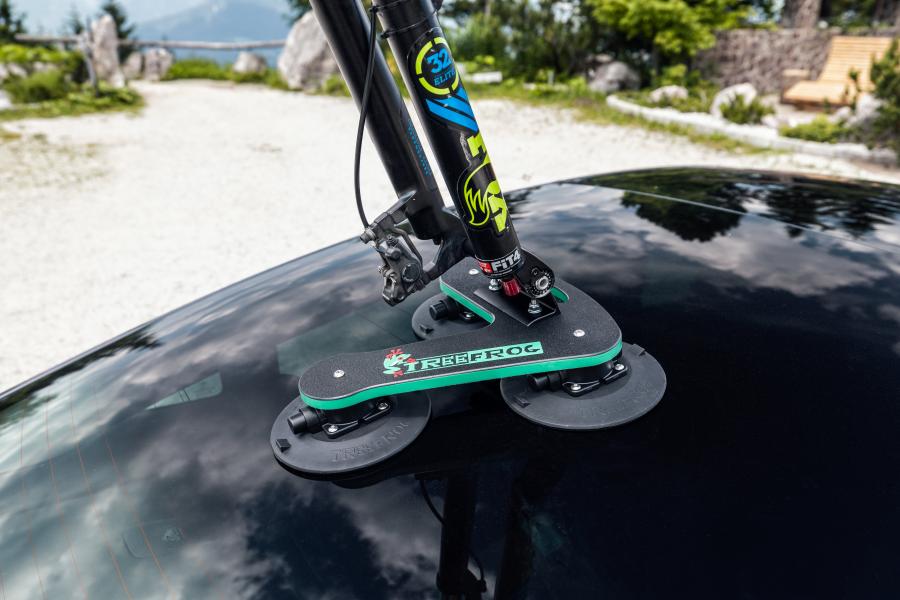

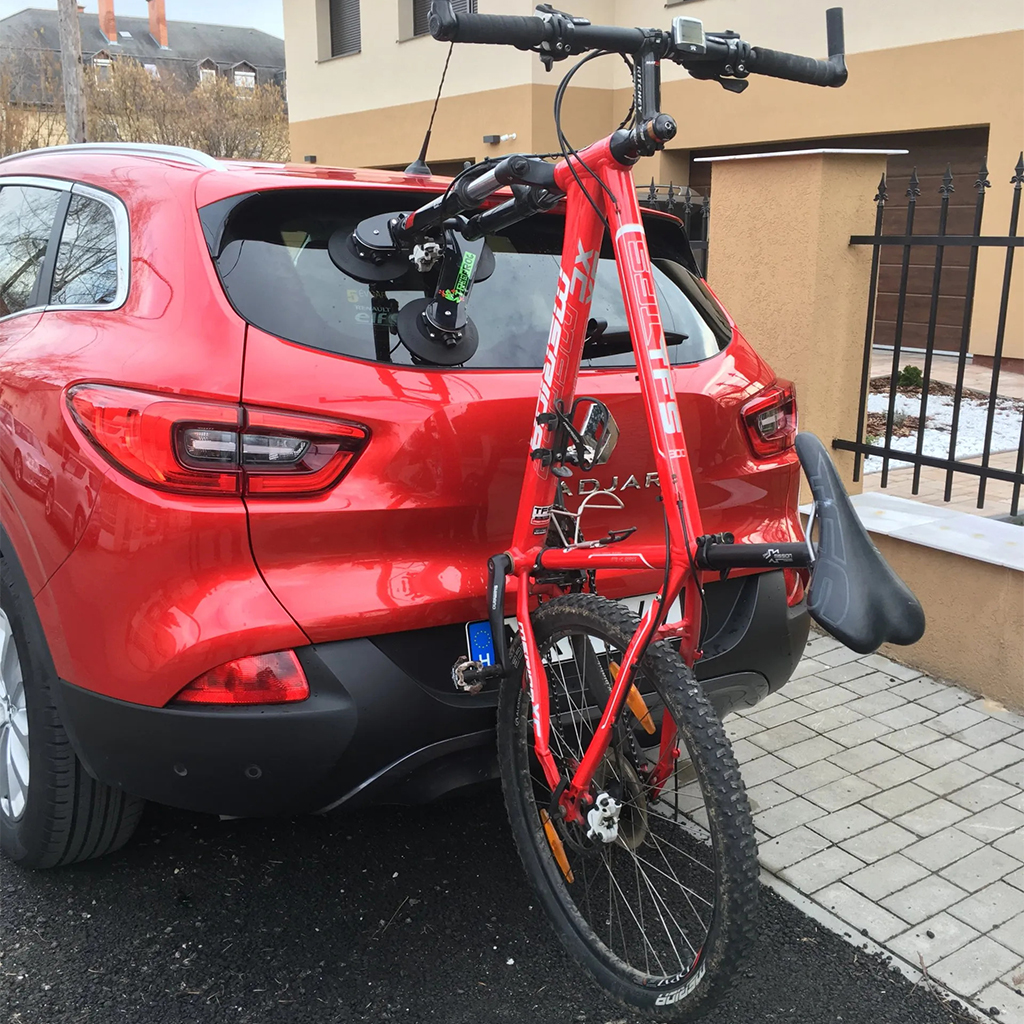

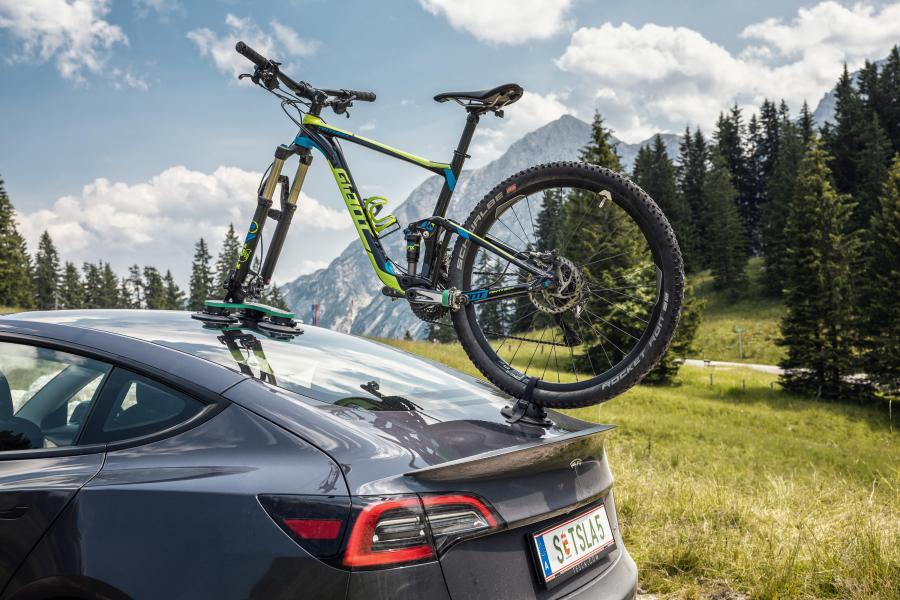

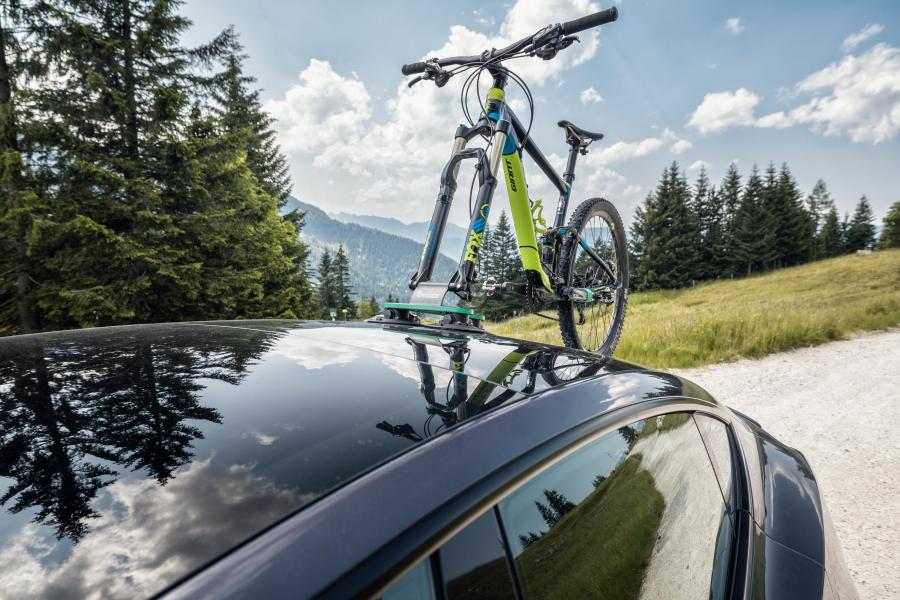

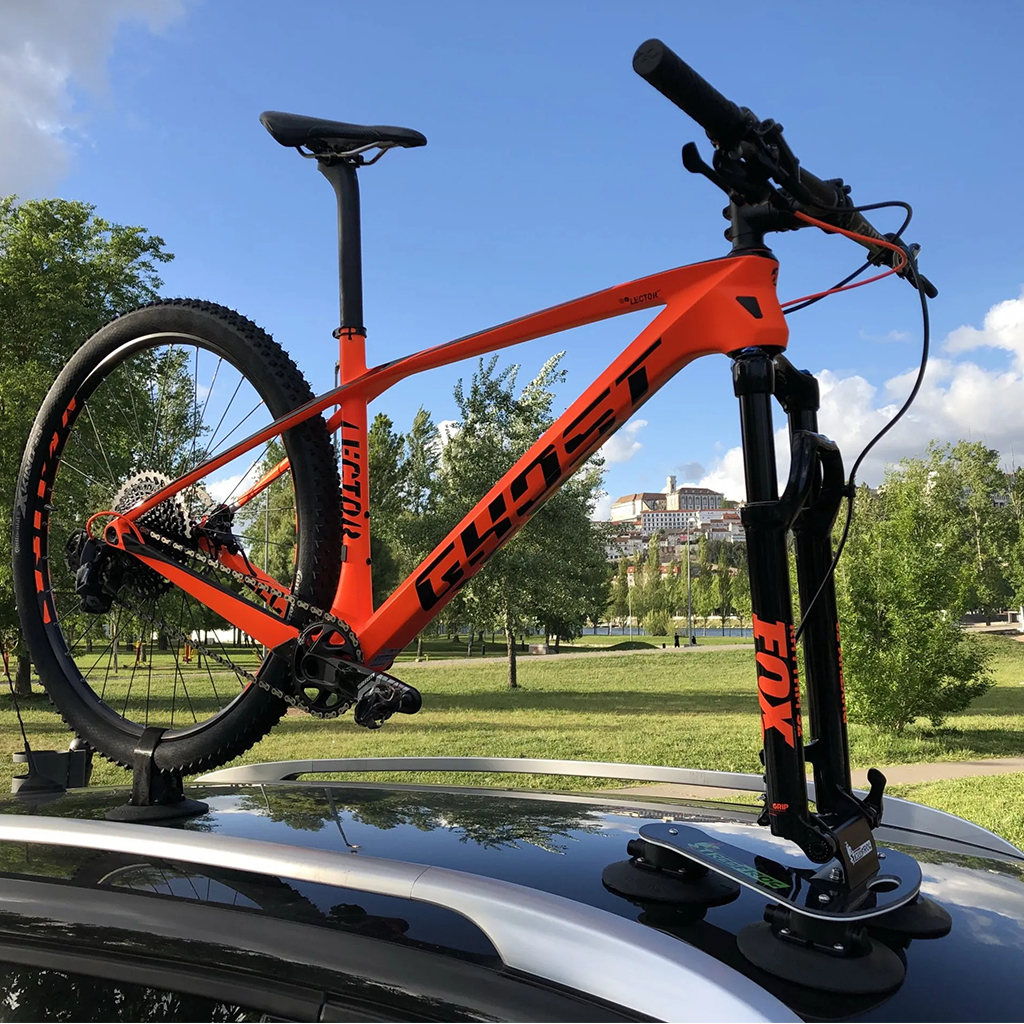

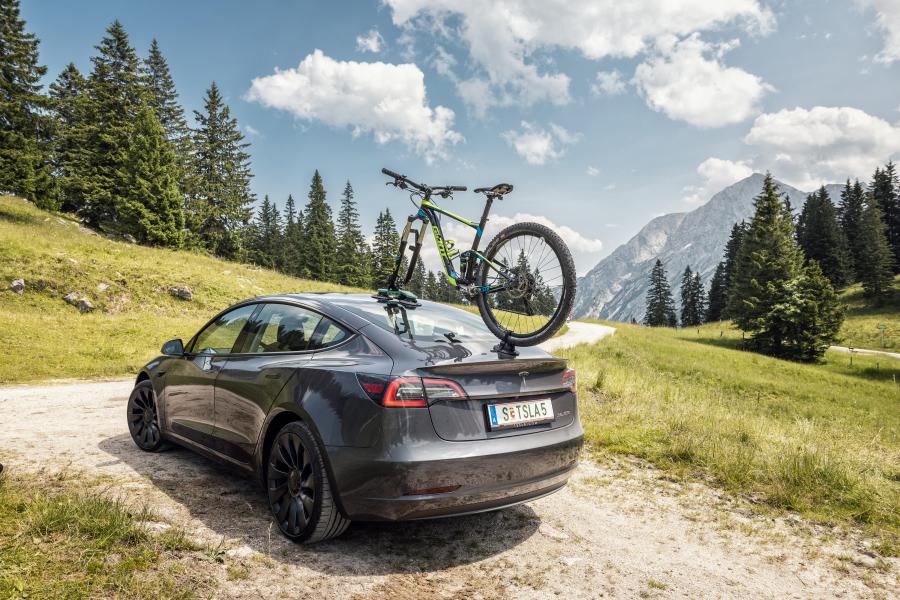

The 9-12x100mm universal fork mount securely holds either a standard 9mm quick release or a 12x100mm fork, no need to switch out fork mounts! Pro series racks can be used with different 12mm, 15mm and 20mm thru axle fork mount sizes (including Lefty fork) to be ordered separately. It’s a great choice for any car, and it even fits in a backpack, so traveling with it is easy, and it’s an excellent choice for use with rental cars and can be mounted on the roof, hatchback, or rear window.

The TreeFrog Pro 1 bike rack weight is 2,8kg. It holds 1 bike up to 20kg. The Pro 1 is not suitable for e-bikes, please shop Pro 2 or Pro 3 racks for e-bikes.

Features:

• Made for quick and easy roof top, trunk, or hatchback attachment

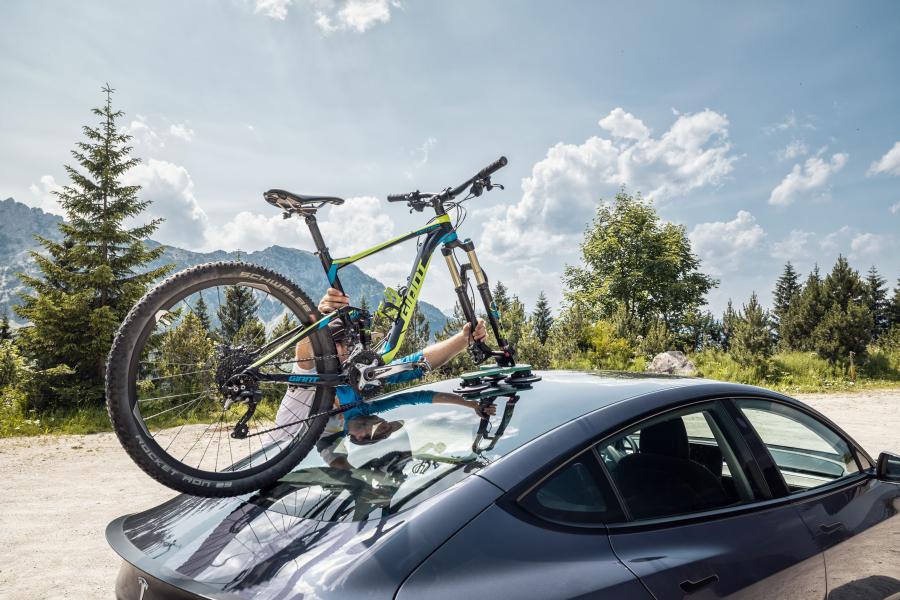

• No tools or expertise is required, racks can easily be installed and removed
• Suitable for attachment to glass or smooth-painted rigid surfaces including vehicle body panels made from steel, aluminium, carbon fiber, fiberglass and structural composites
• Keep the inside of your vehicle clean and damage free by transporting bikes using the Tree Frog racks
• Optional security cable system is offered (not included) for locking bikes and rack to vehicles
• Includes storage caps for vacuum cups, to protect against dirt and damage
• 2 years warranty against defects in materials and workmanship

Specifications:

• Sophisticated design, CNC-cut double layer polycarbonate (stronger than high density polyethylene HDPE) board
• 6061 Anodized aluminum bracketry
• 304 Stainless steel ‘rust free’ hardware
• Bike weight limit capacity is 45lbs / 20kg
• Certification: German TUV SUD test (German DIN bicycle racks tests)
• 6” Suction cup diameter
• Rack weight: 6.2 lbs / 2.8 Kg
• Footprint front: 13.4 in x 14.0 in / 34.0 cm x 35.5 cm
• Footprint rear: 6 in / 15.2 cm  diameter

Scope of supply:

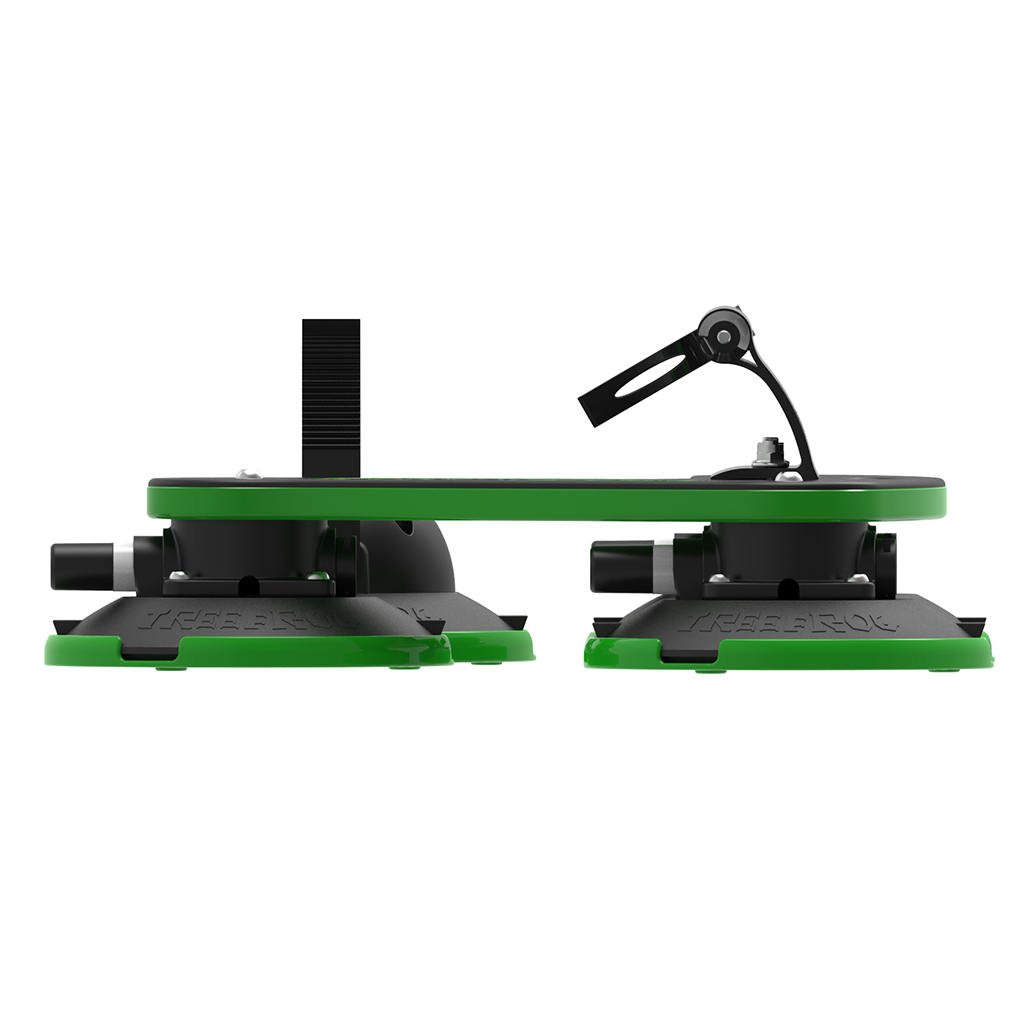

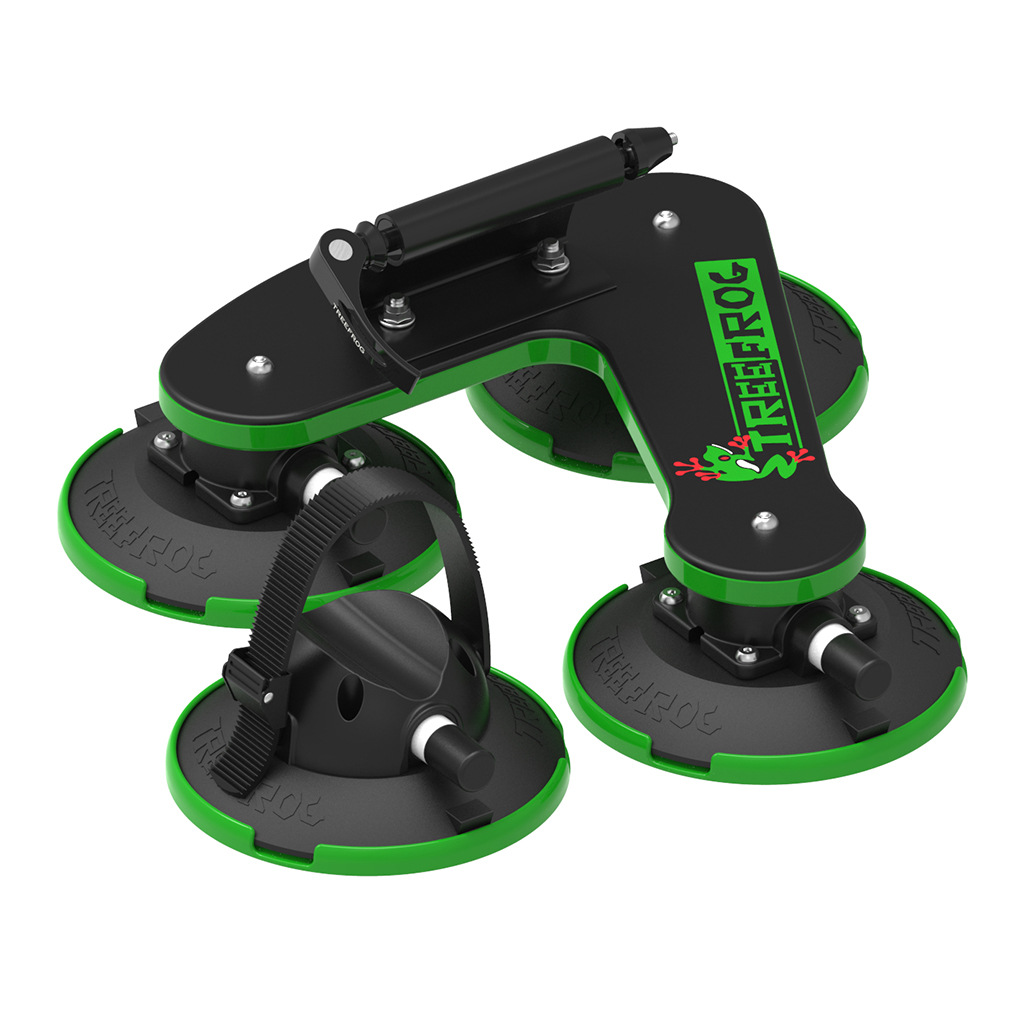

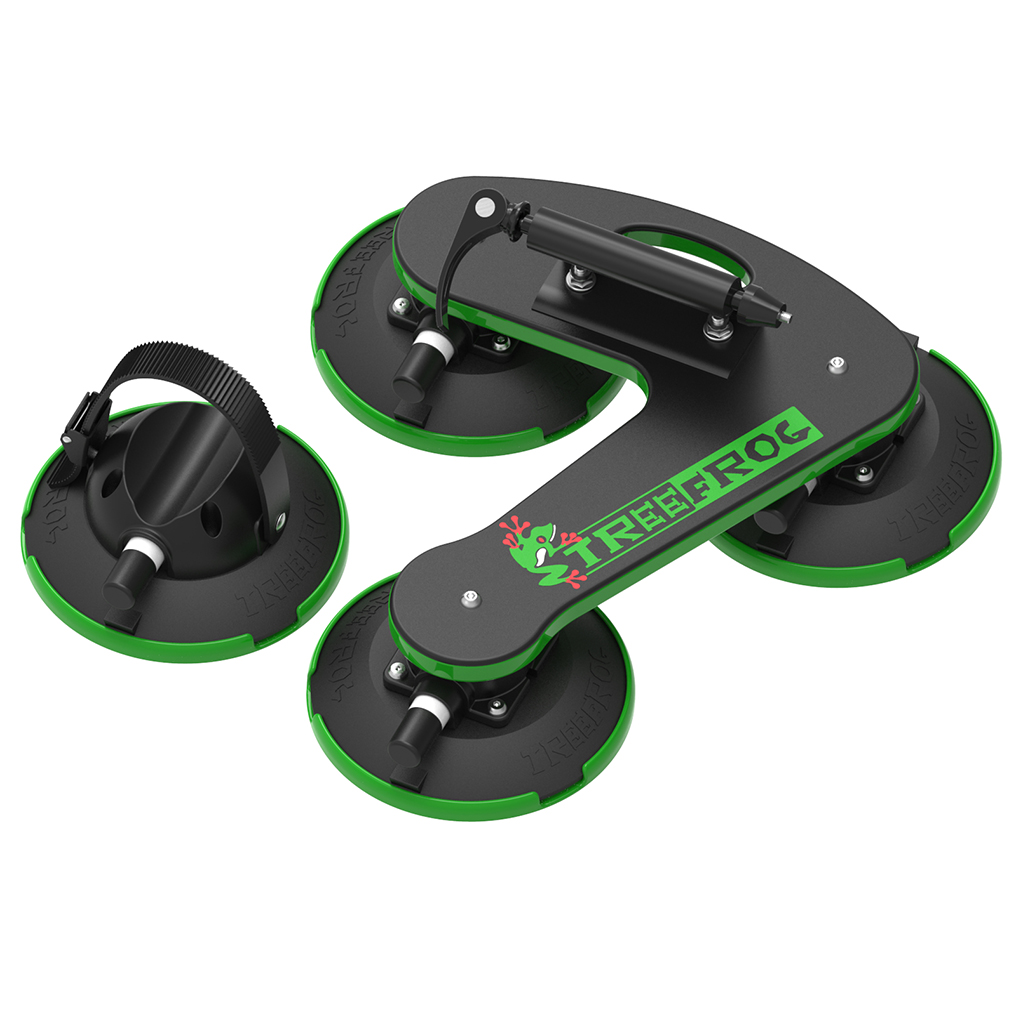

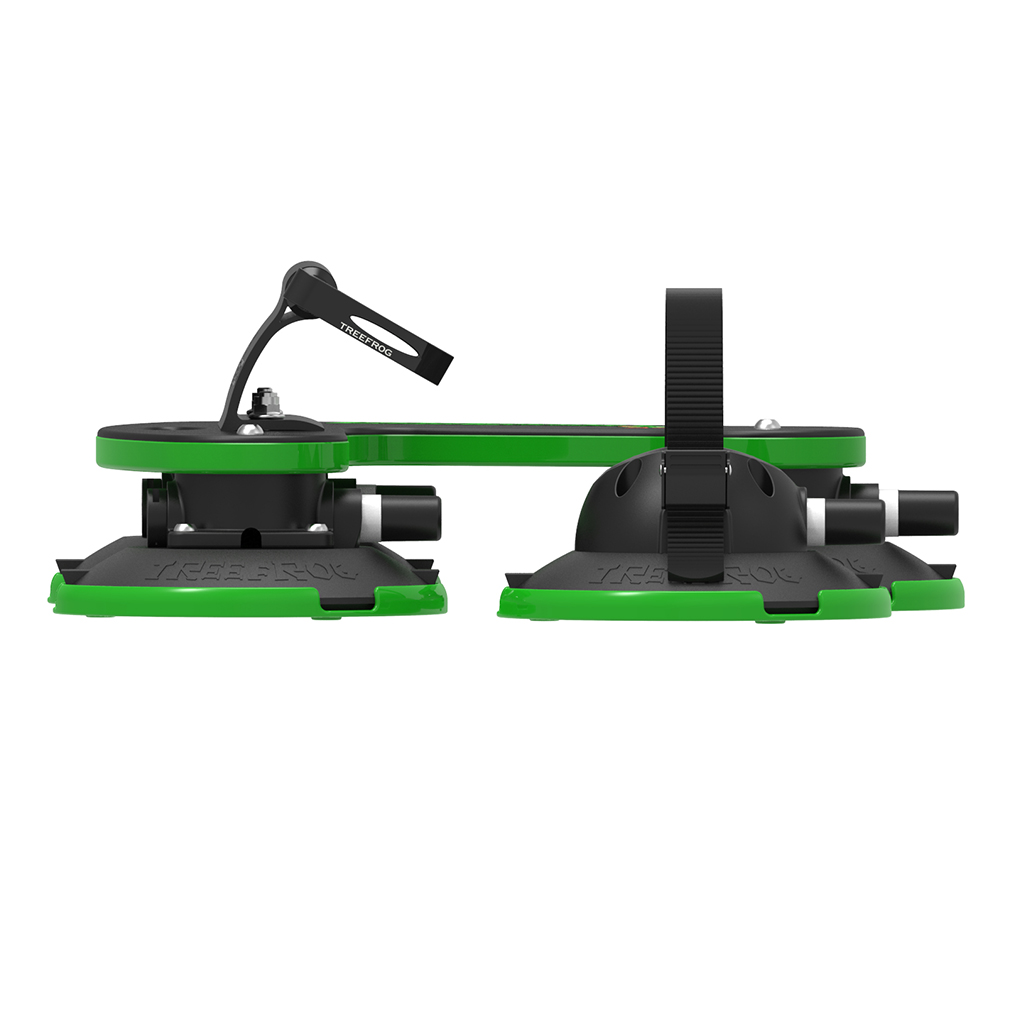

• 1 x Front mounting platform with 3 vacuum cups and covers
• 1 x Universal 9-12x100mm (or, 9-15x100mm) fork mount and quick release skewer
• 1 x Rear wheel holders with vacuum cup and a strong ladder strap
• 1 x Spray water bottle and cleaning microfiber cloth
• 1 x Crank arm holding Velcro strap
• 1 x 5g lubricant for vacuum pump maintenance
