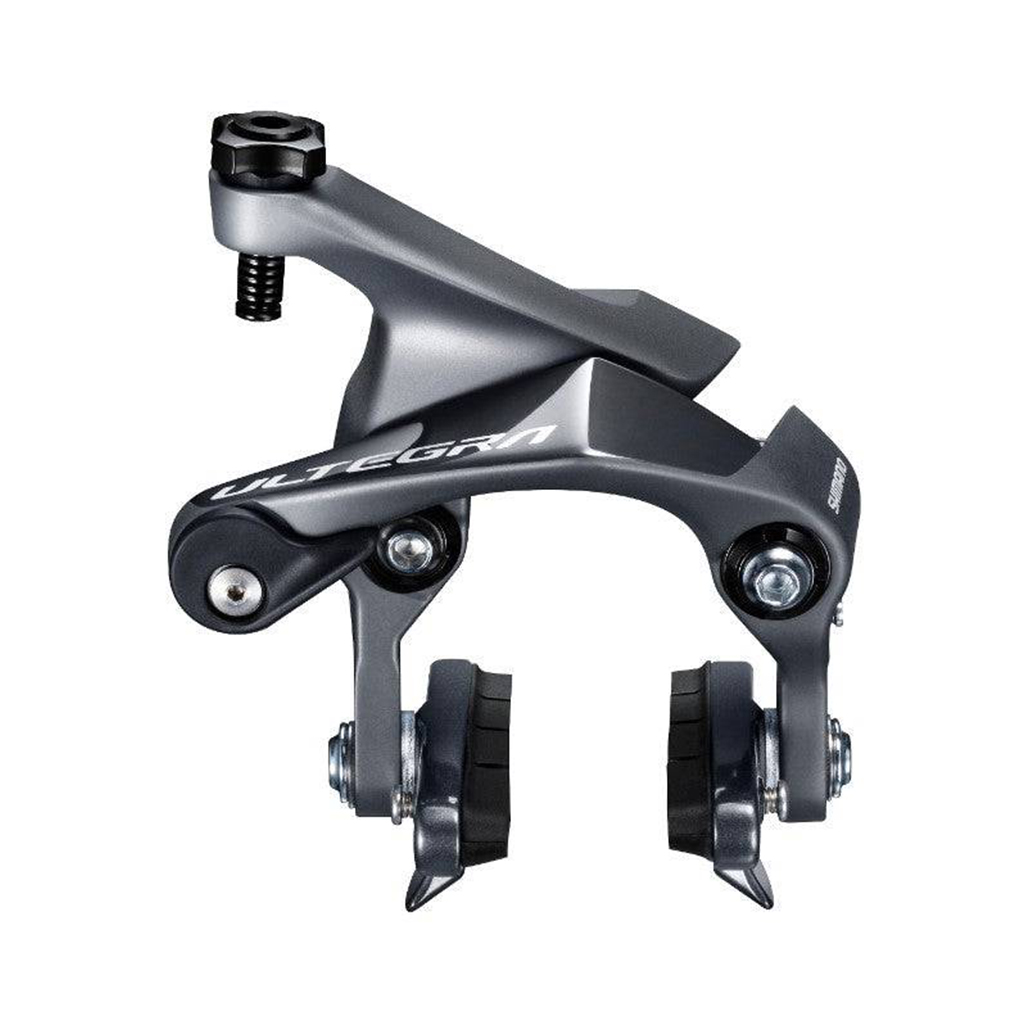

Shimano Ultegra BR-R8010-RS Direct-Mount Brakes for Seat Stay - rear

The Shimano Ultegra BR-R8010 Direct Mount brake offers the same beautiful sleek design as the BR-R8000, making it compatible with larger tire sizes such as 28C thanks to narrower gaps between the arms. The brake mounts of BR-R8010 connect directly to the frame, reducing redundant parts and increasing overall braking performance.

The brake is delivered with R55C4 brake shoes that are only for aluminum rims. The direct-mount design is perfect for aero frames.

Max. tire width:
28 mm

Rim width:
20.8 to 28.0 mm

Rear installation: at seat stay
Brake pad: included: R55C4
Optional: R55C4 Carbon / R55C4-A Carbon / R55CT4
Included in delivery: rear brake incl. R55C4 brake shoes

Specifications:

• Product Name: Shimano Ultegra BR-R8010-RS Direct-Mount Brakes for Seat Stay - rear
• Manufacturer: Shimano Parts
• Material: Aluminium
• Usage bikesport: Road Bike
• Rim brake - Mounting: Direct Mount / U-Brake
• Max tire width: 28mm
• Brake actuation: Mechanical
• Rim brake - Version : # Rear wheel, Brake
• Rim width min-max: 20.8-28.0mm
• Rim brake reach: 51mm
• Color: Black
• Weight: 172g
