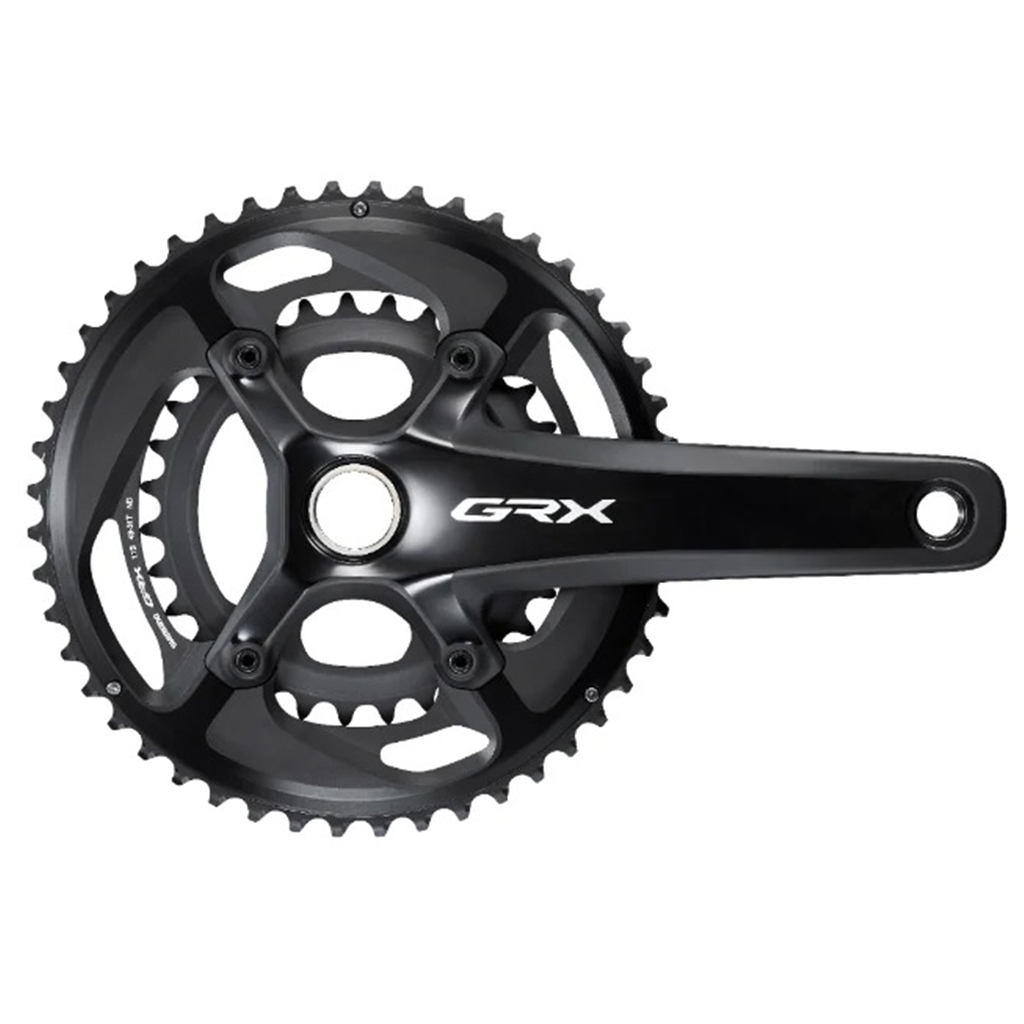

Shimano GRX FC-RX810-2 2x11-speed Crank 48/31
The new GRX GRX FC-RX810-2 Hollowtech II crank from Shimano was developed for 2 x 11-speed to handle a wide variety of terrain and driving styles.

For gravel, road and cyclocross use: Shimano GRX 2x11-speed FC-RX810 Crank 48/31T

All versions feature a 2.5mm wider chain line that gives more space in the frame design and wider tyres. GRX 1-speed cranks minimize the complexity of shifting only at the rear of the cassette (optional RX800/600 40T cassettes or RX800 42T cassettes), and are equipped with chainrings with SHIMANO's DYNAMIC CHAIN ENGAGEMENT+ toothed treads that provide optimal chain retention especially on bumpy surfaces. The GRX RX810 2-speed crank, on the other hand, is characterised by the specific 17-tooth difference between the large 48T and small 31T chainrings, the widest gradation of all SHIMANO components to date. Together with the 46-30T cranks of the RX600 series (10-speed and 11-speed), the 2-speed cranks of the GRX family thus offer more than enough bandwidth for super steep climbs and high speeds in the flat or on descents.

SHIMANO's GRX, the first Gravel-specific component family designed for both fast progress and safe bike handling on loose surfaces, is the result of an intensive and extensive research, testing and development process that incorporates information and feedback from countless riders on trails, forest tracks, gravel tracks and asphalt all over the world.

Features:

• Gravel gear ratios preserve riding rhythm over rough surfaces with wider tires
• Optimum gearing for mixed terrains and riding styles
• Wider range front system
• Use: Gravel, Road, Cyclocross
• Group: GRX
• Model: FC-RX810-2
• Gradation: 48/31T
• Q-Factor: 151mm
• Threaded BB shell width: 68 / 70mm
• Gear front: 2-speed
• Gear rear: 11-speed
• Construction: Hollowtech II
• Compatible Chain: HG-EV 11-speed, HG-X11
• PCD: 110/80mm
• Chain line: 47mm

Technical Specifications:

• Model No.: FC-RX810-2
• Series: GRX 11-speed
• Color: Series color
• Average weight: 710g
• Rear speeds: 11
• Compatible chain: LINKGLIDE, HG 11-speed
• Chain line (mm): 47
• P.C.D. left / right (mm): 110/80
• P.C.D. (mm): 110/80
• Spider/gear arms: 4
• Chainring combination: 48-31T
• Q-factor (mm): 151
• Crank arm length (mm) | 175: ✔
• Optional chain guard | Without chain/bash guard: ✔
• Hollowtech II: ✔
• Hollowtech crank arm: ✔
• Compatible bottom bracket type | Outboard: ✔
• Recommended bottom bracket | Threaded (normal): SM-BBR60
• Recommended bottom bracket | Press-Fit: SM-BB72
• Threaded bottom bracket shell width (mm) | 68: ✔
• Threaded bottom bracket shell width (mm) | 70: ✔
• Crank fixing screw included: ✔
