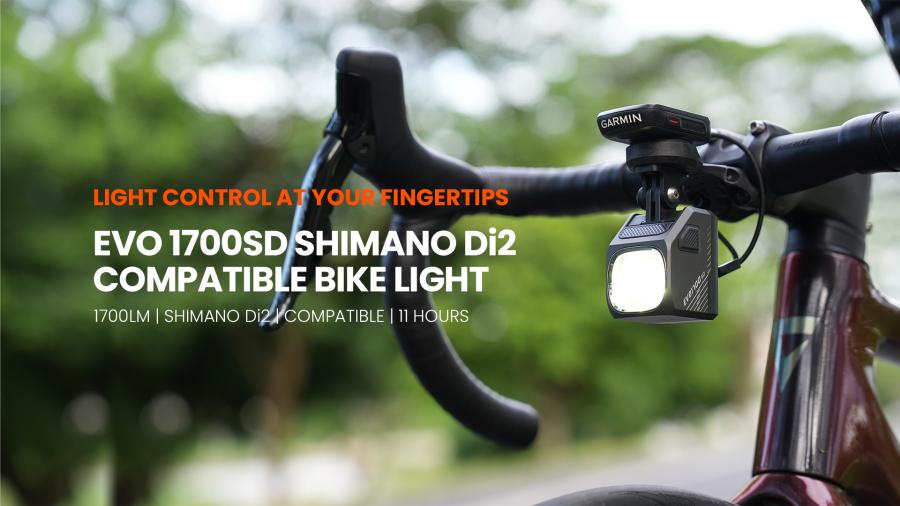

EVO 1700SD Shimano Di2 Compatible Bike Light - Light Control at your fingertips!

The EVO 1700SD is the ultimate lighting solution for cyclists who demand high performance and seamless integration with their bike's components.

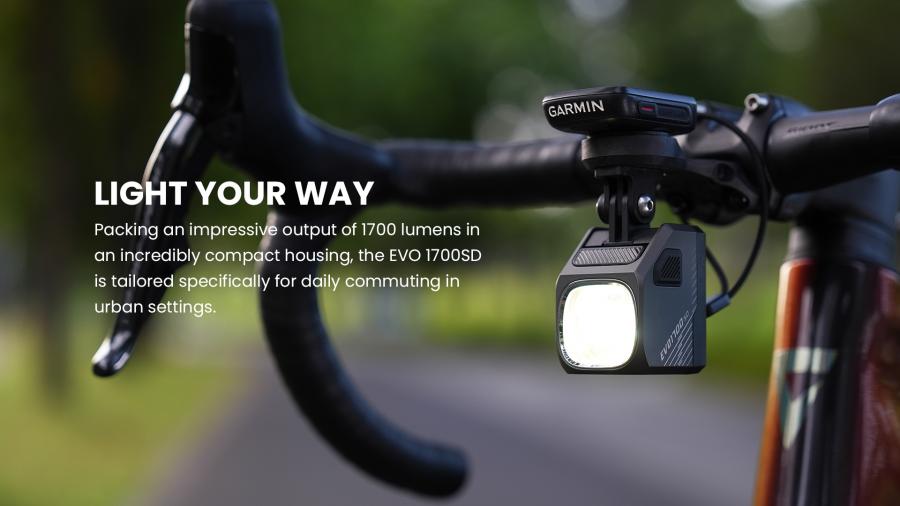

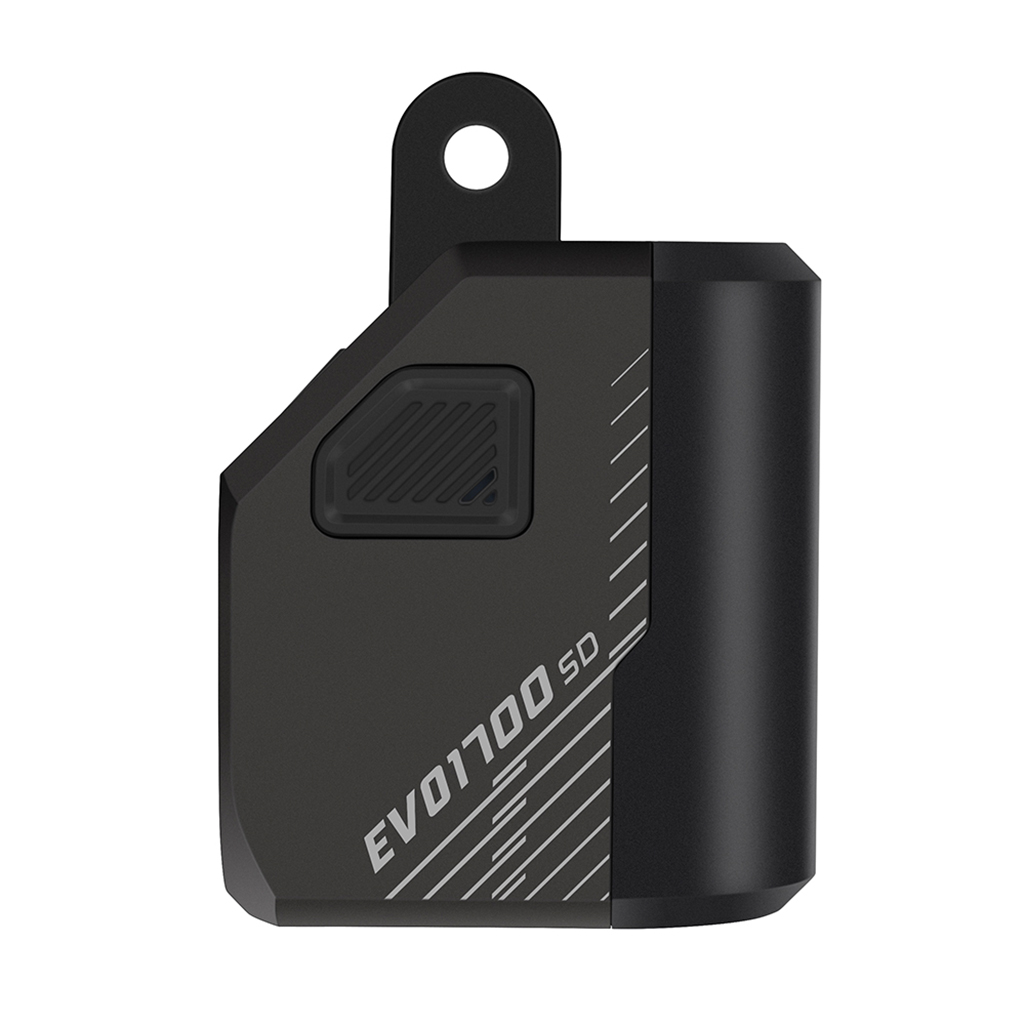

The EVO 1700SD maintains the impressively compact housing of the EVO 1700, packing a powerful 1700 lumens to light your path. The difference lies in its streamlined integration. Without the need for a remote control, the EVO 1700SD connects directly to your bike’s Shimano Di2 system（wireless unit). This integration not only enhances the aesthetics of your setup by reducing clutter but also significantly improves accessibility and safety.

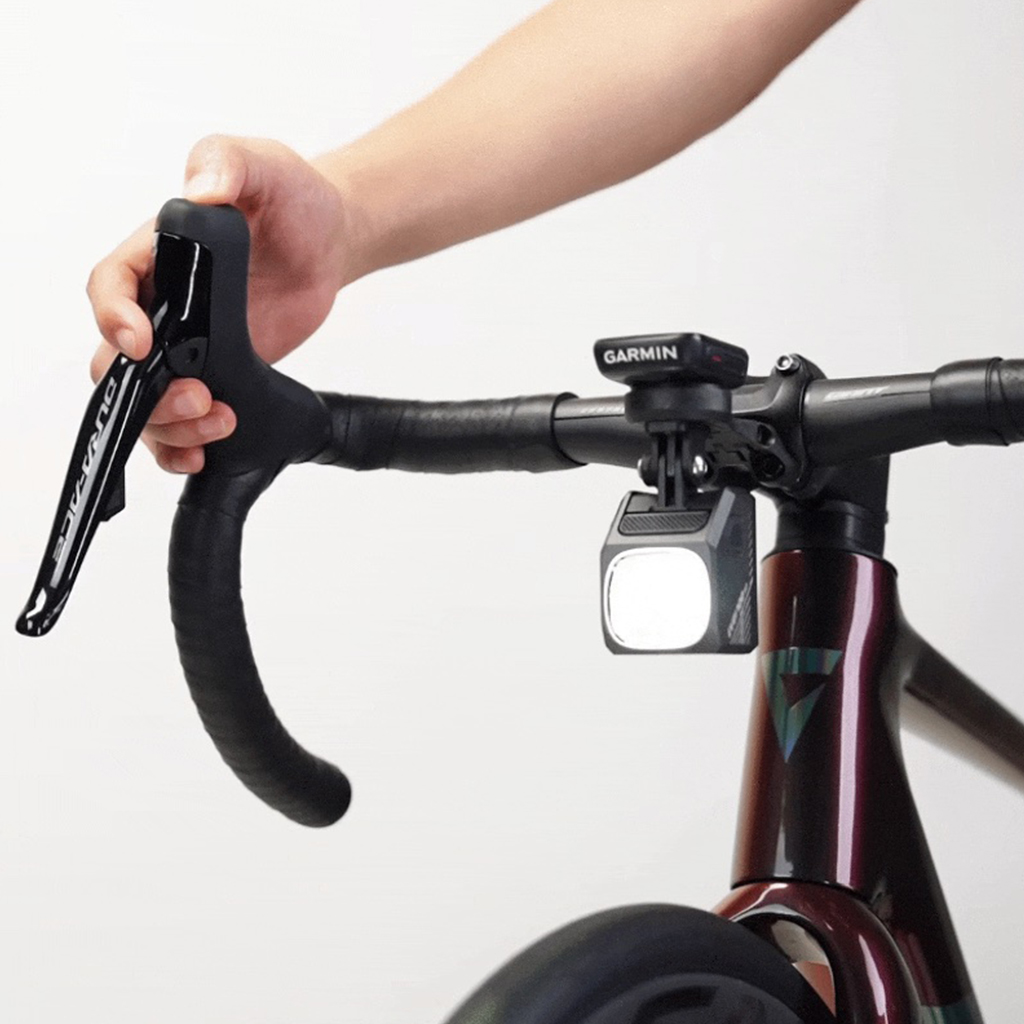

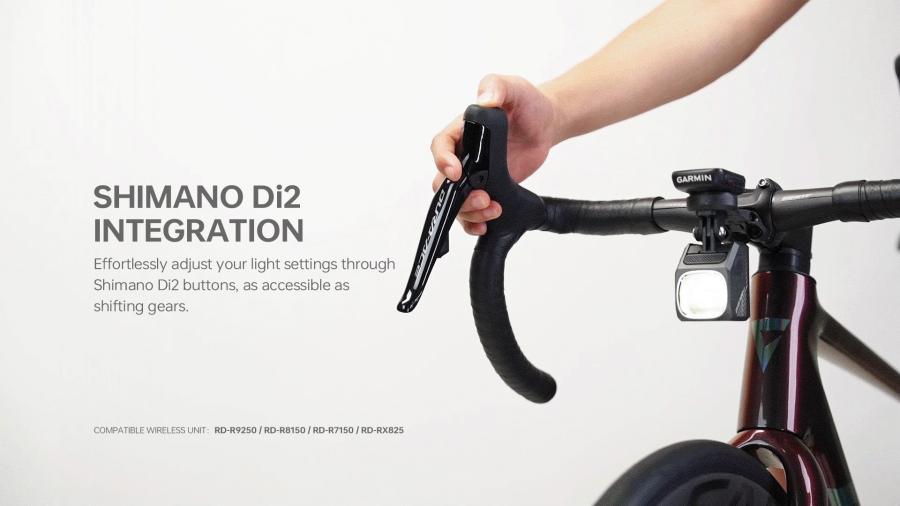

Leveraging the Shimano Di2 system’s capabilities, the EVO 1700SD can be controlled effortlessly from the Di2 shifters. Turn the light on and off, adjust the brightness, switch modes, or unleash the full power of 1700 lumens with the touch of the hood buttons, all without ever removing your hands from the handlebars. This seamless control mechanism ensures that your focus remains on the road, enhancing your ride's safety and convenience.

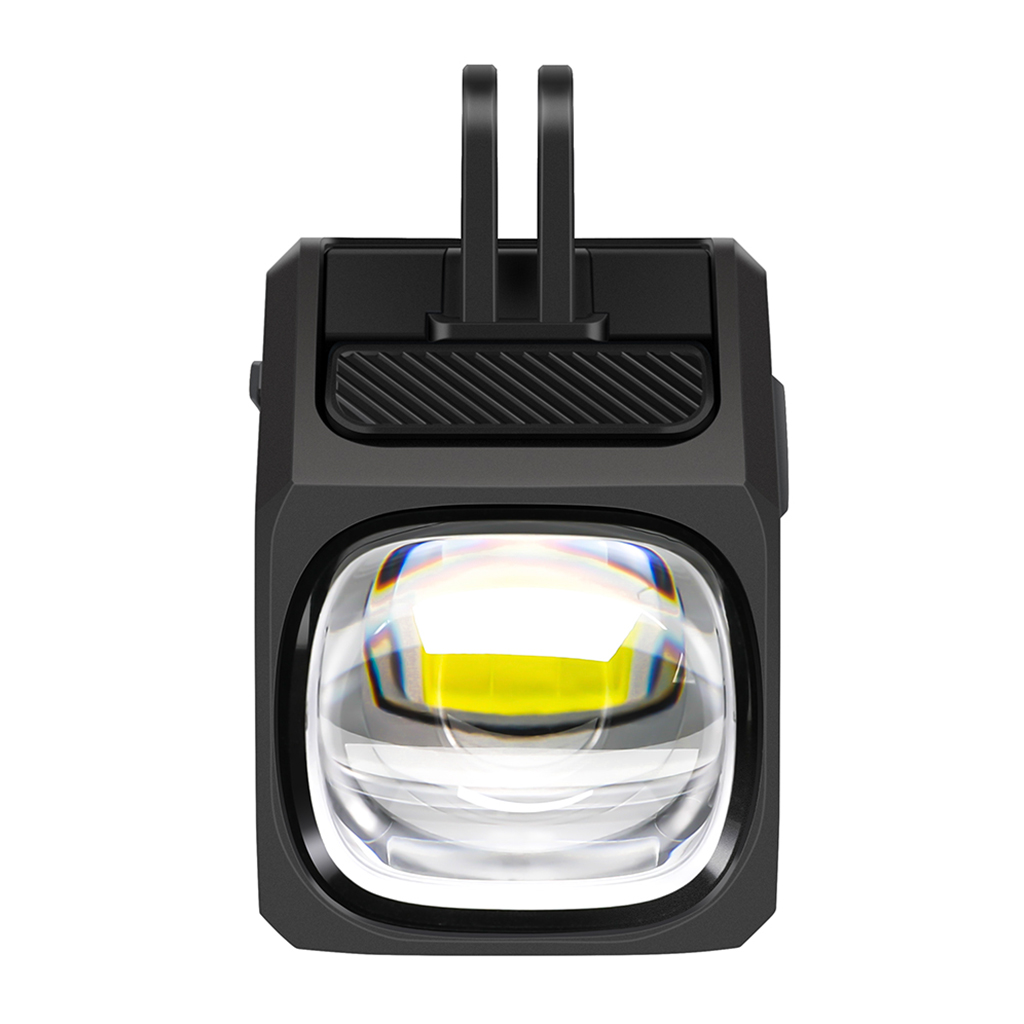

Like its predecessor, the EVO 1700SD features a dual-beam system with both high and low beams. The low beam is precisely calibrated with a clear cut-off line to focus light directly on the road, enhancing visibility while avoiding glare to oncoming traffic. For less illuminated paths or faster rides, the high beam projects a powerful, far-reaching light that significantly improves visibility, allowing you to spot obstacles from a greater distance.

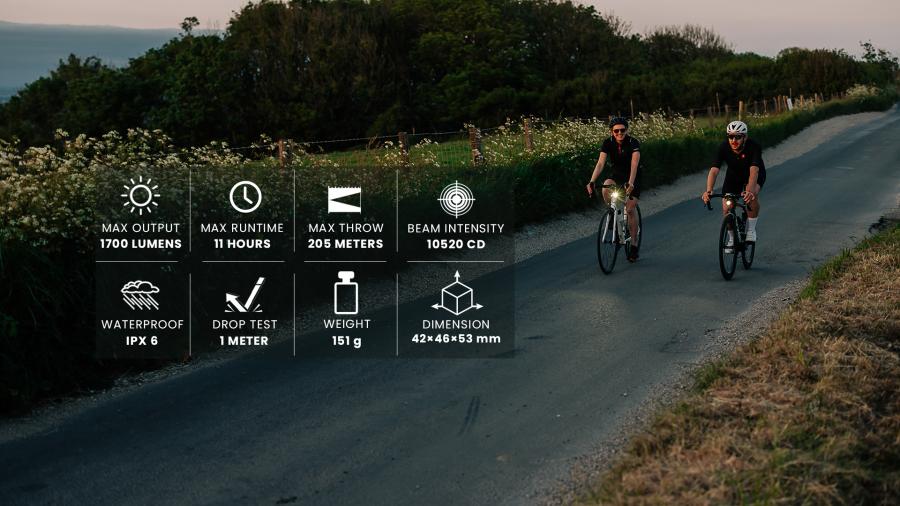

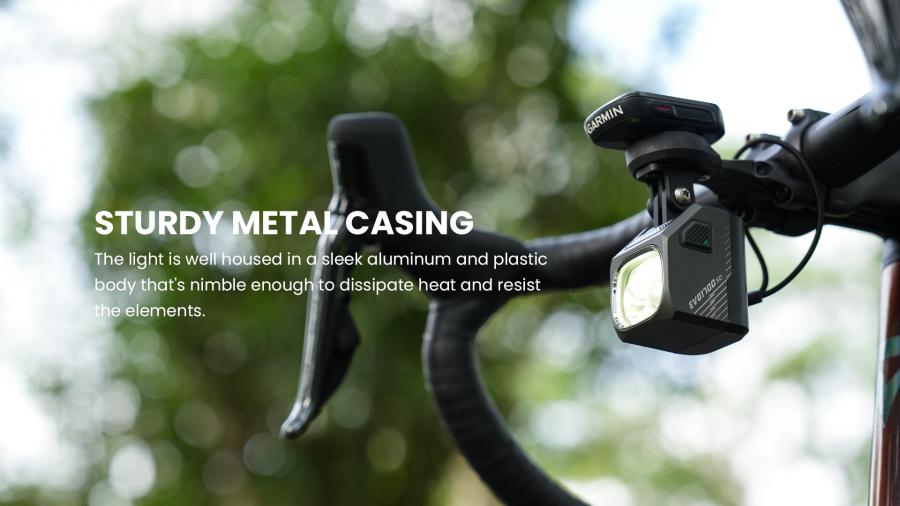

The EVO 1700SD is built to endure. The robust construction combines high-grade aluminum and durable plastic, optimized for heat dissipation and resistance to various weather conditions. It is IPX6 rated, ensuring that not even heavy rain can stop you from riding. Powered by a 4000mAh battery, it delivers up to 11 hours of runtime, and with the convenient USB-C charging, keeping power is easier than ever.

Whether navigating busy city streets or racing on the roads, the EVO 1700SD provides consistent and balanced illumination. Upgrade your cycling experience with the EVO 1700SD – where technology meets trailblazing design to keep your path well-lit and your rides uncompromised.

Features:

• High-power LED provides a maximum output of 1700 lumens
• Compatible with SHIMANO Di2 system（wireless unit）,can be controlled via the Di2 button
• Unique combination of up-close low beam and far-reaching high beam
• Cut-off low beam, glare-free for oncoming road users
• Customize lighting settings for different cycling scenarios through Magicshine App
• Robust aluminum housing for efficient heat management and optimum performance

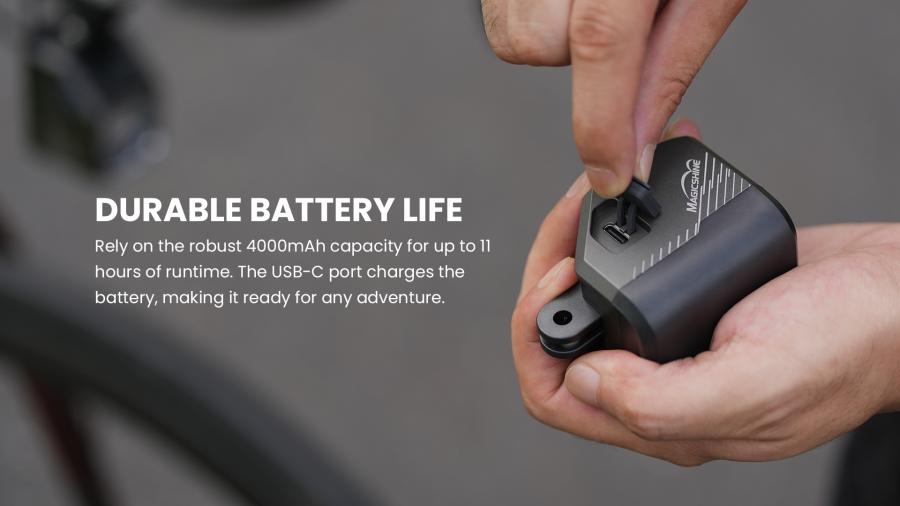

• Powered by a 4000mAh battery, ensuring long-lasting runtime
• USB-C rechargeable
• Lock function to avoid mis-operation
• Memory function saves the last selected mode

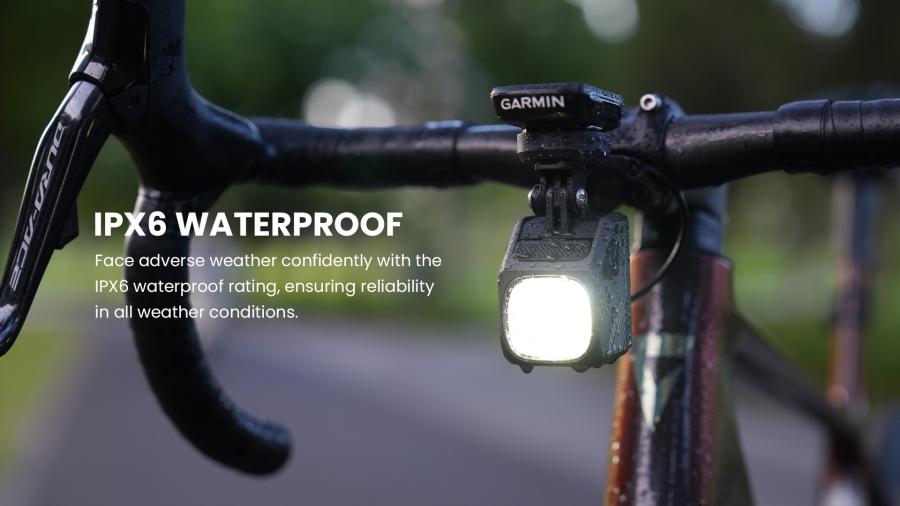

• IPX6 waterproof rating, able to withstand adverse weather
• Warranty: 1 year

Compatible Wireless Unit: RD-R9250 / RD-R8150 / RD-R7150 / RD-RX825

Operating Instructions - Switch on the lighthead

On/Off: Press and hold the button to turn the light on/off. The default output is the last mode when turned off. Note: If the light is turned off by using the button on the lighthead, it will disconnect from the Di2 system. Please reconnect it before the next use.

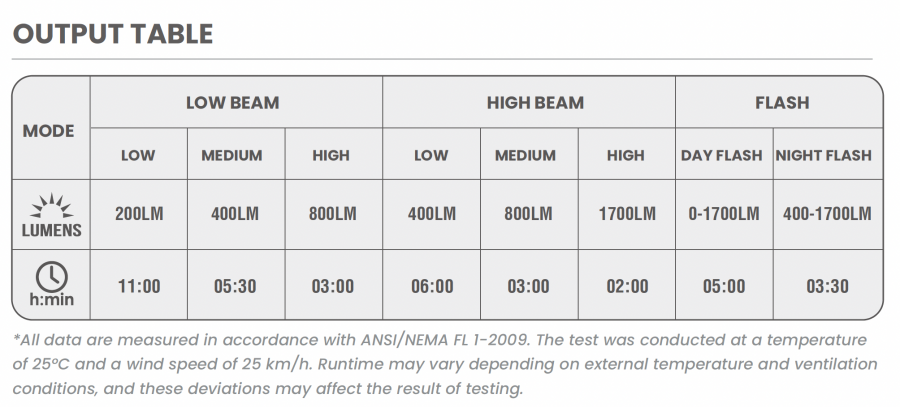

Adjust Brightness: When the light is on, click the button to change brightness level. The output brightness will cycle through Low→Medium→High→Low...

Change Mode: Double-click the button to change between low beam and high beam. (Note: The Day flash and Night flash can only be accessed through the Di2 button.)

Lock/Unlock: When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, press and hold the button again for 3 seconds or charge the light. (Note: After unlocking the light, reconnect it to the SHIMANO Di2 system to enable control.)

Operating Instructions - Di2 buttons

The default setup for the EVO 1700 uses the Di2 left and right shifters hood buttons to control all functions. To operate the light with other Di2 buttons, adjust the settings via SHIMANO’s E-TUBE App. For more details, please refer to SHIMANO’s E-TUBE App operating instructions.

On/Off: Press and hold the left or right hood button on the shifter for 1 second to turn the light on/off.

Check Battery Level: When the light is off, click the left or right hood button on the shifter to display the light's remaining battery level.

The Left Hood Button: Click the left hood button to change brightness level. The output brightness will cycle through Low→Medium→High→Low...Double click to change between low beam and high beam.

The Right Hood Button: Click the right hood button to activate maximum output. The light will enter the High brightness of high beam mode. Double click to enter flash mode and cycle through Night Flash→Day Flash→Night Flash...

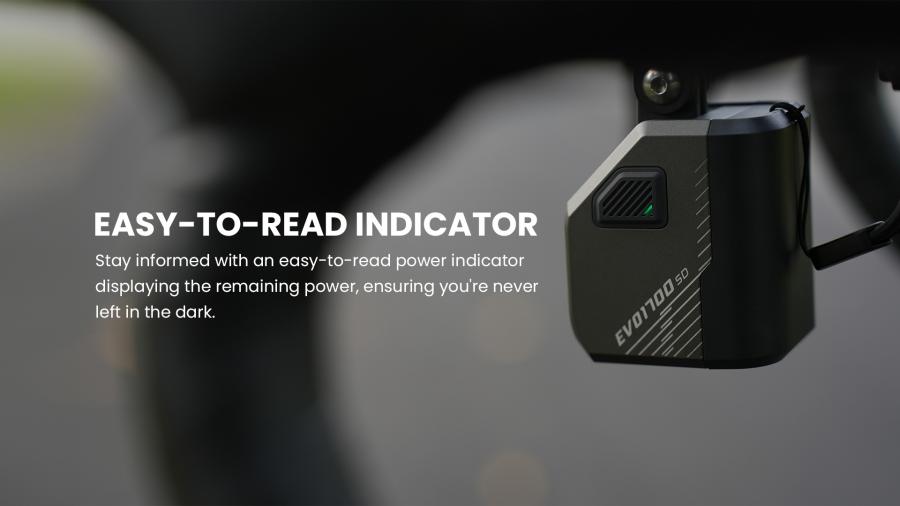

Battery Indicator: When the light is off, click the power button to display the remaining battery level for 3 seconds.
GREEN: 100%-21%, RED: 20%-11%, FLASHING RED: 10%-1%
