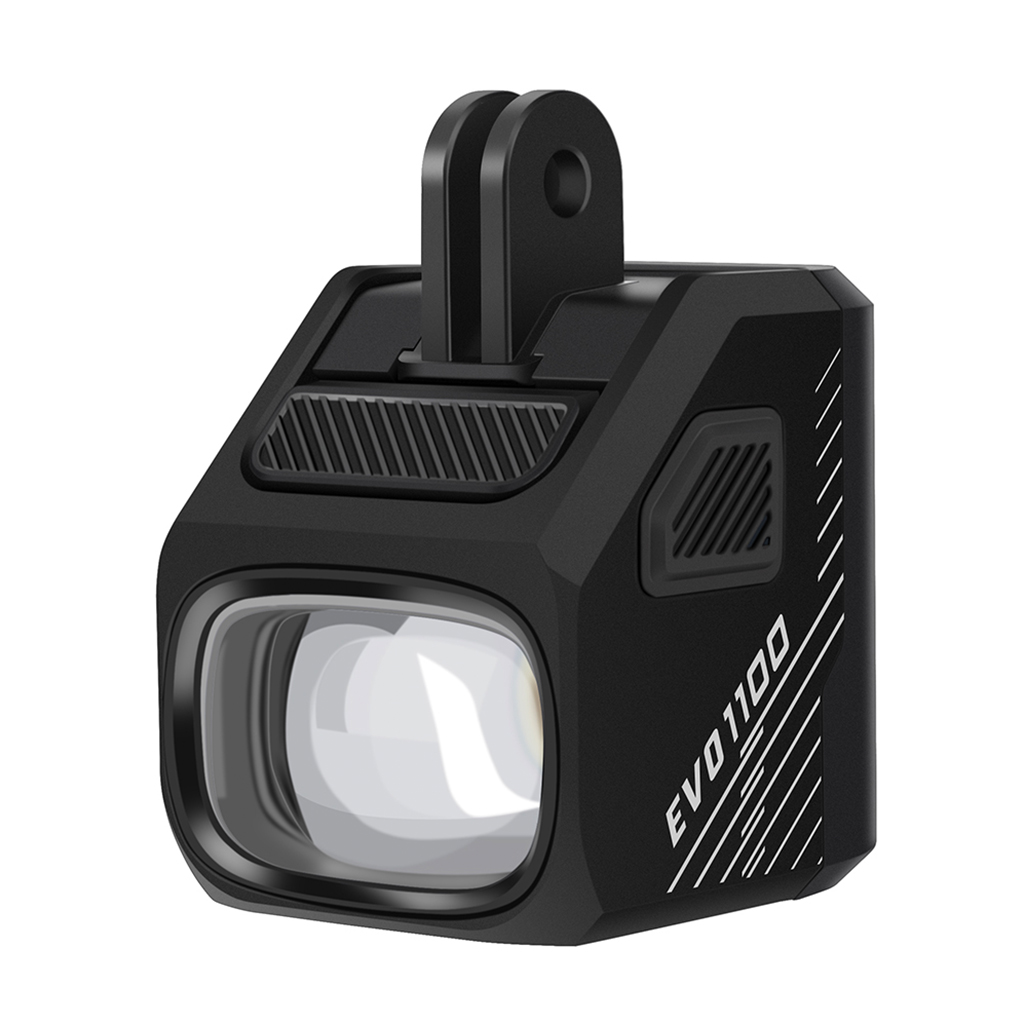

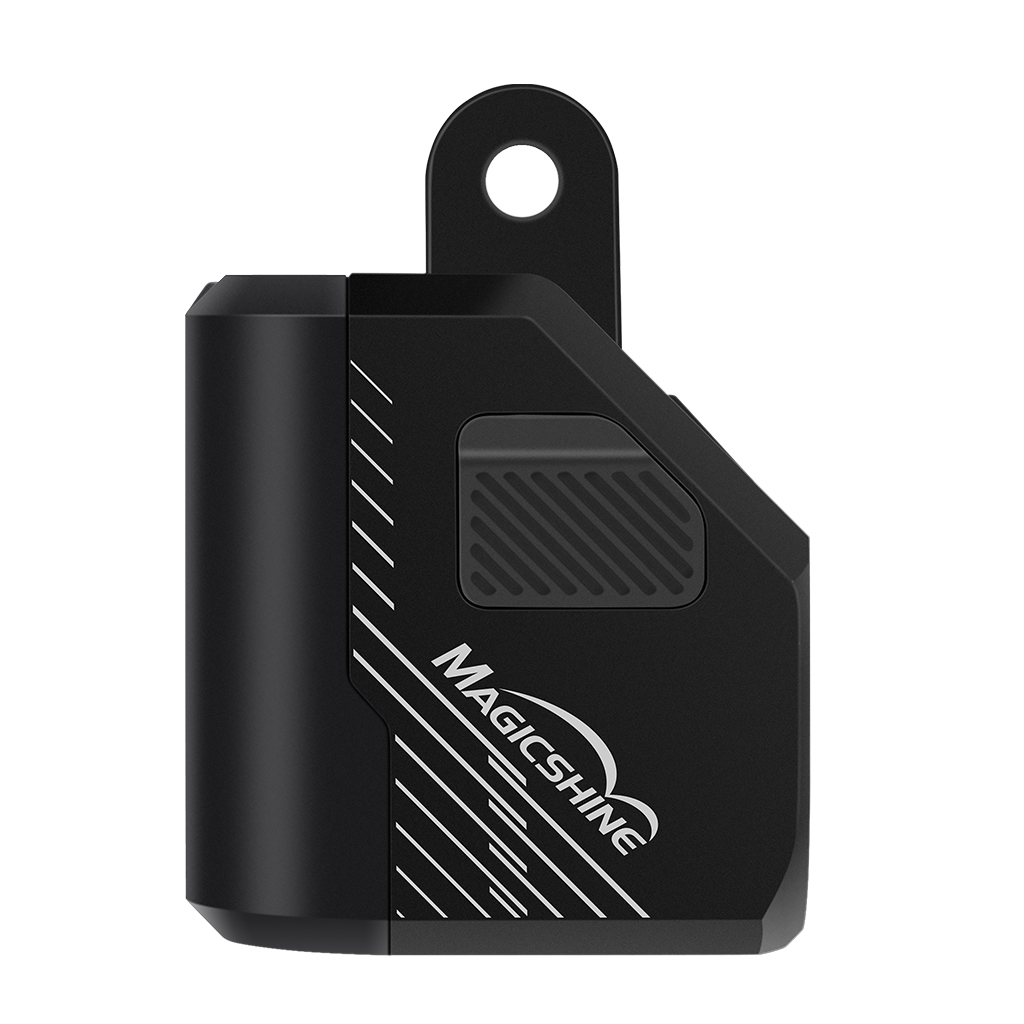

The EVO 1100 is the newest addition to Magicshine's EVO series, packing an impressive output of 1100 lumens in compact housing. Smaller and lighter than the EVO 1700, it meets the needs of road riders and commuters with precision. Its maximum output ensures visibility and safety in all conditions.

Safety and visibility are paramount. The EVO 1100 features a specially calibrated low beam cutoff spot that directs light onto the road ahead, preventing it from spreading outwards and upwards, thus avoiding blinding oncoming road users. This makes it an excellent light for all road participants.

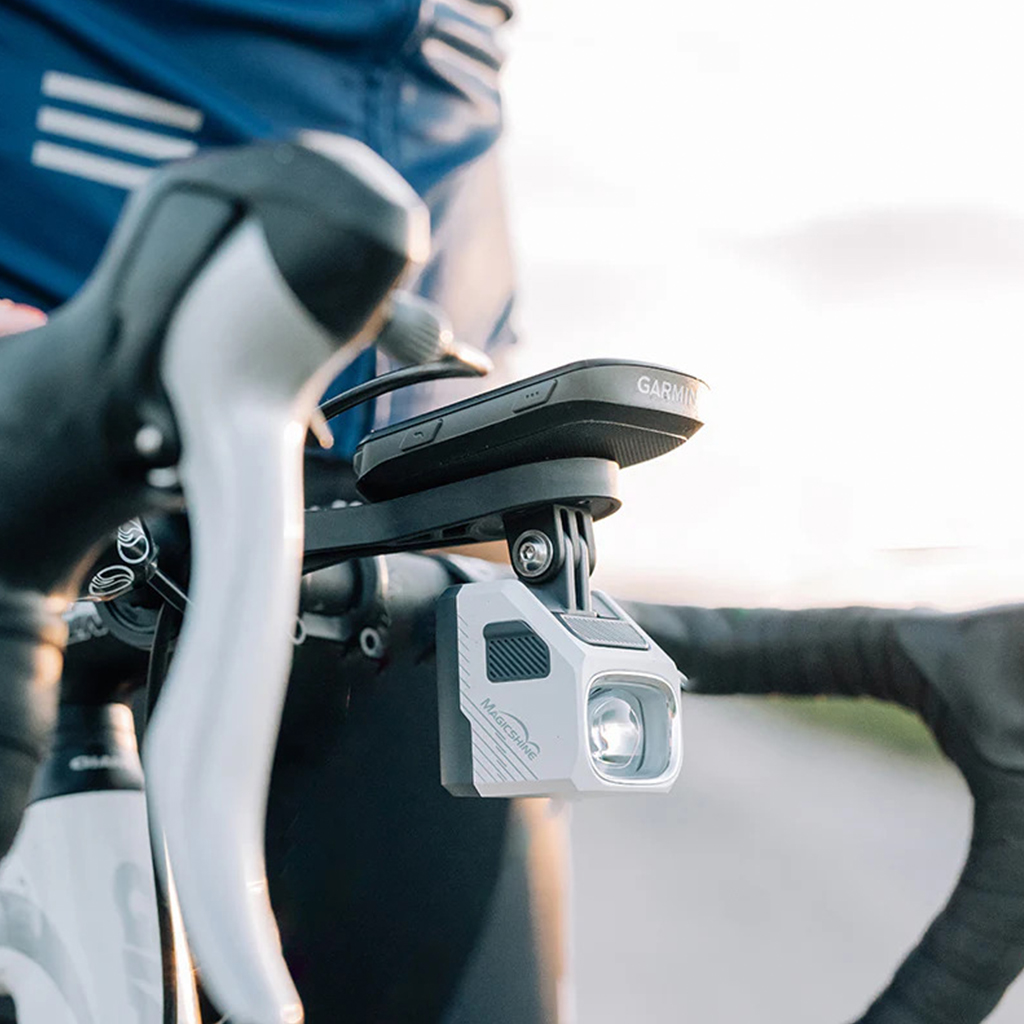

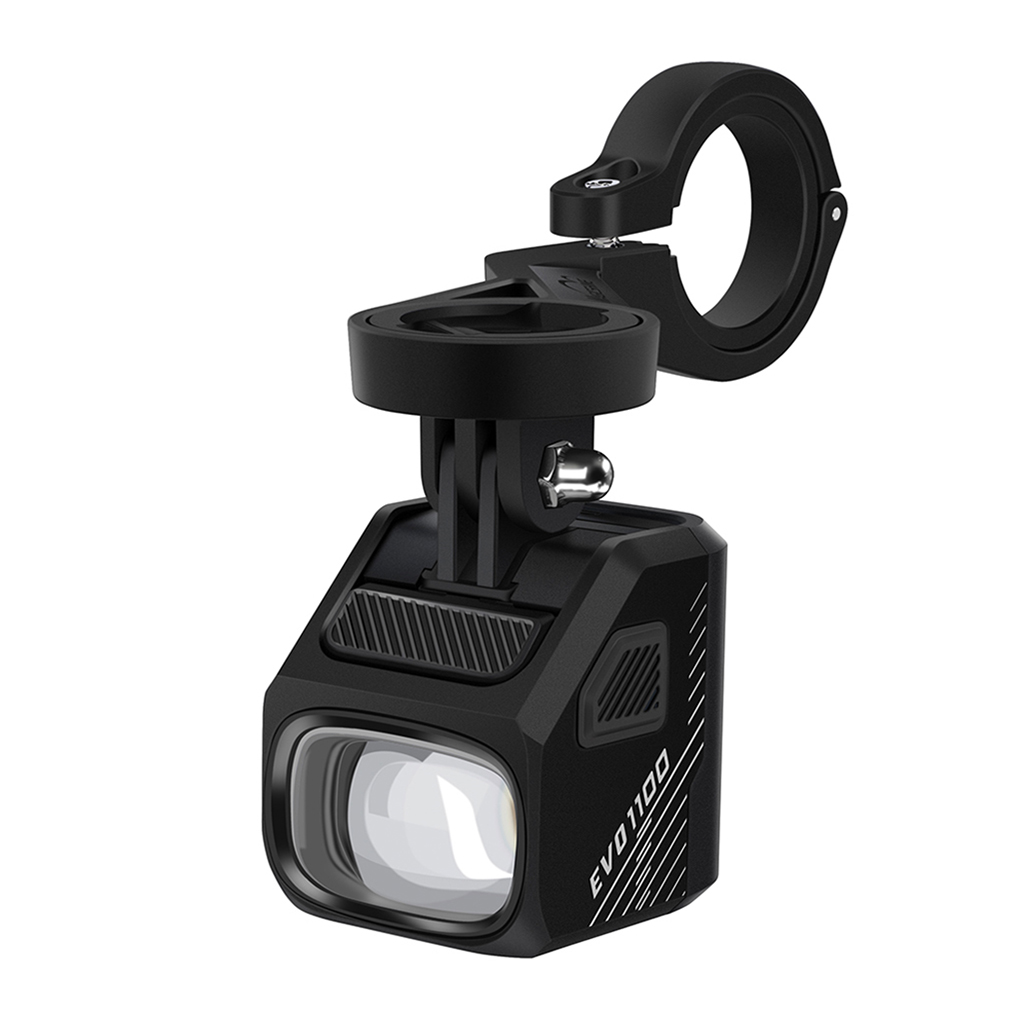

The innovative mounting system keeps your bike's cockpit neat. The lightweight out-front mount installs the light underneath most handlebars, creating space for a bike computer and maintaining optimal orientation. The quick-release design allows for easy installation and removal, while the adjustable light head provides wide-range or oriented lighting for maximum security.

Connect to the Magicshine App to customize lighting preferences, add new modes, or adjust brightness. The wireless remote control offers instant access to on/off, mode switching, and one-click extreme brightness without taking your hands off the handlebars, keeping your focus on the road.

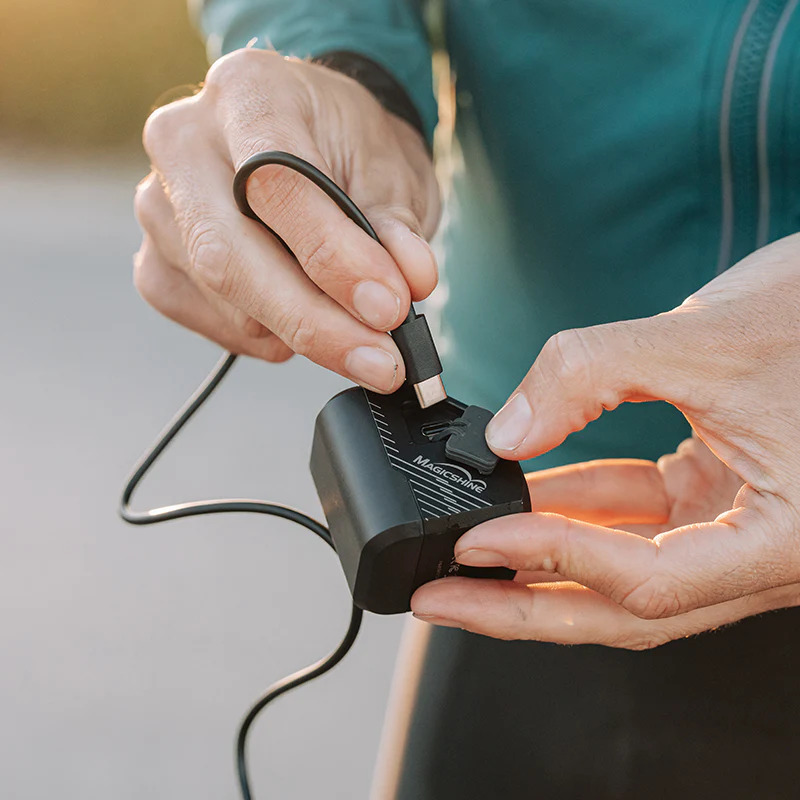

The EVO 1100 is powered by a built-in 1800mAh battery, easily rechargeable via USB-C. It provides a reliable runtime of up to 15.5 hours, ensuring ample light for extended rides. The robust metal shell design ensures durability and weather resistance. With an IPX6 waterproof rating, the EVO 1100 withstands heavy rain, continuing to illuminate your path.

The EVO 1100 delivers consistent and balanced illumination for road cycling and commuting. Ride confidently, day or night, knowing your path will be well-lit.

Features:

• High-power LED provides a maximum output of 1100 lumens
• Cut-off line beam, glare-free for oncoming road users
• Lightweight out-front mount installs the light underneath most handlebars
• Customize lighting settings for different cycling scenarios through Magicshine App
• Wireless remote control, straight forward to activate maximum output
• Robust aluminum housing for efficient heat management and optimum performance
• Powered by a 1800mAh battery, ensuring long-lasting runtime
• USB-C rechargeable
• Lock function to avoid mis-operation
• Memory function saves the last selected mode
• IPX6 waterproof rating, able to withstand adverse weather
• Warranty: 1 year

Operating Instructions:

Switch - A switch on the light unit and a wireless remote control all modes and brightness.

On/Off - Press and hold the button to turn the light on/off. The default output is the last mode when turned off.

Adjust Brightness - When the light is on, click the button to change brightness level. The output brightness will cycle through Low→Medium→ High→Low...(*The flash mode can only be accessed via the wireless remote control).

Lock/Unlock - When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, you can press and hold the button again for 3 seconds or charge the light.

Low Power Mode - When the battery power is below 10%, the indicator will flash red, and the light will automatically switch to Low mode and cannot be adjusted. Charge the light as soon as possible.

Battery Indicator - When the light is off, click the power button to display the remaining battery level for 3 seconds.
Green: 100%-21%, Red: 20%-11%, Flashing Red: 10%-1%

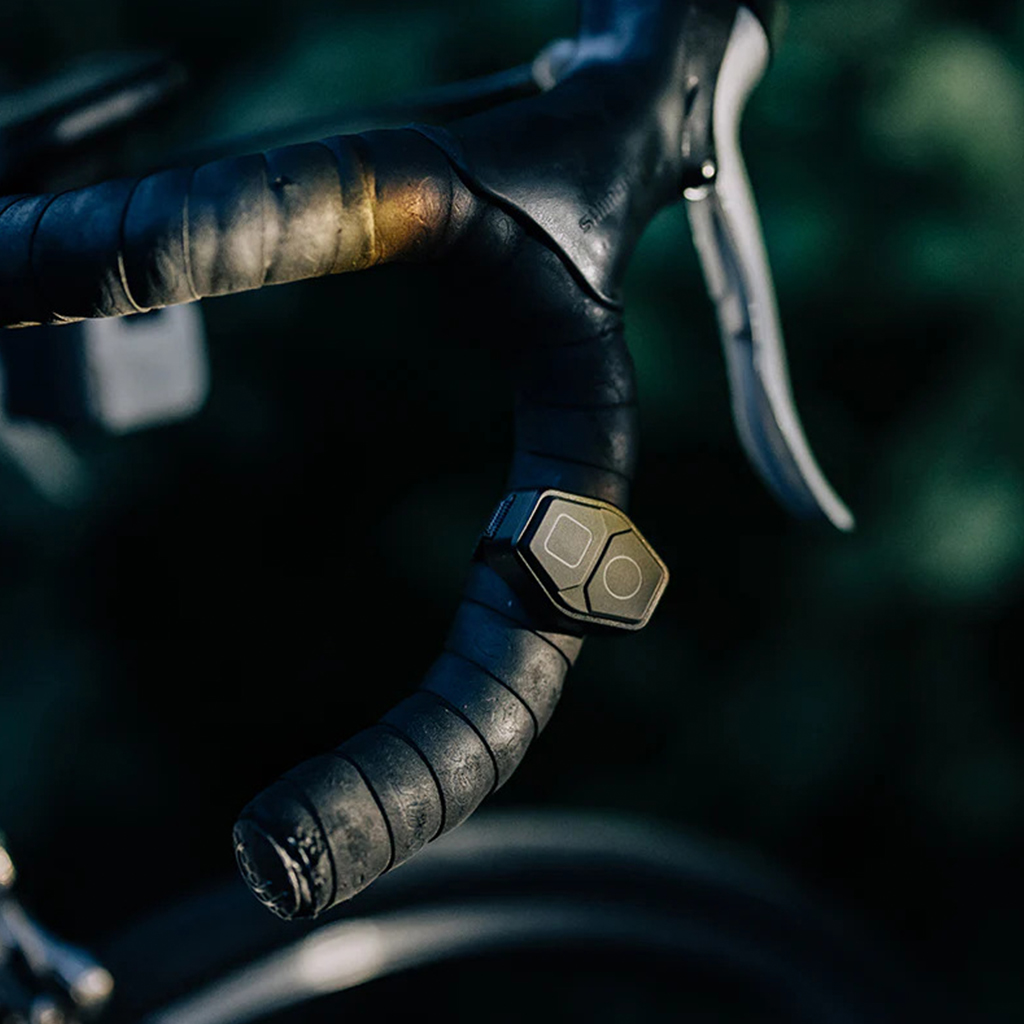

Wireless Remote Control:

• Pairing: Turn on the light, press and hold the "○""□" buttons on the remote for about 10 seconds until the indicator alternately flashes blue to enter pairing mode. Then, put the remote close to the light button until the indicators on the remote and light unit are constantly blue for 2 seconds, confirming a successful pairing.
• Before first use, please open the remote's battery compartment, remove the insulating spacer, reinsert the battery, then cover the battery compartment, and the indicator on the remote will flash blue.
• On/Off: Press and hold the "○"/"□" button for 1 second
• Adjust brightness: Click the "○" button
• Flash mode: Double click the "□" button
• Full output mode (1100LM): Click the "□" button to go into full output mode and click the "○"/"□" button to return to the previous mode
• The remote control will enter sleep mode if the light is turned off for more than 48 hours without any operation. Click the light's button to activate it or long-press the light's button to turn it on, and the remote control can work normally

Connect with the App:

• iOS users search for "Magicshine" in the "APP Store," and Android users search for "Magicshine" in "Google Play" to download the App.
• Turn on the Bluetooth of your smartphone and open the APP, click "Add New Devices" and find "M1-B0EVO_1100". Click "Add", then click "Connect the device".

App Settings:

• Click "Add" at the bottom to enter the "Device Settings" interface
• Customize "Always On," "SOS," "Blinking," and "Warning," as well as their corresponding brightness
• Up to 20 customized modes are supported
• *When you delete all customized modes in the App, the light will return to the factory default mode.
