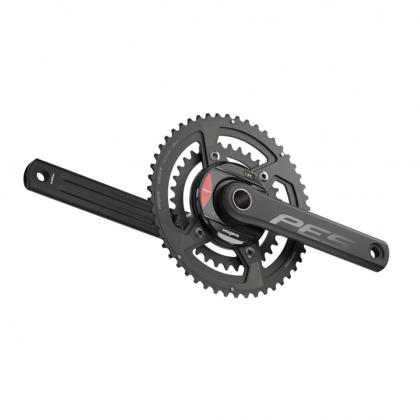

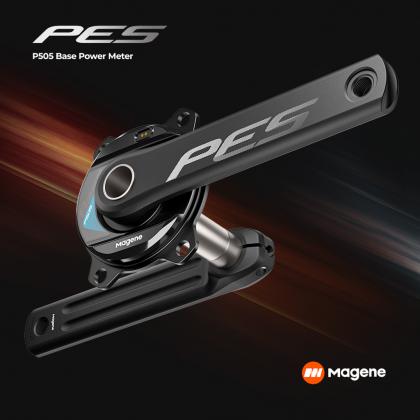

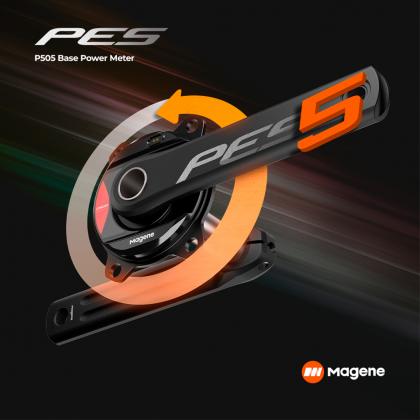

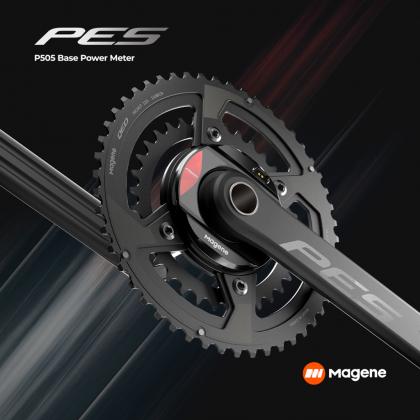

Magene PES-P505 Base Power Meter - Fuel your Desire for Speed!

Exquisite design and technology make PES P505 Base power meter have professional performance of stiffness and shifting. PES P505 Base power meter adopts symmetrical design and CNC integration technology, ensure the stiffness and strength significantly improved, having a long service life. The crank features triple hollow design to effectively reduce the overall weight and obtain excellent riding performance. PES P505 Base power meter adopts the widely popular 110BCD four-bolt specification and features 24mm steel spindle, which is also popular spindle on the market. It can provide optimum balance for crankset. SHIMANO users can install it directly without replacing the bottom bracket (Note - T47-86.5mm and BB386 bottom bracket is not compatible).

Features:

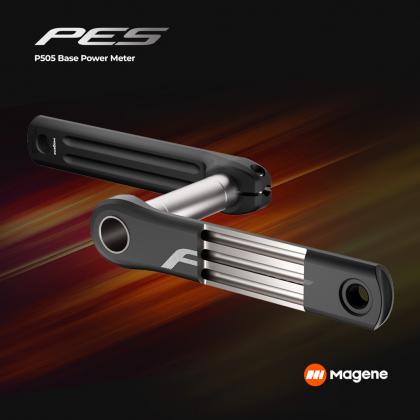

• Integral symmetric crank with ultra-stiff triple hollow design
• Integrally molded by applying precise NC for precise machining
• 110 BCD 4-bolt for lower weight and comprehensive compatibility

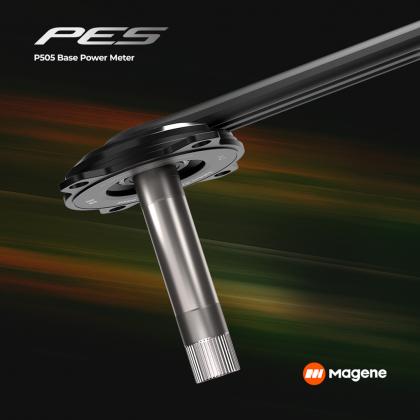

• 24mm steel spindle provides optimum balance for crankset
• $1.5% power accuracy with high-precision strain gauges and acceleration sensors
• 4 core data, evaluate cycling ability better

Specifications:

• Ave.Weight: 650g
• Crank Length: 165mm, 167.5mm, 170mm, 172.5mm, 175mm
• Power Accuracy: ±1.5%
• Bolt: 4 Bolts
• Power Range: 0~2500W
• Cadence Range: 20~200RPM
• Data Function: Power, Cadence, Left-Right Balance, Pedaling Smoothness
• Calibration: Automatic Calibration, Backpedal Calibration, Manual Calibration
• Wireless Protocol: ANT+, Bluetooth
• Waterproof Grade: IP67
• Q-Factor: 147mm
• Working Temperature: -10℃-50℃
• Battery Life: 200 Hours
• Charging: Magnetic Charging

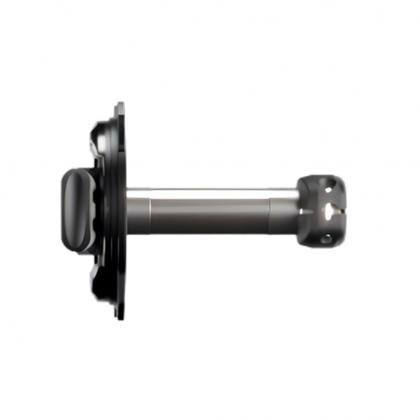

• Spindle: 24mm
• Warranty: 2 years

In the Box:

• Pair of PES Crankarms

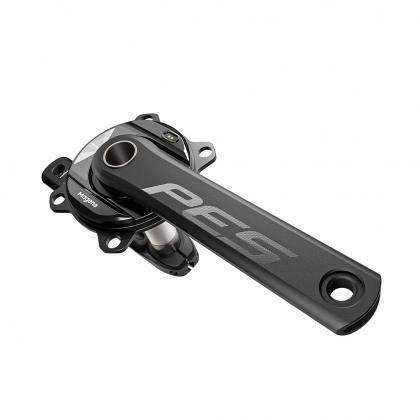

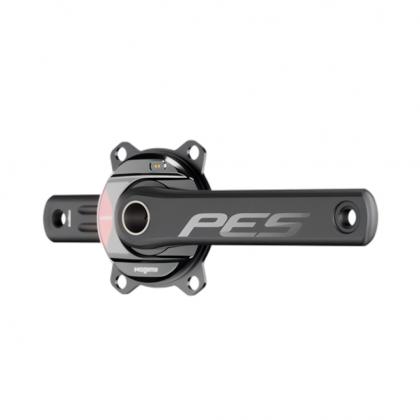

• Spider-based Power Meter
• Lock Ring of Conversion Kit
• Set of Chainring Bolts
• Magnetic Charging Cable
• Colorful Stickers x6
• User Manual
