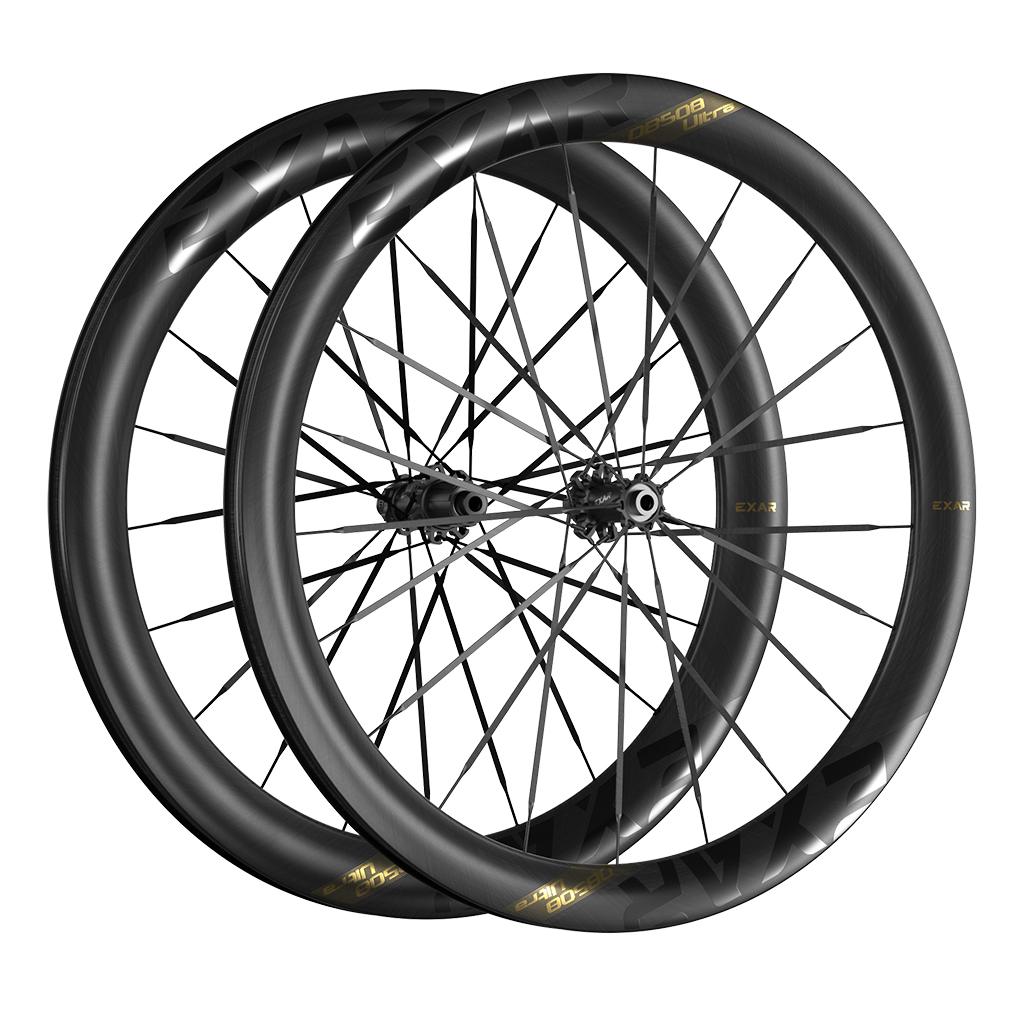

Magene EXAR Ultra DB508 Carbon Wheelset - Unleash Your Cycling Potential to Ultra!

EXAR Ultra wheelset is designed for ultimate performance. The wheelset is fully equipped with top-level materials from spokes to bearing, creating elaborate hub and rim. No matter in terms of appearance, quality or speed, EXAR Ultra has been improved to a higher level. The difference in details will take riders to the lead on the field.

Overview:

• Lower front wheel and higher rear wheel design ensures better controlling
• Carbon fibre spokes have better stiffness and lighter weight
• 30mm outer rim width to improve aerodynamic efficiency
• Ceramic bearing lowers resistance and weight
• 36-tooth rachet features larger engagement surface
• Optimal hub structure retains lateral stiffness and durability
• Rim and spokes are all made of HI-MOD T800 carbon fibre
• Ultralight weight 1,375g
• Warranty: 2 years

Features:

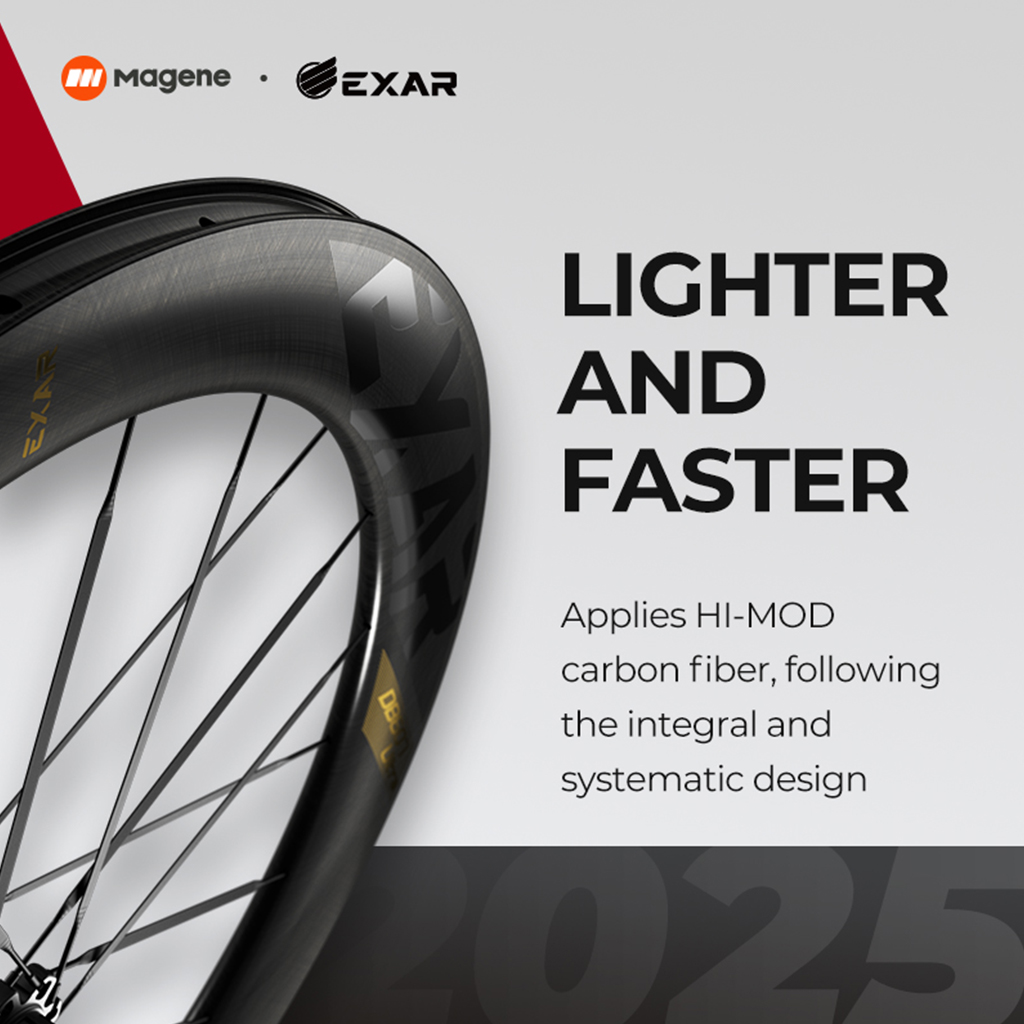

Integral Design, Lighter and Faster
Riders want wheelsets that are lighter, stiffer, and faster. EXAR engineers have risen to the challenge with Ultra wheelset to help riders ride faster in the race. The EXAR Ultra wheelset applies HI-MOD T800 carbon fiber, following the integrated and systematic design. The primal materials allow a great reduction in weight while retaining outstanding stiffness. These help riders get a smooth start and faster acceleration.

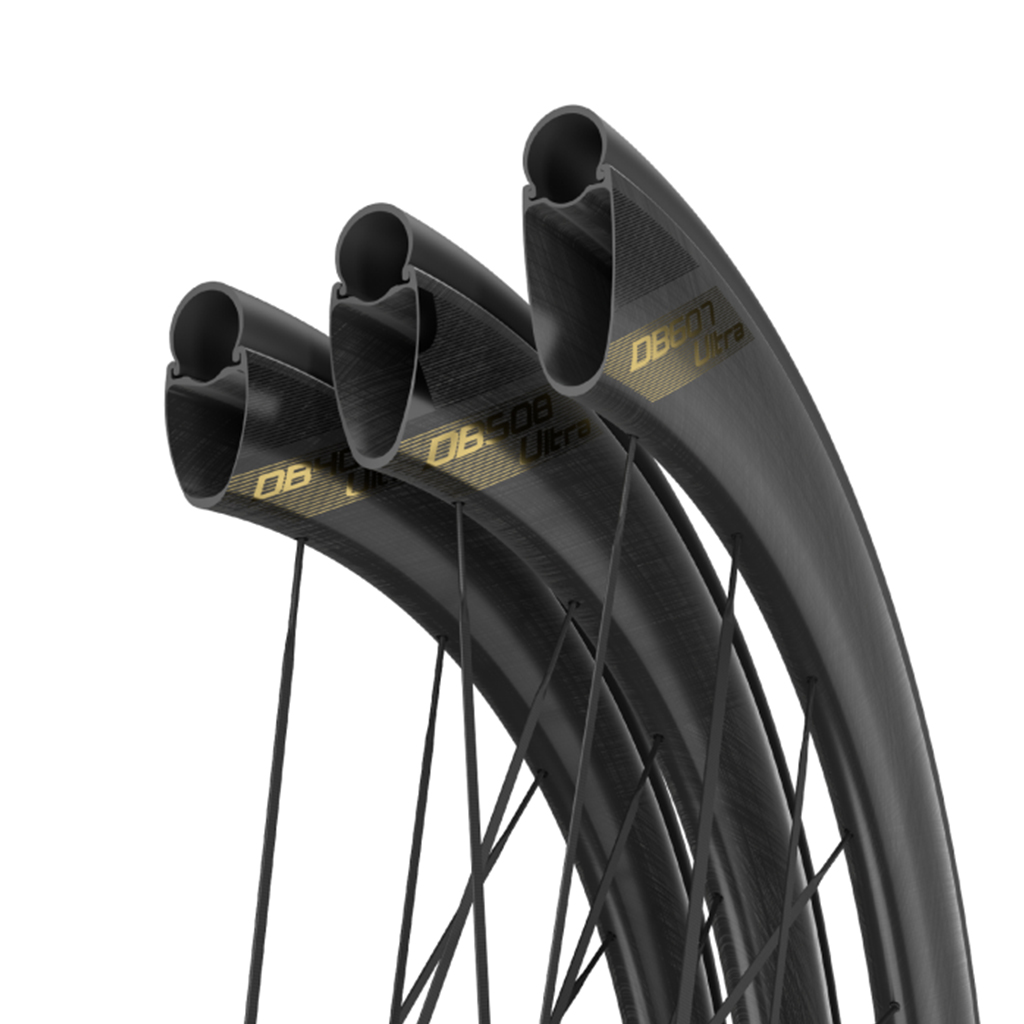

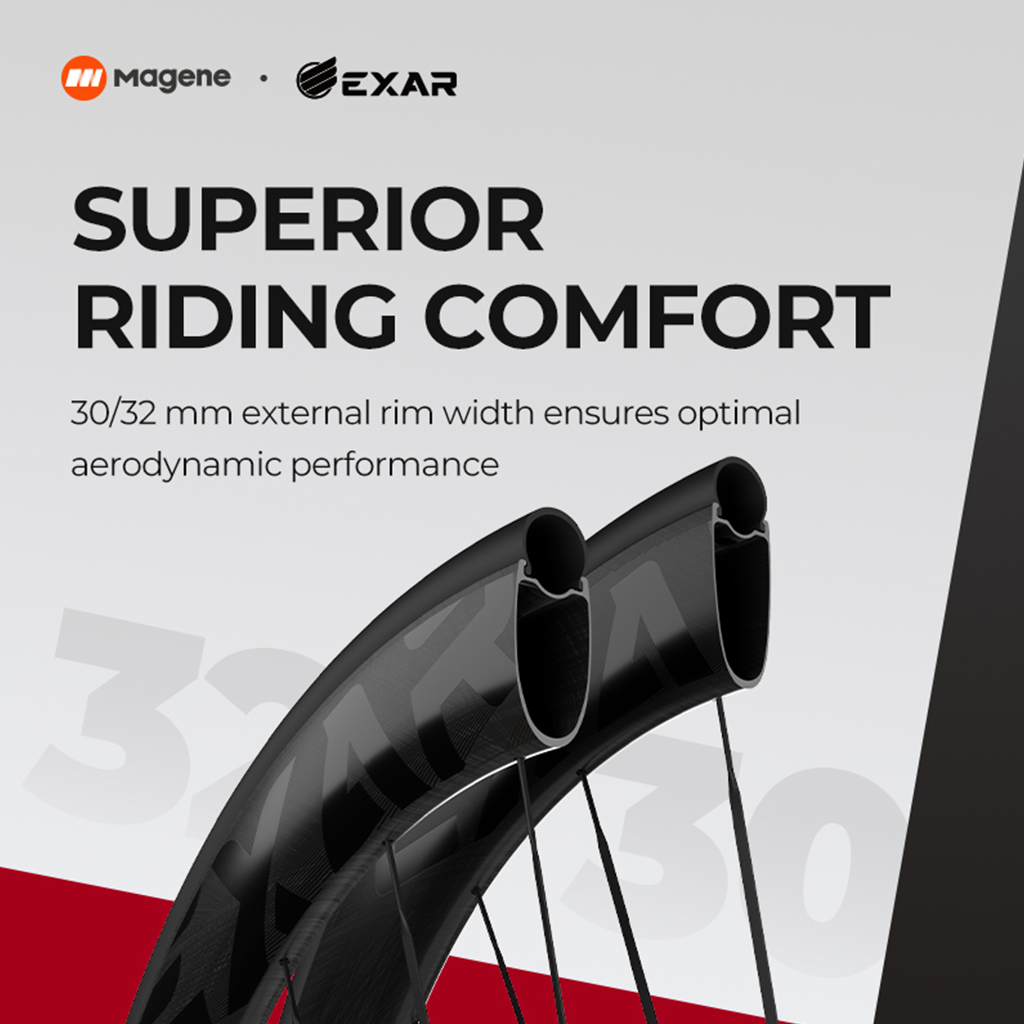

30mm Wide Fat Rim, Aerodynamic And Comfortable
A 30mm width rim and 23mm internal width are purely designed for disc brake structure. It ensures optimal aerodynamic performance in complex wind conditions, improving stability in crosswinds as well. After installing the 28-32c tire, the contact surface between the tire and rim is flat. As a result, It creates a flatter aerodynamic surface and enhances cycling comfort.

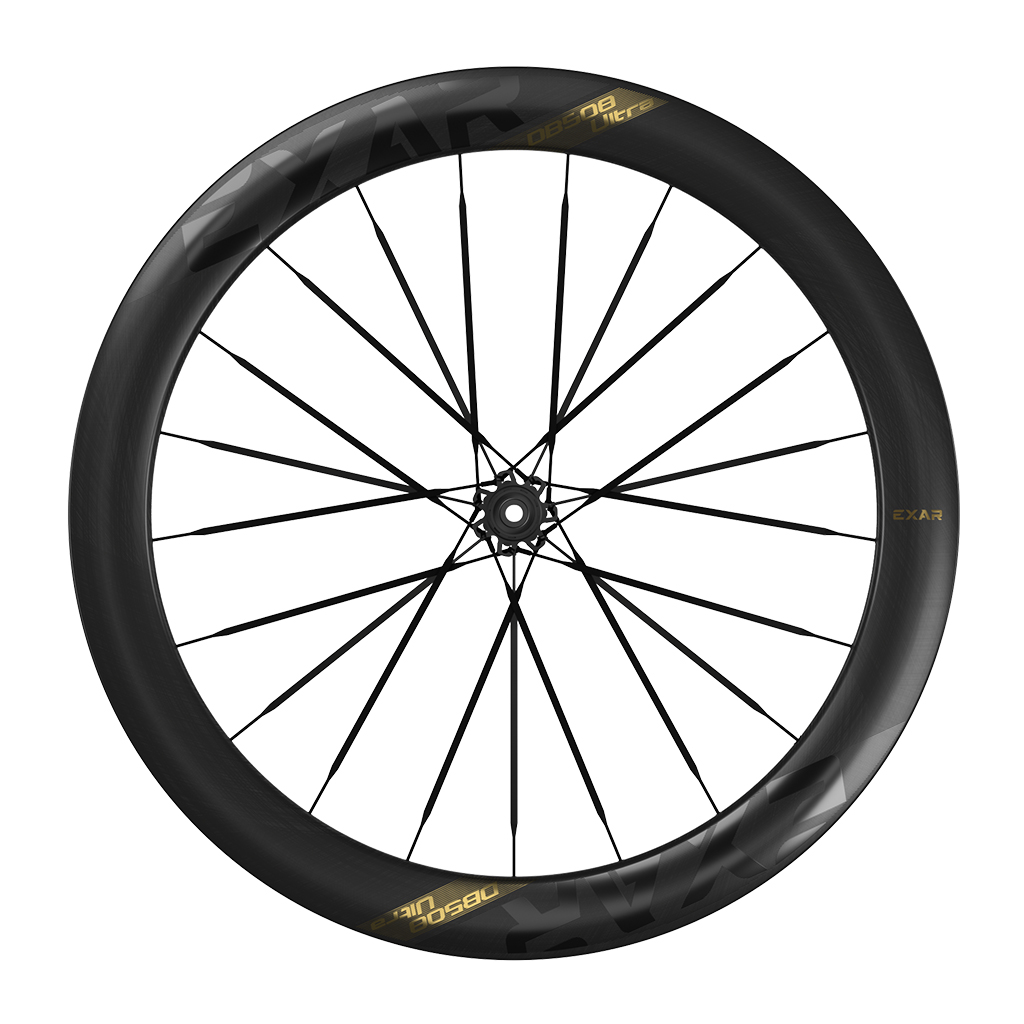

Lower Front Wheel and Higher Rear Wheel Design
The EXAR Ultra wheelset features a new design concept of a low front wheel and a high rear wheel. While ensuring high inertia of the rear wheel, also keeps the controllability of the front wheels, allowing the rider to ride more efficiently and stably.

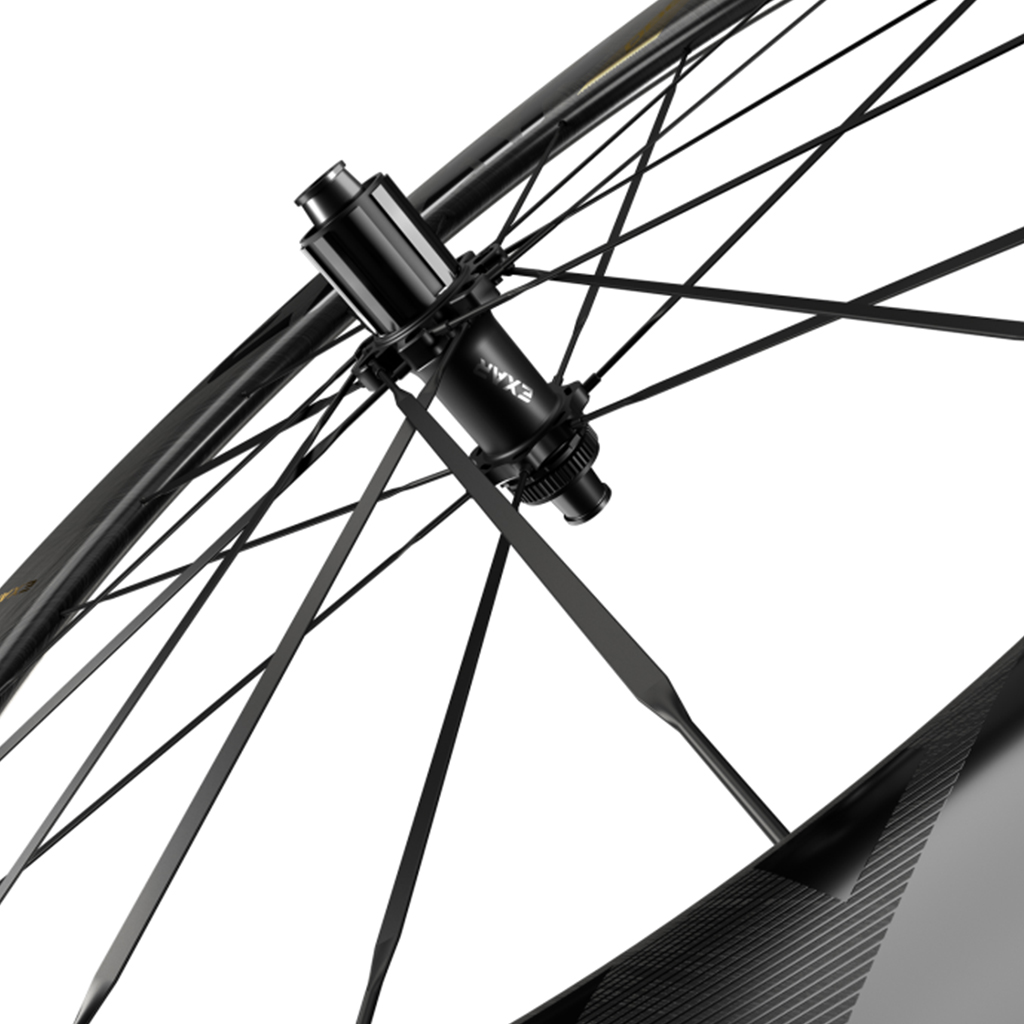

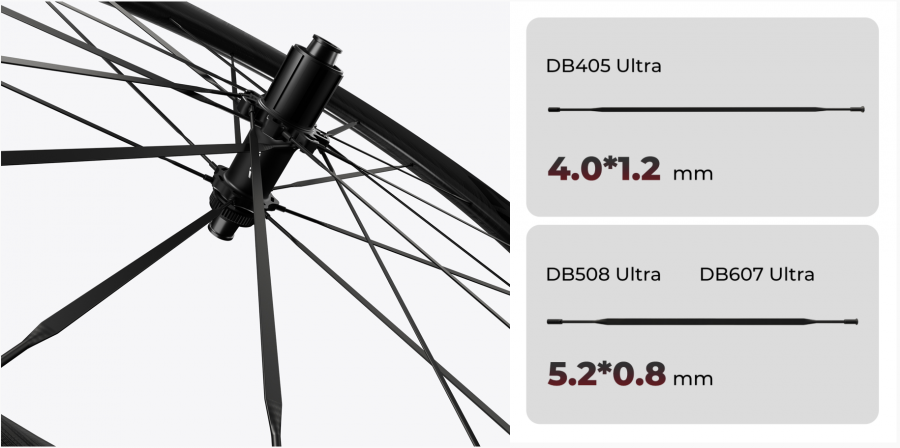

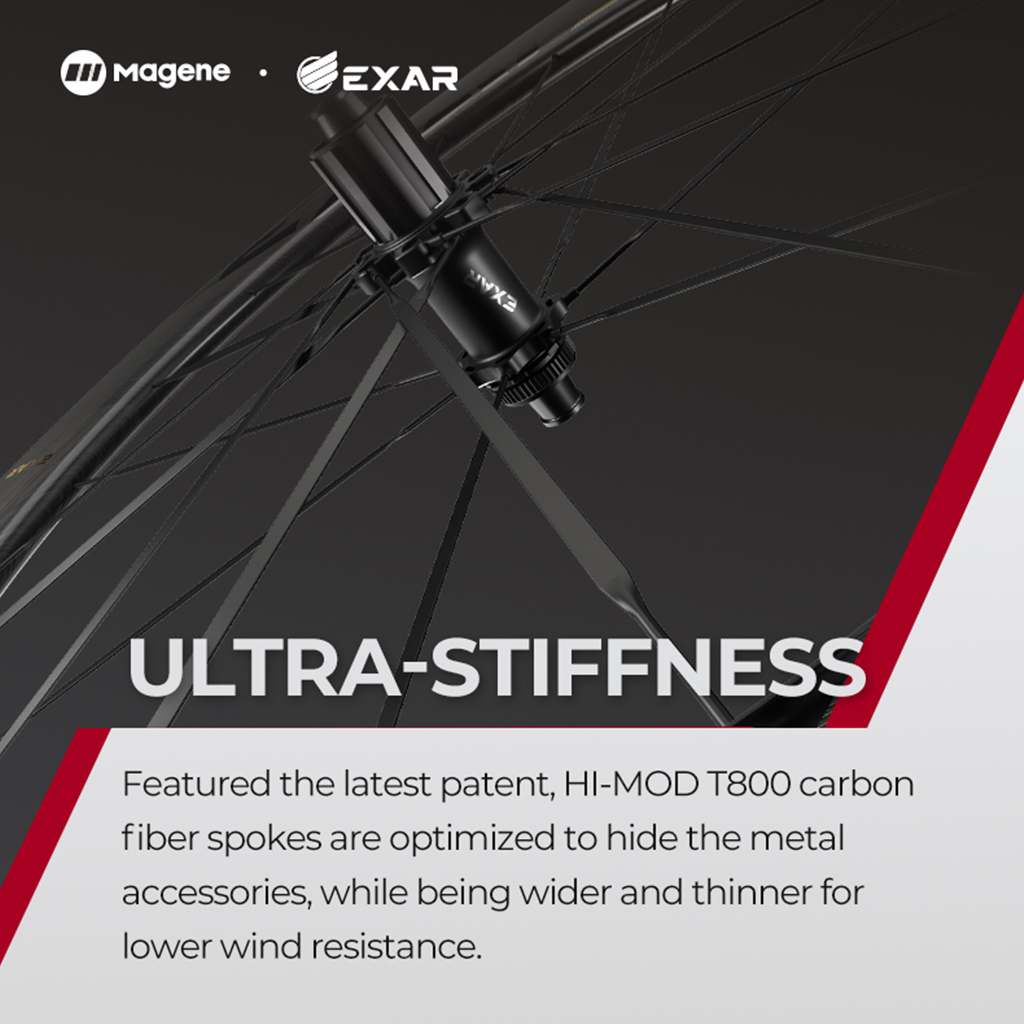

Full Carbon Fiber Spokes, Contribute Ultra-Stiffness
EXAR Ultra carbon fiber wheelset features HI-MOD T800 carbon fiber spokes. Each spoke weighs only 2.8g, 30% lighter than top-level steel spokes. Carbon fiber spokes have higher tensile strength and can withstand 30% more tensile force. Lower strength loss of transmission brings higher driving efficiency. The wheelset applies a 2:1 balanced lacing pattern, which distributes tension perfectly. The spoke tension of the rear-wheel drive side is 130kgf±10%, and the non-drive side is 110kgf±10%.

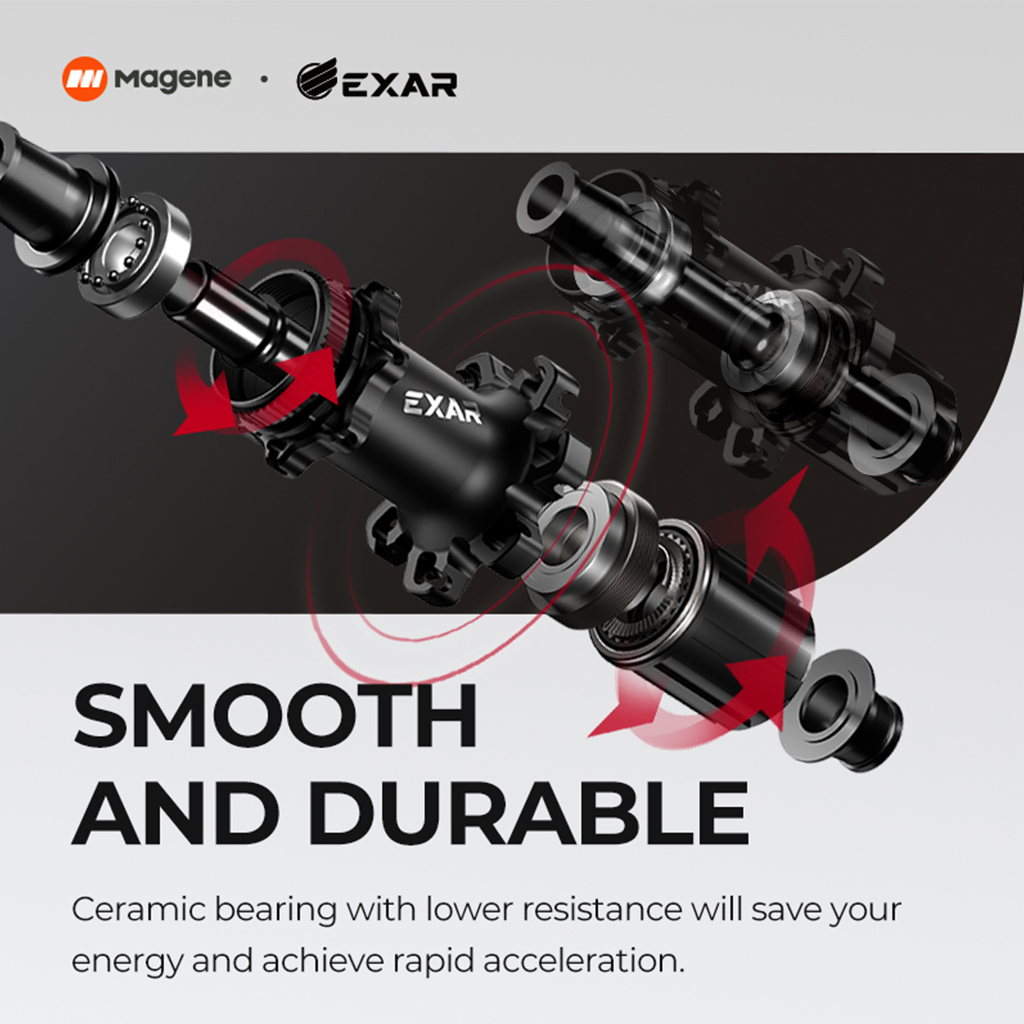

Ceramic Bearing, Smooth And Durable
Compared to steel, ceramic is lightweight with low resistance, which can be used to make smoother bearings. A well-made ceramic bearing has lower resistance, thus saving you energy and allowing rapid acceleration. The contact surface of the bearing and body is processed with smooth edges to create precise synergy.

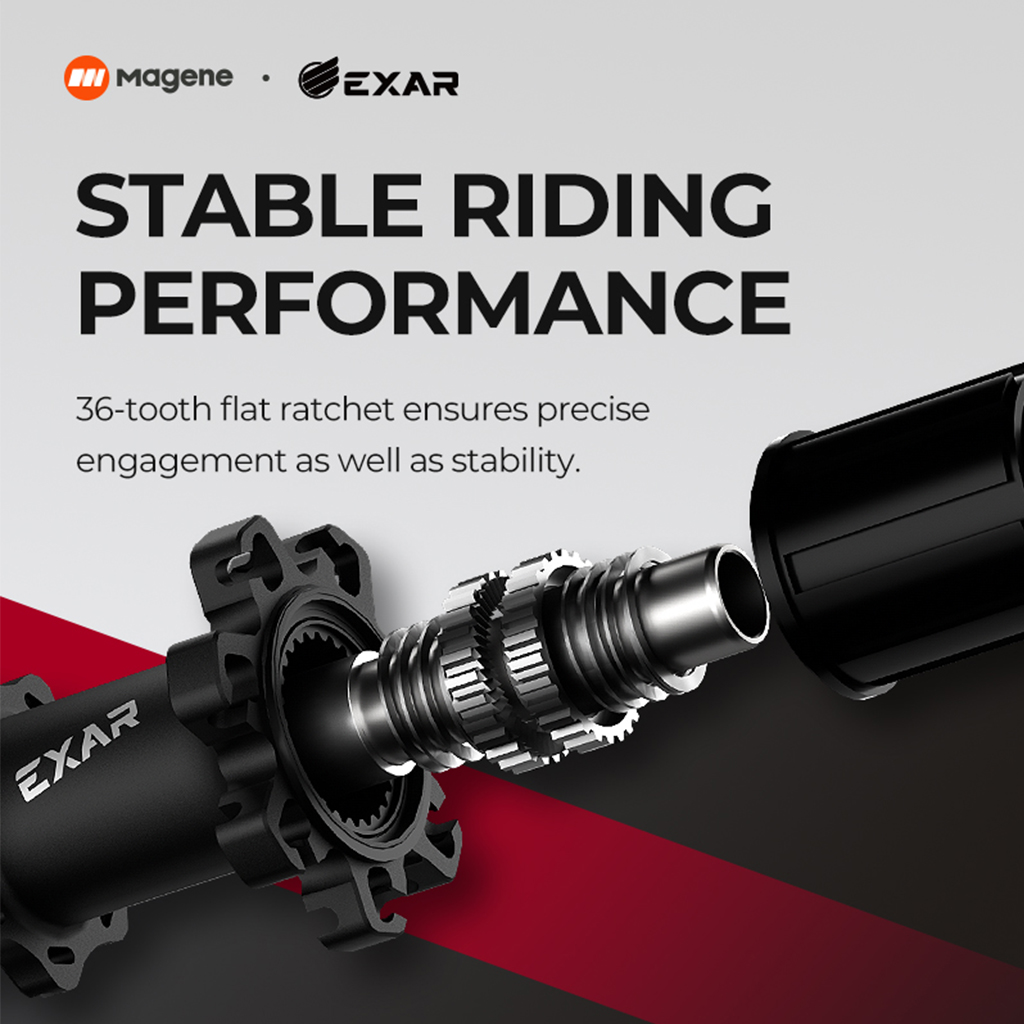

Flat Engagement Ratchet Design
Details reveal the optimal configuration. Adopt a 36-tooth flat ratchet, which has tighter engagement with a larger surface. This can make the ratchet more durable, with fast and precise engagement as well as stability.

Professionally Tested, Approved by UCI
The flange diameter has been calculated scientifically in terms of the stiffness of carbon fiber spokes. We reduce the amount of stress concentration point where the spoke contacts with the hub, thus improving driving stiffness and extending endurance.

Specifications:

• Product Name: EXAR Ultra Series Carbon Wheels
• Model: DB508 Ultra
• Brake: Disc Brake

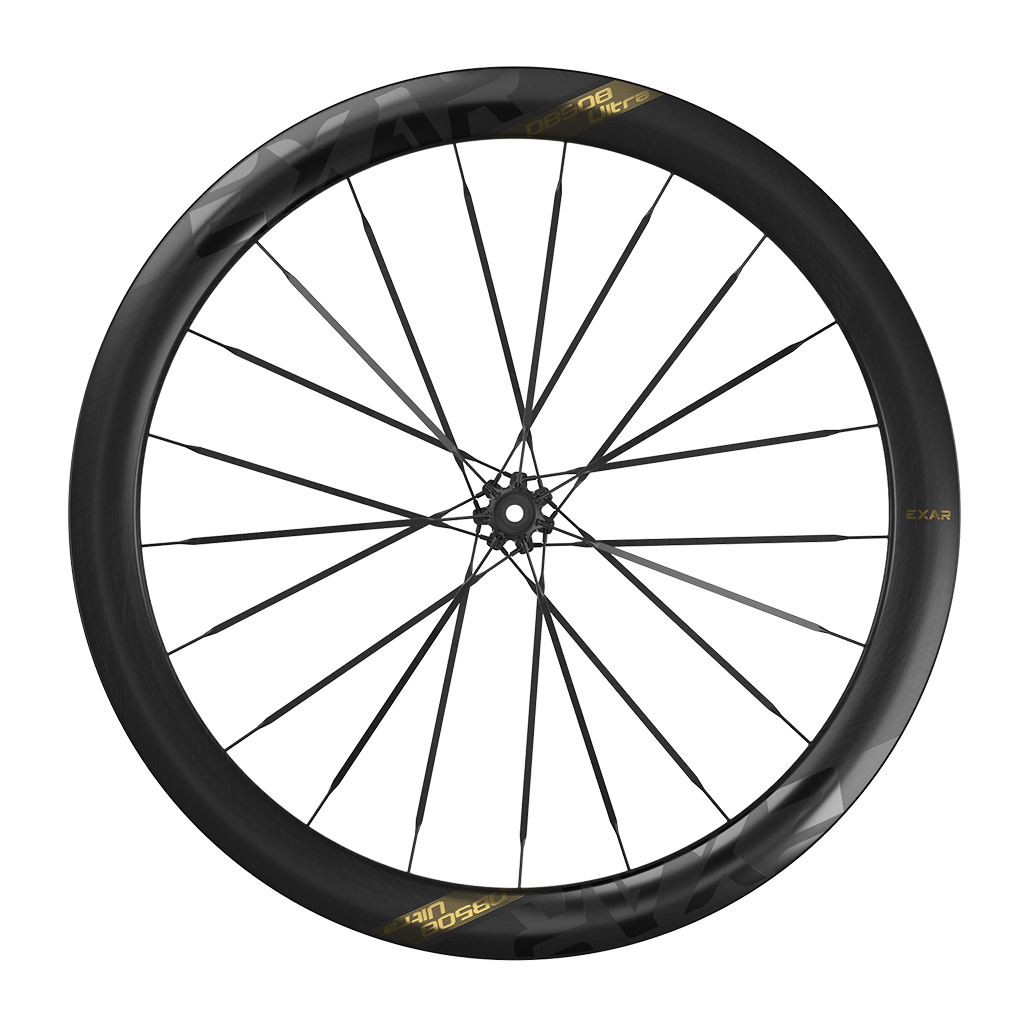

• Height: Front Wheel 50mm, Rear Wheel 58mm
• External Rim Width: 30mm
• Internal Rim Width: 23mm
• Rim Material: HI-MOD T800 Carbon Fiber Spoke: HI-MOD T800 Carbon Fiber
• Front Wheel Spoke Tension: 110kgf±10%
• Rear Wheel Spoke Tension: Drive Side 130kgf±10%, Non-drive Side 110kgf±10%
• Front Wheel Spoke Lacing: 21H 2:1, Brake Side×2, Non-brake Side Radial Lacing
• Rear Wheel Spoke Lacing: 21H, 2:1, Drive Side×2, Brake Side Radial Lacing
• Ratchet: 36T (Compatible with DT System. Replaceable Ratchet with Different Tooth Amount)
• Frame Spacing: 100/142mm thru-axle
• Freehub Standard: Shimano 11-speed (Campagnolo N3W and Sram XDR Freehubs are available separately)
• Compatible Cassette: SHIMANO 8-12 speed, SRAM 8-12 speed (Available separately for XDR cassette body for 12-speed)
• Compatible Tire Type: Clincher Tire, Tubeless Tire
• Maximum Tire Pressure: 120psi for Clincher Tire, 110psi for Tubeless Tire
• Compatible Tire Width: Compatible with 25c Tire and Above, Suggested Tire Width is 28c - 32c
• Weight: 1375g ±3%

In the box:

• Carbon fiber front wheel x1
• Carbon fiber rear wheel x1
• Tubeless rim tape x2
• Rim plug x50
• tubeless tire valve x2
• User manual x1
