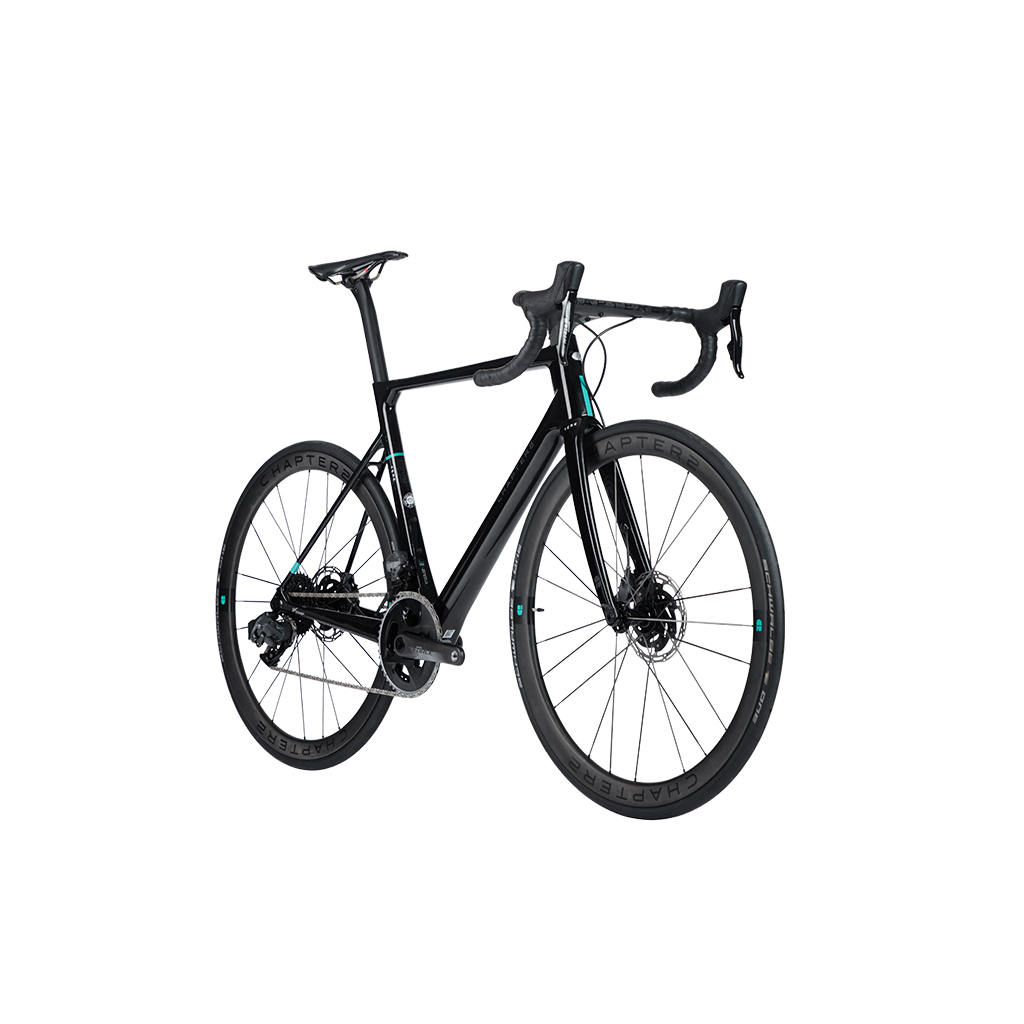

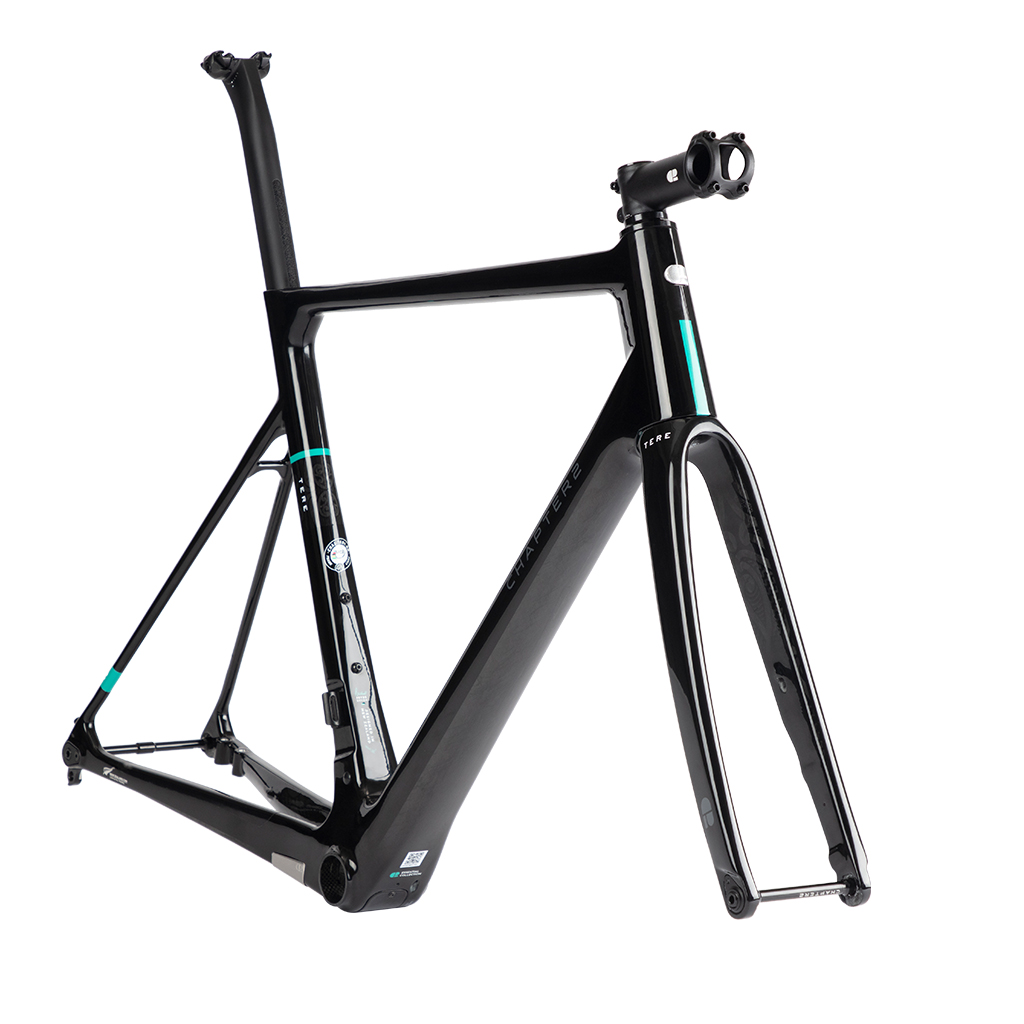

About the Frame:

The TERE is the quintessential Performance All-Road frame designed to excel in all conditions whether you fit into the weekend warrior or a seasoned pro genre. The word TERE means “be quick, swift and fast” in Maori and the TERE delivers on that promise on every occasion.

The TERE sits in our All-Road category of frame platforms. Its unique silhouette has been carefully engineered to ensure that its stiffness to weight ratio is perfectly dialled for unrivalled performance whether you are racing your local crit, climbing the most epic mountain or just out for your local coffee shop ride.

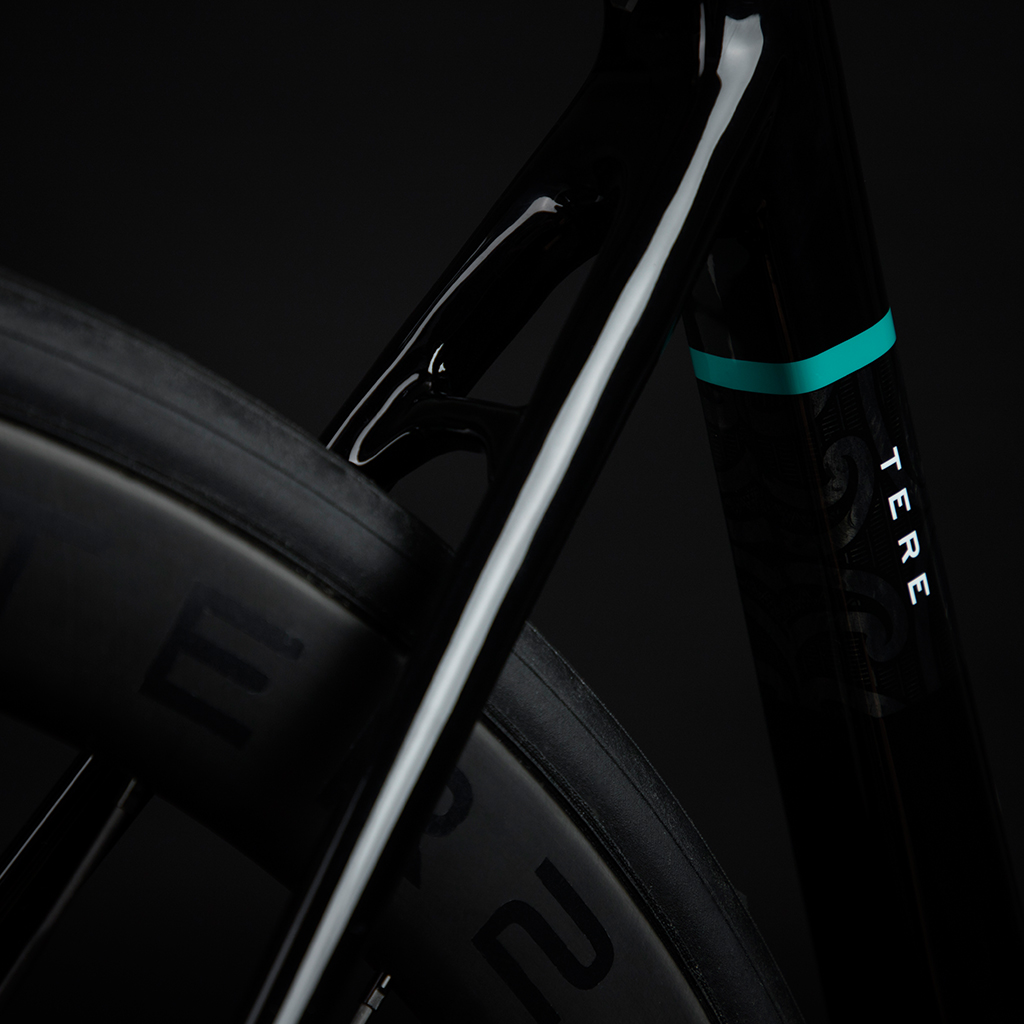

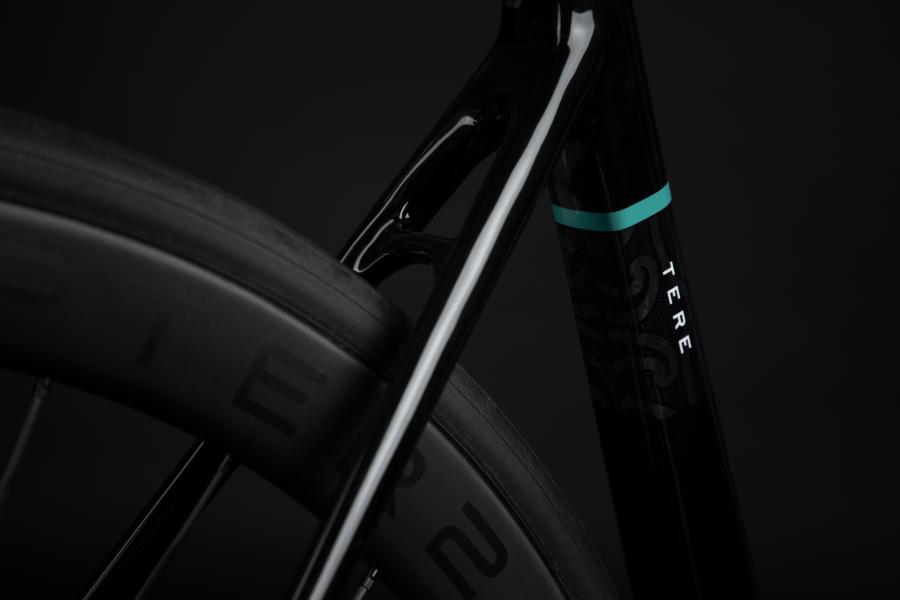

With sunrise to sunset riding in variable conditions in mind, the TERE’s vibration dampening Seatstays and Seatpost combined with its more upright stance will mean that you’ll be able to give it everything, all-day long.

Available in both Rim and Disc versions with subtle yet effective Kamm-Tail profiles tested at Auckland University’s Wind Tunnel, the use of high tensile directional carbon fibre in the Headtube will mean that you can throw the TERE into any tight corner knowing it will track true and confidently every time.

Model Benefits:

• Stiff Racing Frame: Improved Power Transfer & Precise Steering
• Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
• High Modulas Carbon (Headtube): Increased Cornering Performance
• High Modulas Carbon (BB): Increased Power Transfer
• Dropped Stays: Improved Compliance for Endurance Rides
• Rim & Disc Options: Both Options are Available
• Frameset Only: Bespoke & Personal
• Limited Edition: Exclusivity

What you Get:

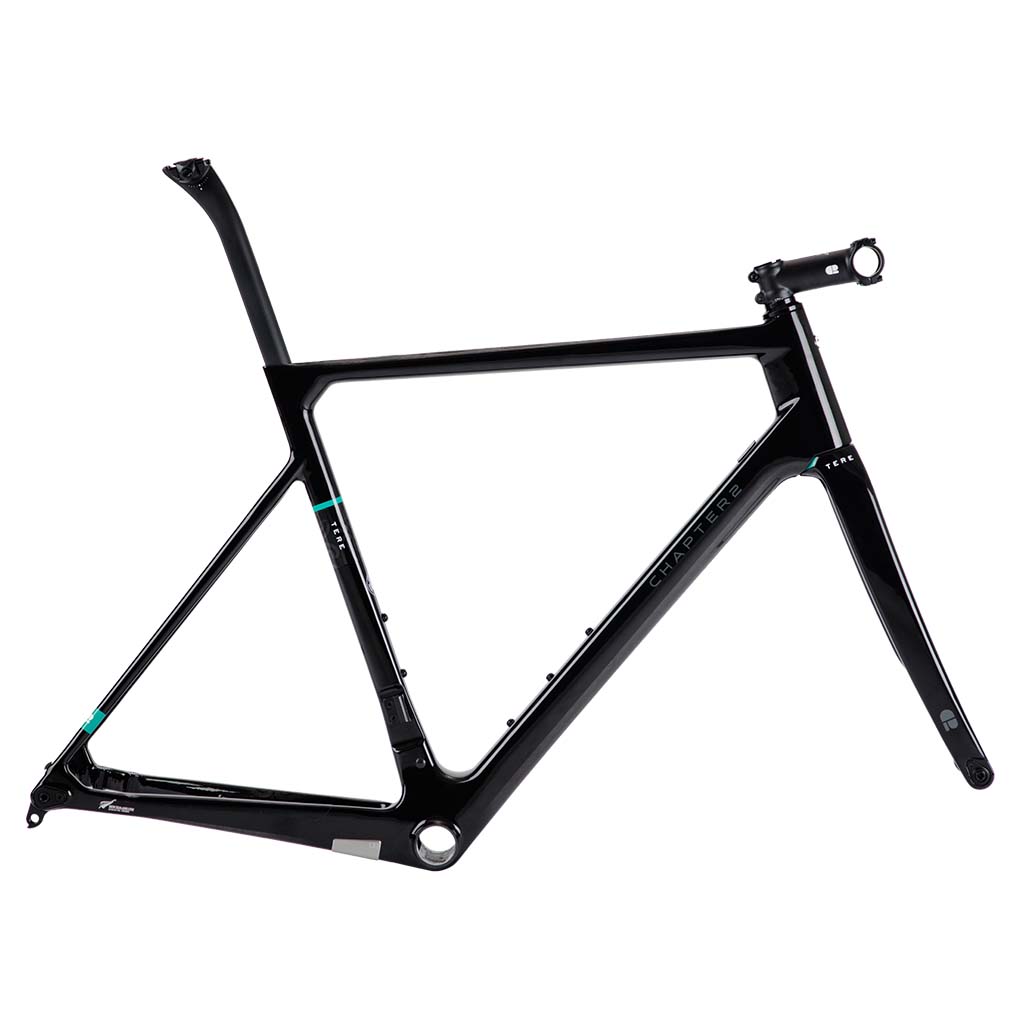

• Frame
• Fork
• C2 fork expansion bolt
• Headset
• Headset spacer kit
• Seatpost
• Thru Axles

Frame Specs:

• Carbon: Toray® T700, T800 & 3K Directional Carbon
• Frame 5 Sizes: XS, S, M, L & XL
• Fork 2 Sizes: XS, S (53mm offset) and M, L, XL (43mm offset)
• Frame Weight: 950g (Rim) & 1015g (Disc) Size M +/- 3%
• Fork: 390g (Rim) & 425g (Disc) Uncut +/- 3%
• Seatpost: 198g +/- 3%
• Stem: 80mm, 90mm, 100mm, 110mm and 120mm (+/-7°)
• Headset: CHAPTER2 Tapered 1-1/8” – 1.5”
• BB: Press Fit BB86.5
• Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
• Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
• Tire Clearance: 25mm (Rim) & 28mm (Disc)
• Saddle Rail: 7mm Round & 7x9mm Oval
• Disc Thru-Axle Spec: Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
• Safety Standard: EN ISO 4210:2014

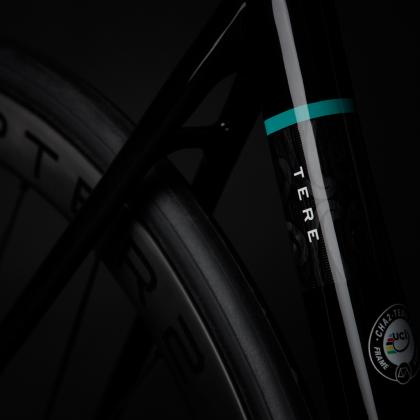

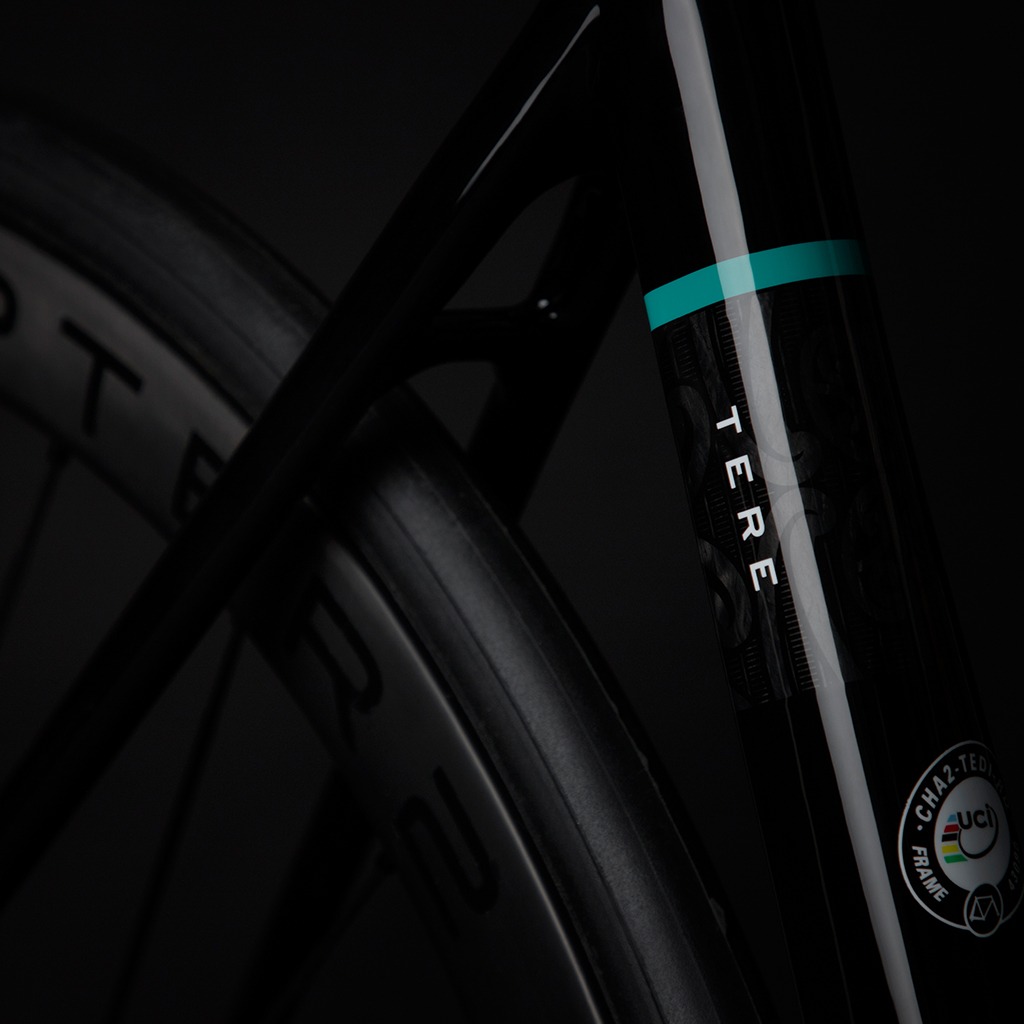

• UCI Accreditation: UCI Approved

Torque Specs:

• Saddle Rail: 12Nm
• Integrated Seatclamp: 10-12Nm
• Stem (Steerer): 6Nm
• Stem (Handlebar): 6Nm
• Front Derailleur Hanger: 3Nm
• Rear Derailleur Hanger: 2Nm
• BB Cable Guide Cover: 1Nm
• Water Bottle Cage Bolts: 3Nm

Chapter2 Lifetime Warranty Policy:

All CHAPTER2 framesets (frame, forks, seatpost, and other parts provided with frame at time of purchase) and MANA Bar and associated parts are covered under our global lifetime warranty program. Your warranty period begins from the time of purchase.

CHAPTER2 warrants that your frame, fork, and/or seatpost and other parts supplied with the frame are free of any manufacturer’s defects and are only applicable to the original purchaser and may not be assigned.

This warranty only applies to CHAPTER2 products purchased from our website or from an authorised dealer or online store. This warranty commences from the date of purchase, is offered only to the original retail purchaser, and is not transferable.

Exceptions:

Consumable parts/accessories such as hangers, cable stops, seatclamps, saddle clamps, etc. are not covered under this warranty.

The paint and decals on your CHAPTER2 frame, fork, and/or seatpost and other CHAPTER2 branded parts/accessories are only covered for a period of 2 years from the time of purchase.

The warranty excludes damage whilst the frame, fork, and/or seatpost are being used on a stationary trainer.

Damage caused by abuse, misuse, improper assembly, rental, improper or insufficient maintenance, accident, impact, corrosion, use of aggressive cleaners, use with non-compatible components, improper repairs, and wear and tear is not covered under this warranty.

For complete details of Chapter2 Lifetime Warranty Policy, Click Here
