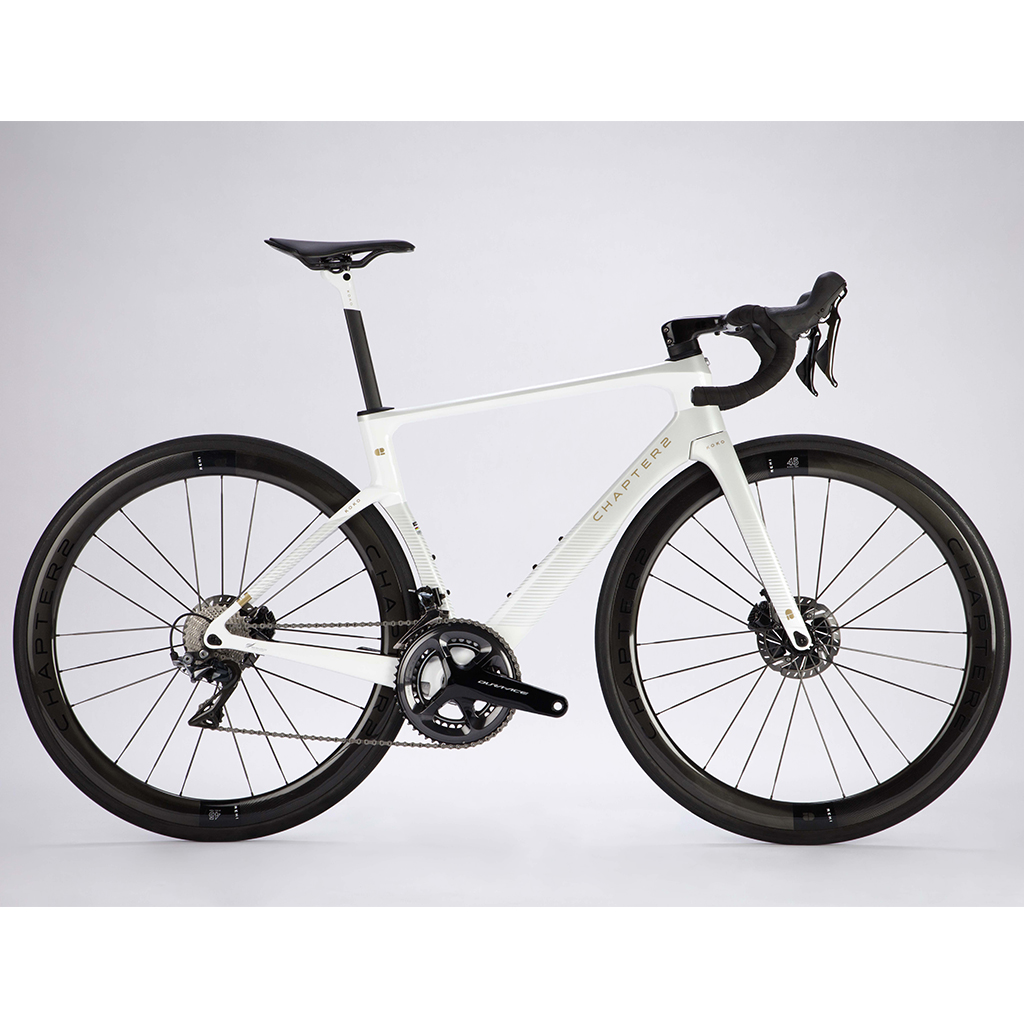

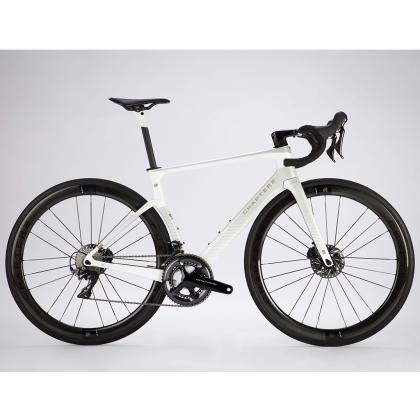

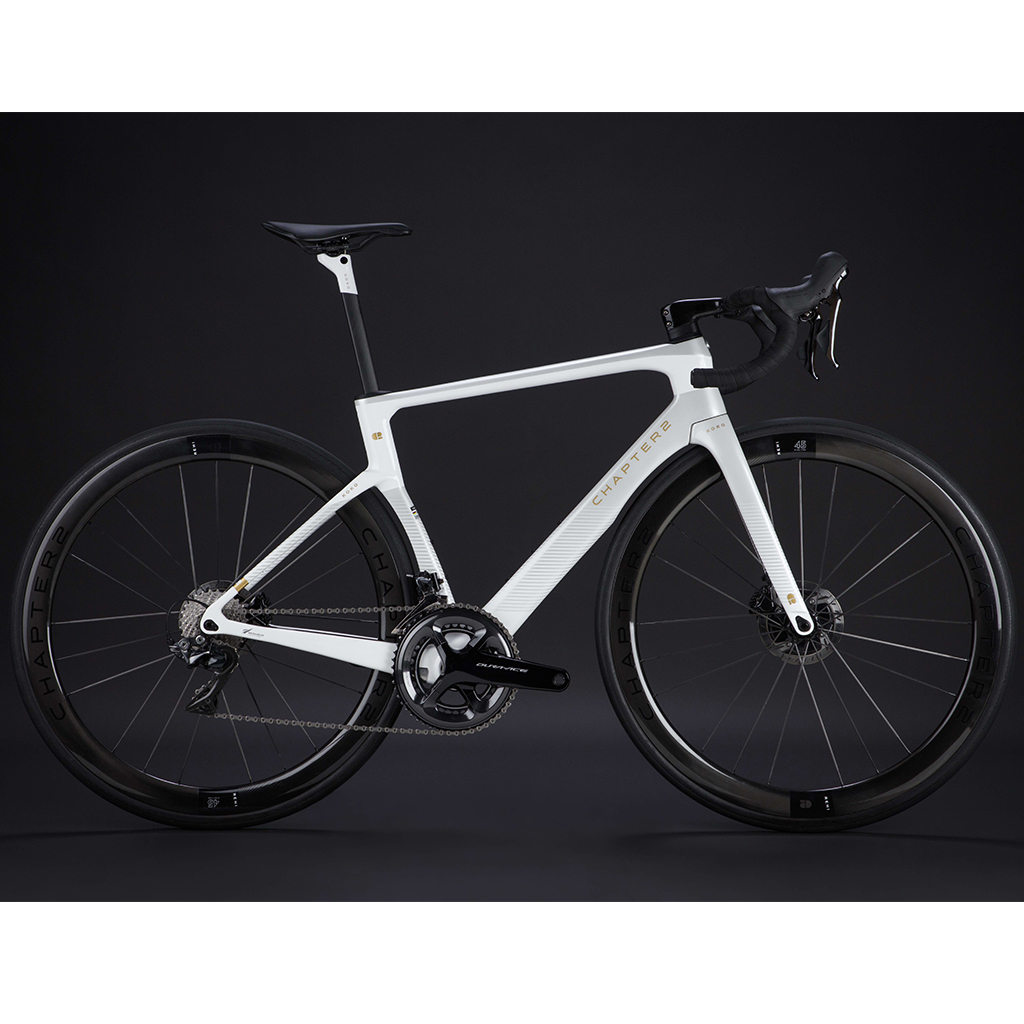

About the Frame:

Air resistance is the single most critical factor that separates a fast bike from a bike that cuts through the air like a bird. KOKO means “to soar, fly” in Maori and as the name suggests, our Top Tier Aero Road model will have you smiling from ear to ear from the sheer thrill of unadulterated speed.

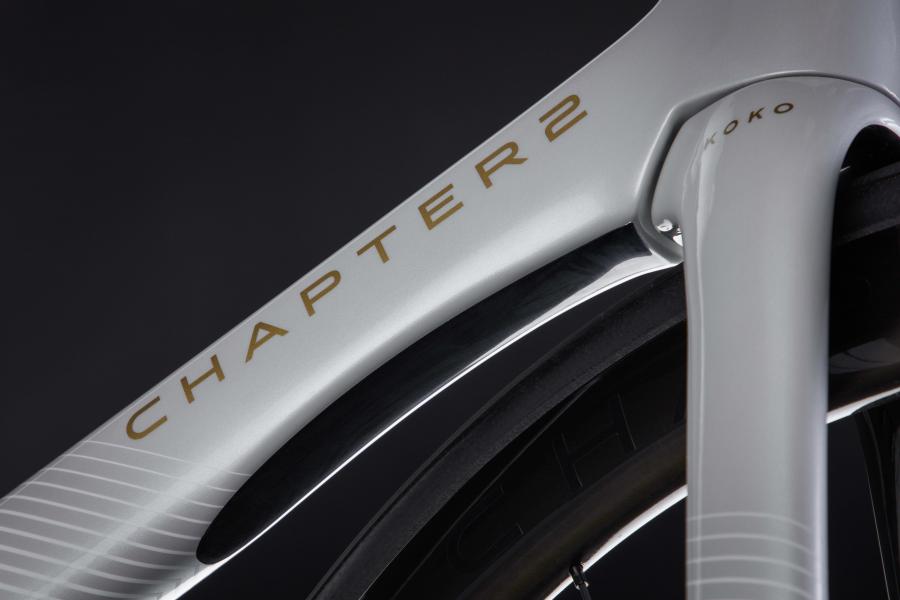

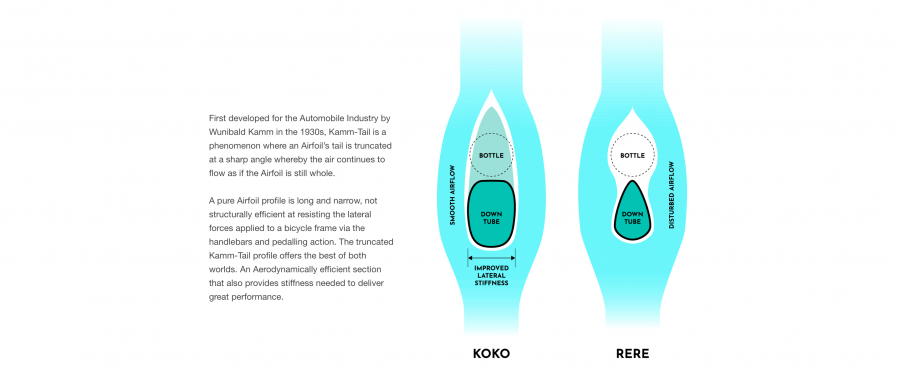

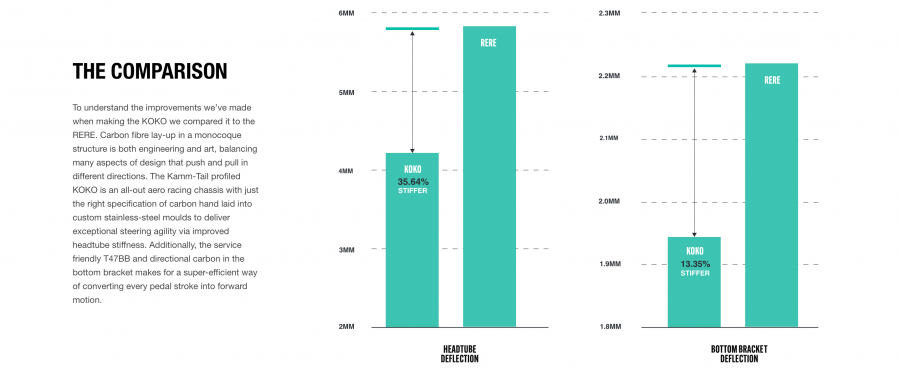

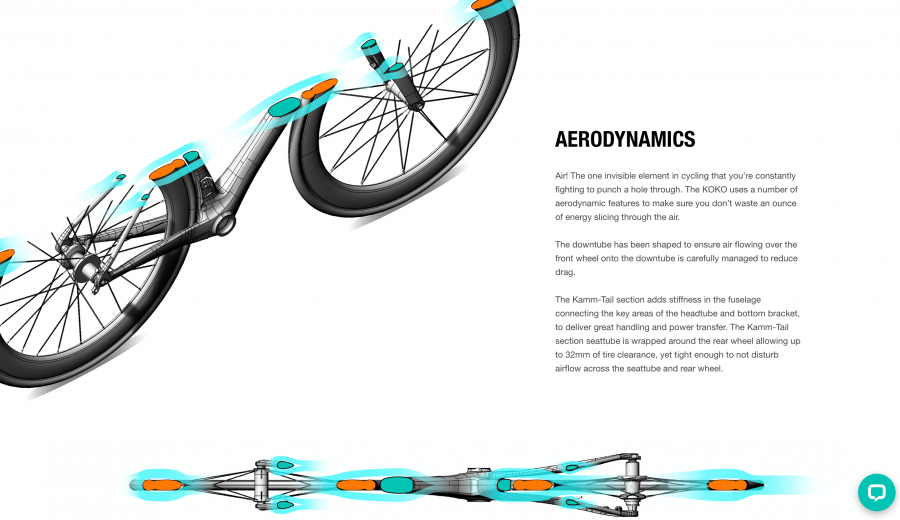

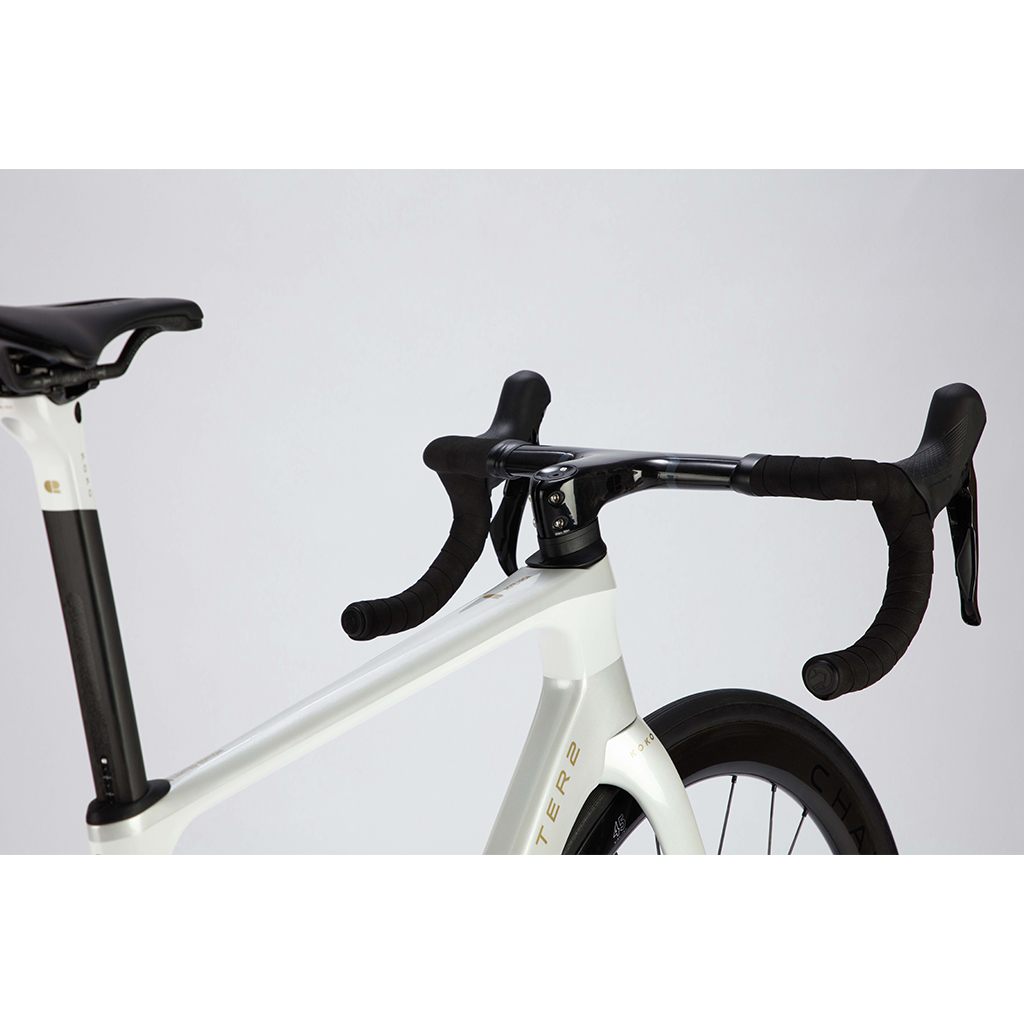

Taking the RERE’s Aero credentials to the next level, the KOKO now has Kamm-Tail profiles incorporated into the downtube, increasing the overall stiffness of the bottom bracket and headtube by 13.35% and 35.64% respectively. Married to our aerodynamically optimised and ergonomic MANA bar, the combination makes for a super sleek high-performance racing machine.

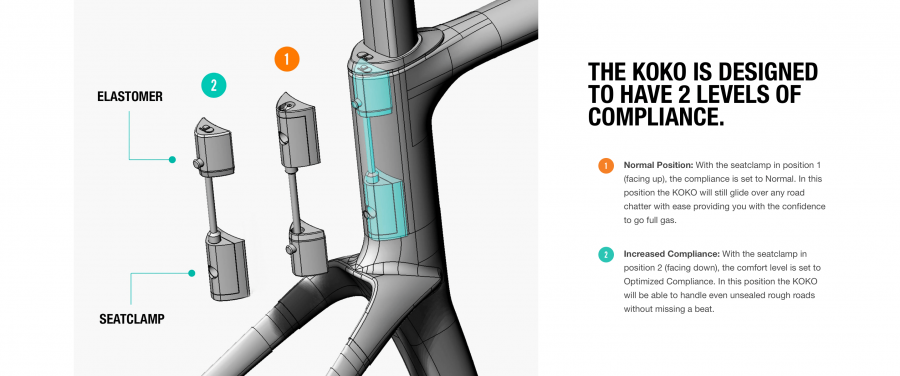

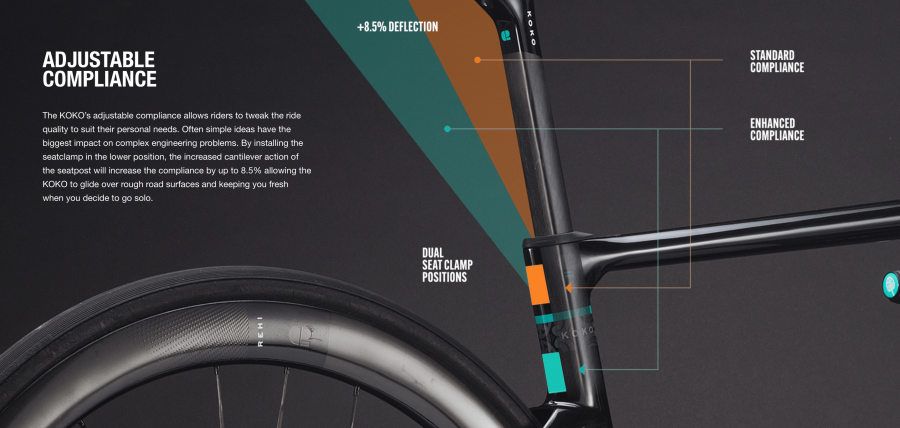

The KOKO also comes with adjustable compliance via a dual position seatclamp configuration that can be switched from stiff to buttery smooth depending on the rider’s personal needs and/or road conditions.

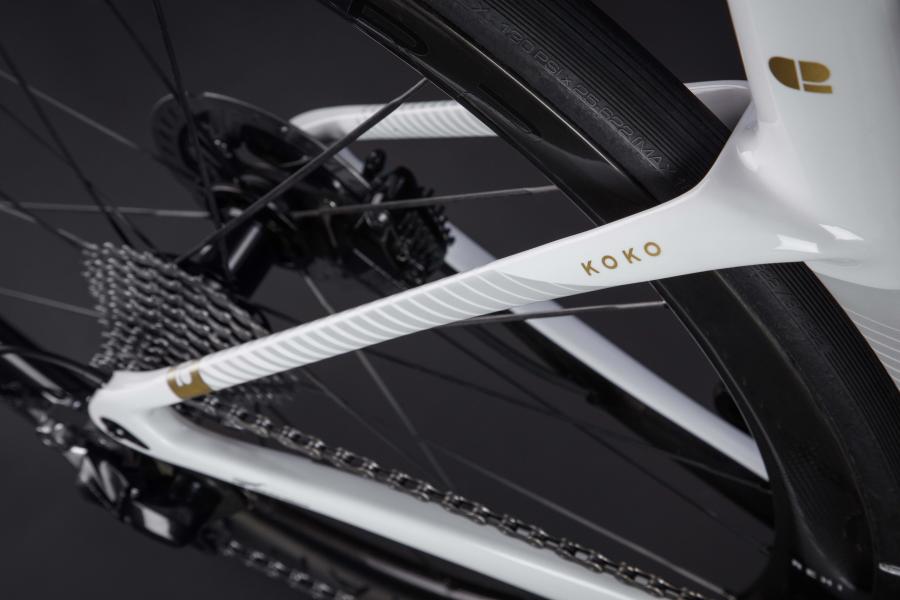

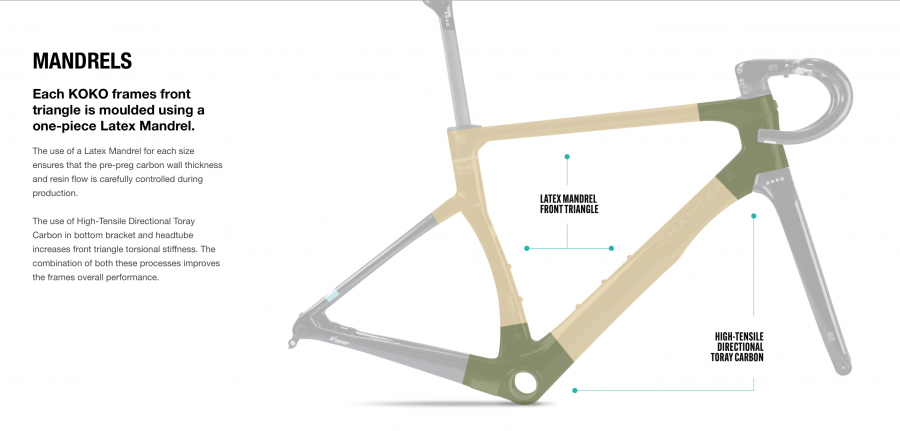

Further engineering gains via the use of Latex Mandrels for the front triangle and T47 BB creates a super rigid platform for transferring every watt you produce into forward motion. Other small yet well-considered details such as the Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.

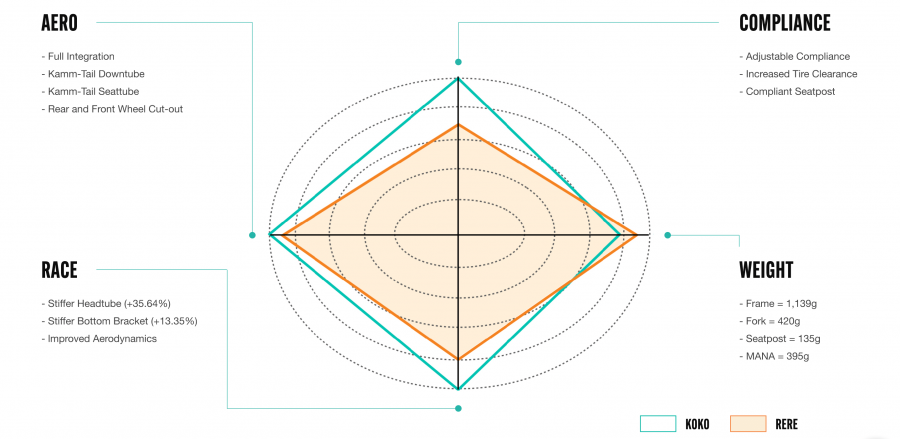

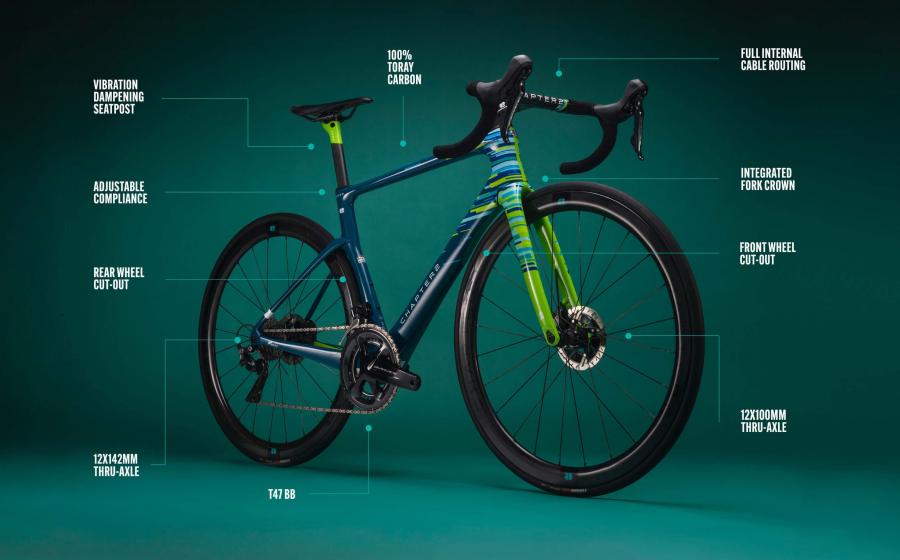

Model Benefits:

• Aero Racing Frame: Aerodynamic Performance

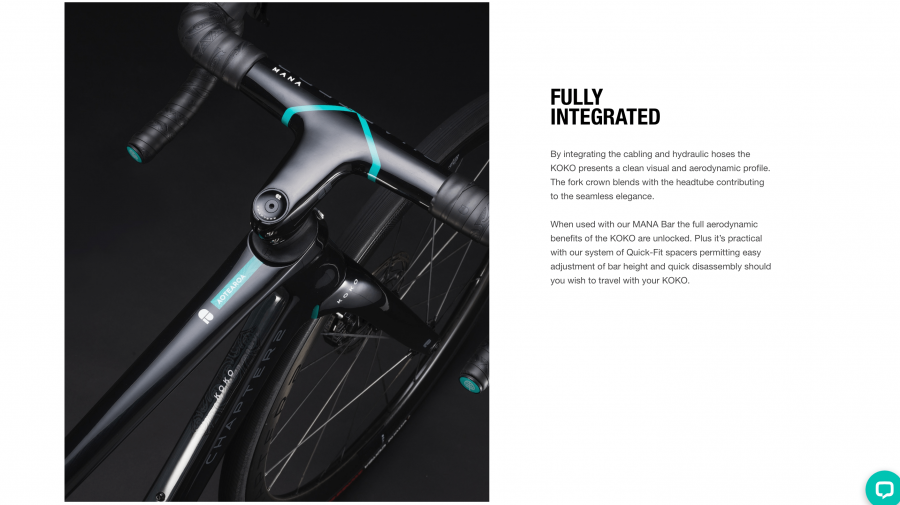

• Cable Integration: Improved Aerodynamics and Clean Aesthetic
• Adjustable Compliance: Tuneable Seatpost Flex for Added Compliance
• Rear Wheel Cut-out: Improved Aerodynamics
• Kamm-Tail: Aerodynamic and Stiffness where needed
• Up to 32mm Tire Clearance: Increased Tire Options
• T47 BB: Noise-free and Easy to Service
• Latex Mandrels: Improved Stiffness to Weight in Front Triangle
• Frameset Only: Bespoke & Personal

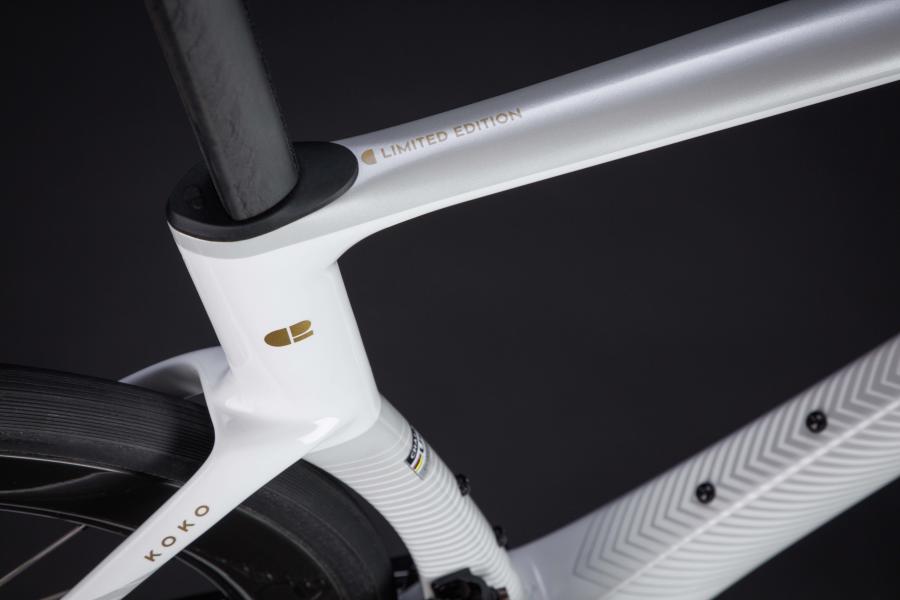

• Limited Edition: Exclusivity

Delivery Terms - For framesets available in WOW stock, delivery will be within 3-5 days. For framesets available in Chapter2 warehouse in Hong Kong, delivery will take maximum of 3 weeks. Price for Chapter2 framesets listed on WOW are inclusive of all duties, GST and delivery charges. Drop your enquiry on customer.service@worldofwheelz.in to order any frameset from Chapter2 warehouse.

Delivery Terms - For framesets available in WOW stock, delivery will be within 3-5 days. For framesets available in Chapter2 warehouse in Hong Kong, delivery will take maximum of 3 weeks. Price for Chapter2 framesets listed on WOW are inclusive of all duties, GST and delivery charges. Drop your enquiry on customer.service@worldofwheelz.in to order any frameset from Chapter2 warehouse.

Frame Specs:

• Carbon: 100% Made in Japan by Toray
• Frame 6 Sizes: XXS, XS, S, M, L & XL
• Fork Rakes (2): XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
• Frame Weight: 1139g Size M +/- 3%
• Fork: 420g Uncut +/- 3%
• Seatpost: 135g Size M +/- 3%
• Handlebar/Stem (MANA): 395g (100-420mm) +/- 3% (MANA Handlebar is Optional and Not Included with Frameset)
• Headset: 1.5” C2 Integrated System
• Mechanical & Electric Shifting: Versatile Groupset Options
• BB: Internal T47 (86.5)
• Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
• Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
• Tire Clearance: 32mm
• Brake Type: Disc Only
• Saddle Rail: 7mm Round & 7x9mm Oval
• Safety Standard: EN ISO 4210:2014
• UCI Accreditation: UCI Approved

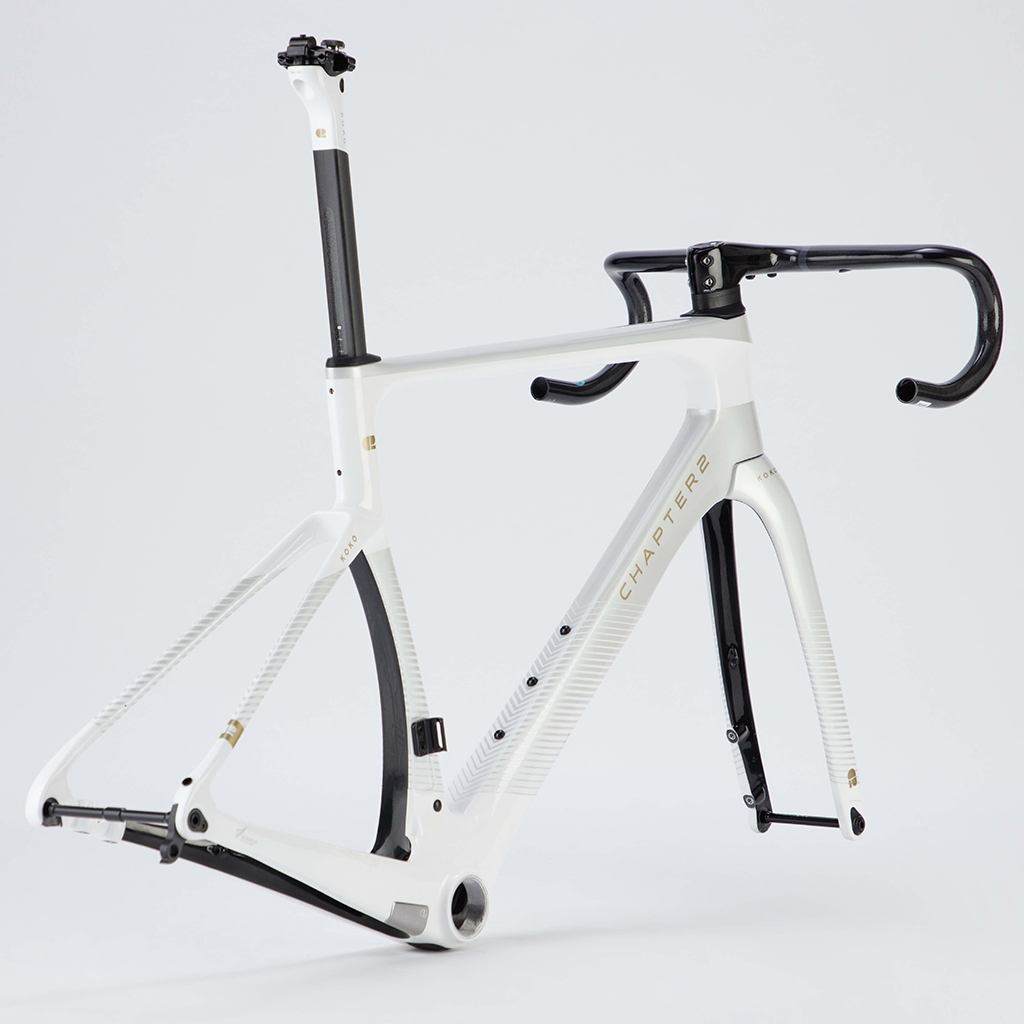

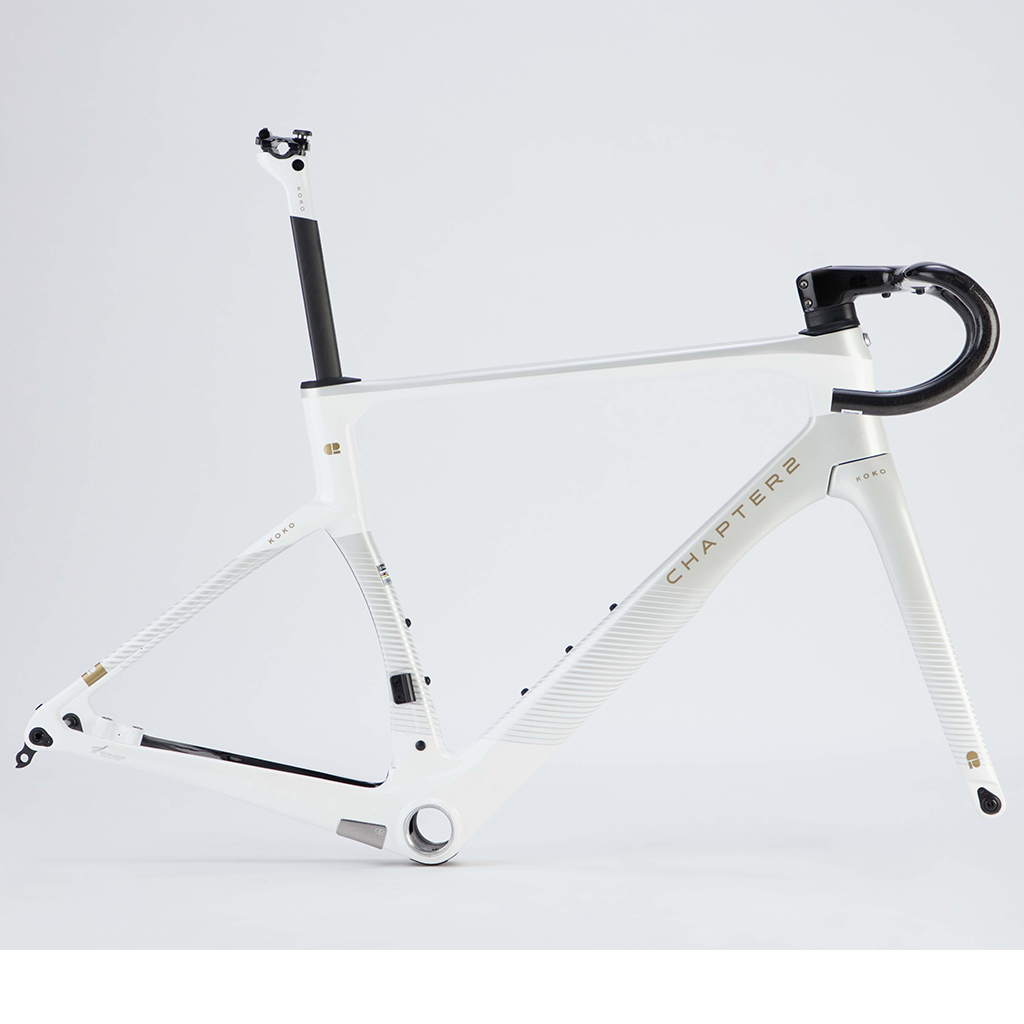

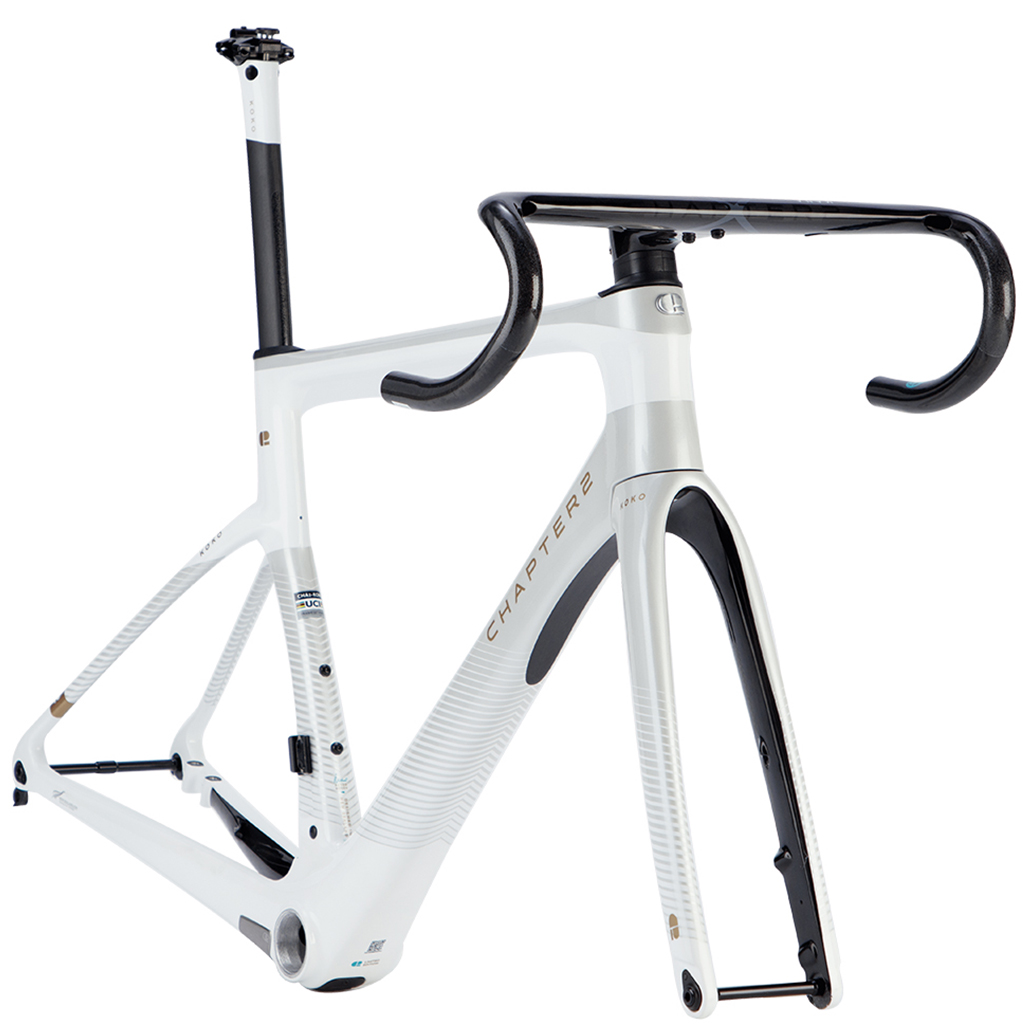

What you Get:

• Frame
• Fork
• Headset
• Seatpost
• Thru Axles
• Quick-Fit Spacers
• MANA Handlebar (Optional)

Torque Specs:

• Saddle Rail: 6Nm
• Seatclamp: 8-10Nm
• Stem (Steerer): 6Nm
• Stem (Handlebar): 6Nm
• Front Derailleur Hanger: 3Nm
• Rear Derailleur Hanger: 2Nm
• BB Cable Guide Cover: 1Nm
• Thru Axle: 10Nm
• Water Bottle Cage Bolts: 3Nm

Chapter2 Lifetime Warranty Policy:

All CHAPTER2 framesets (frame, forks, seatpost, and other parts provided with frame at time of purchase) and MANA Bar and associated parts are covered under our global lifetime warranty program. Your warranty period begins from the time of purchase.

CHAPTER2 warrants that your frame, fork, and/or seatpost and other parts supplied with the frame are free of any manufacturer’s defects and are only applicable to the original purchaser and may not be assigned.

This warranty only applies to CHAPTER2 products purchased from our website or from an authorised dealer or online store. This warranty commences from the date of purchase, is offered only to the original retail purchaser, and is not transferable.

Exceptions:

Consumable parts/accessories such as hangers, cable stops, seatclamps, saddle clamps, etc. are not covered under this warranty.

The paint and decals on your CHAPTER2 frame, fork, and/or seatpost and other CHAPTER2 branded parts/accessories are only covered for a period of 2 years from the time of purchase.

The warranty excludes damage whilst the frame, fork, and/or seatpost are being used on a stationary trainer.

Damage caused by abuse, misuse, improper assembly, rental, improper or insufficient maintenance, accident, impact, corrosion, use of aggressive cleaners, use with non-compatible components, improper repairs, and wear and tear is not covered under this warranty.

For complete details of Chapter2 Lifetime Warranty Policy, Click Here
